SEAT HEIGHT ADJUSTMENT
The seat height of this motorcycle
is adjustable for the rider’s physi-
cal size.
If higher seat height is required,
carry out the following proce-
dures.

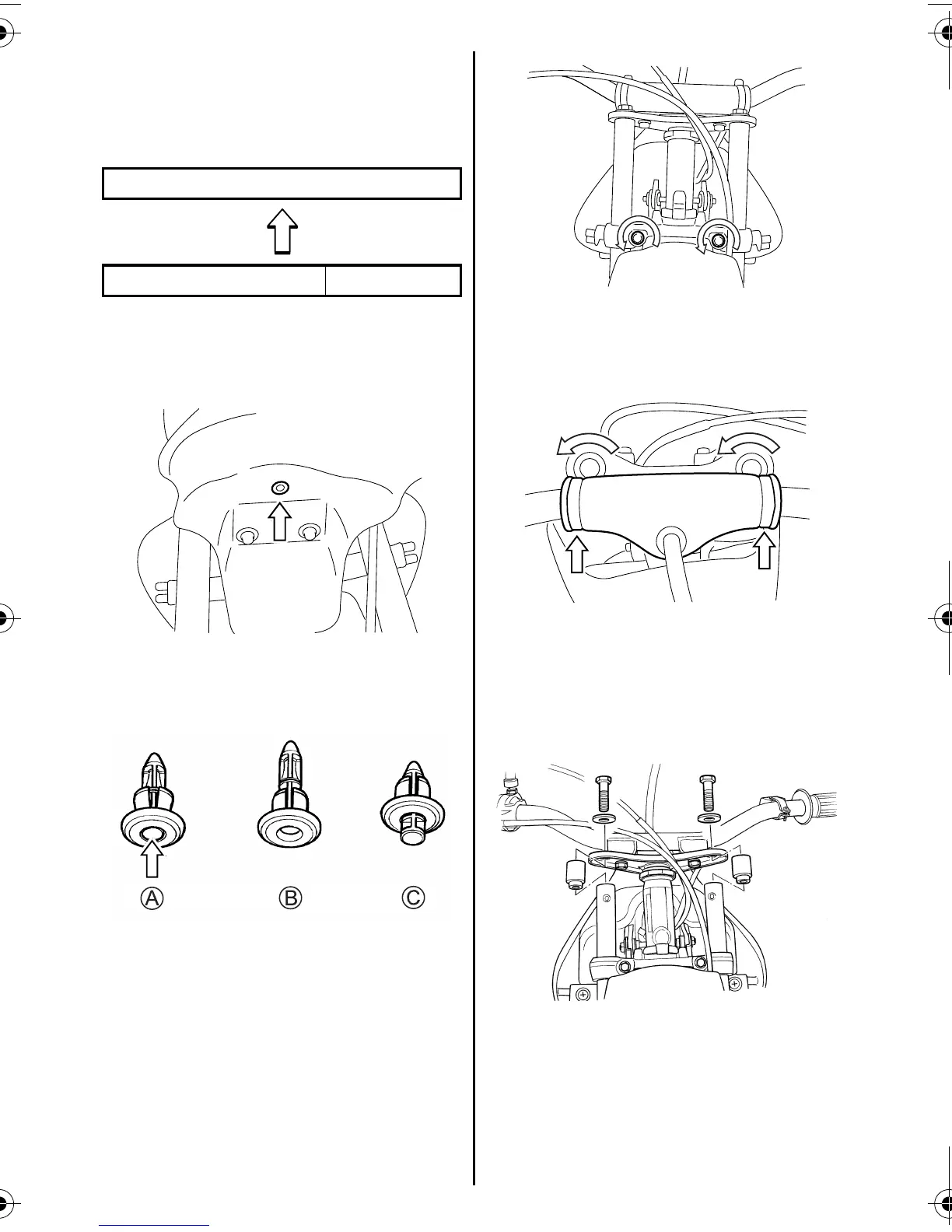

1. Remove the fastener and take
off the front number plate.
NOTE: To remove the fastener,
push in the center pin as B and
pull out the fastener. To install the
fastener, pull the center pin as C
and fix the fastener by pushing
the center pin as A.
2. Loosen the front fork lower
clamp bolts.
3. Remove the two clamps and
handlebar cover. Remove the
upper bracket bolts and pull
both forks downward.
4. Locate the right-side and left-
side spacers as shown above
and replace the bolts with
longer ones.
25 mm (1.0 in) higher
STANDARD SETTING 0 mm
JR50_03A.book Page 13 Tuesday, April 12, 2005 5:06 PM

Suzuki JR50 Specifications

General

Engine Type	2-stroke, air-cooled, single cylinder
Displacement	49cc
Bore x Stroke	41.0 mm x 37.8 mm
Compression Ratio	6.6:1
Fuel System	Carburetor
Ignition	CDI
Starting System	Kick
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Seat Height	560 mm (22.0 in)
Ground Clearance	135 mm (5.3 in)
Front Suspension	Telescopic
Rear Suspension	Swingarm
Tires Front	2.50-10
Tires Rear	2.50-10
