UP
OUTSIDE
UP

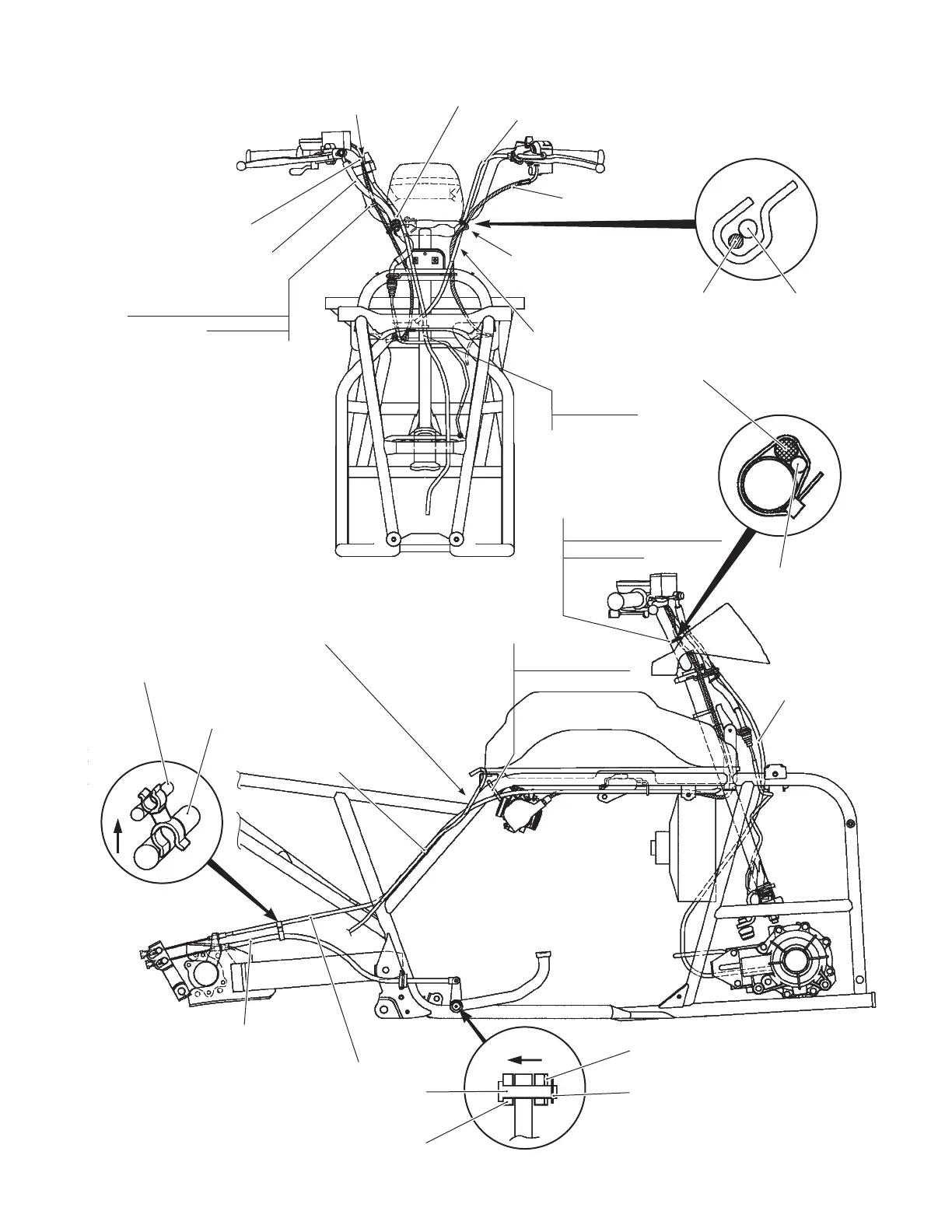

Transfer cable (LT-A400F)
Pass the starter cable
and parking brake cable
through the guide.
Clamp (LT-A400F)
Clamp
Throttle cable
Front brake switch lead wire
Transfer cable
Starter cable
Starter cable
Parking brake cable
Parking brake
Throttle cable
Front brake
switch lead wire
Washer
Cotter pin
Transfer cable
(LT-A400F)
Clamp
Clamp
Clamp
Throttle cable
Rear brake cable
Pass the breather hose outside of the cable.
Rear brake cable
Rear brake cable
Pin
Parking brake cable
Parking brake cable
Parking brake cable
Front brake switch lead wire
Pass the starter cable in front of the wiring harness.
Throttle cable
Front brake hose
Pass the throttle cable through the
concave of transfer lever bracket. (LT-A400F)
