5-37
FUSE LIST
• 30A MAIN fuse protects all electri-
cal circuits.
• 10A HEAD-HI fuse protects the
headlight high beam and speed-
ometer light.
• 10A HEAD-LO fuse protects the
headlight low beam.
• 10A FUEL fuse protects the fuel
injection system and fuel pump.
• 15A IGNITION fuse protects the
differential gear lock relay, drive
relay, 2WD/4WD motor, horn,
starter relay, ignition coil, speed-
ometer light and brake light.
• 15A FAN fuse protects the cooling
fan.
• 10A P-SOURCE fuse protects the
output terminal.

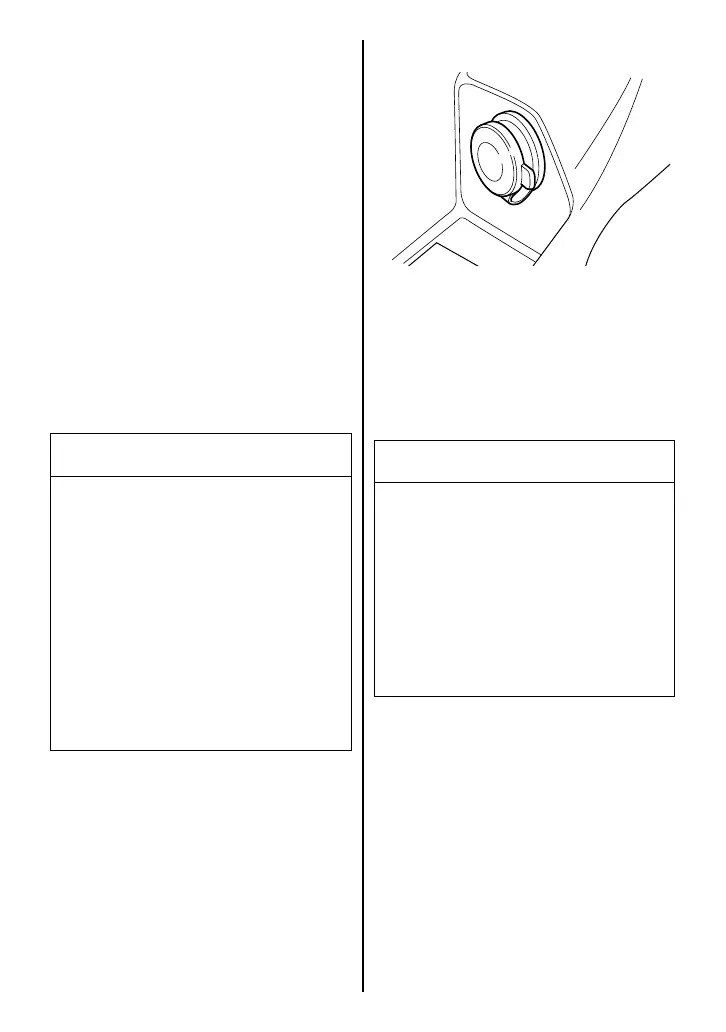

OUTPUT TERMINAL
This vehicle has an output terminal for
attaching 12V electrical accessories.
Total electrical accessory wattage
should be less than 120W. Check
electrical accessory voltage and watt-
age before attaching accessories to
the output terminal.
CAUTION
Failure to install the correct fuse
can damage your ATV.
Installing a fuse of incorrect rating
or using aluminum foil or wire
instead of a fuse may seriously
damage the electrical system.
Always replace a blown fuse with
a fuse of the same type and rating.
If the new fuse blows in a short
time, consult your Suzuki dealer
immediately.
CAUTION
Using improper electrical acces-
sories can damage your ATV.
Exceeding 120W or using other
than 12V accessory can seriously
damage the electrical system and
accessory.
Check voltage and wattage before
connecting electrical accessories.
