3. SETTINGS AND ADJUSTMENTS
30

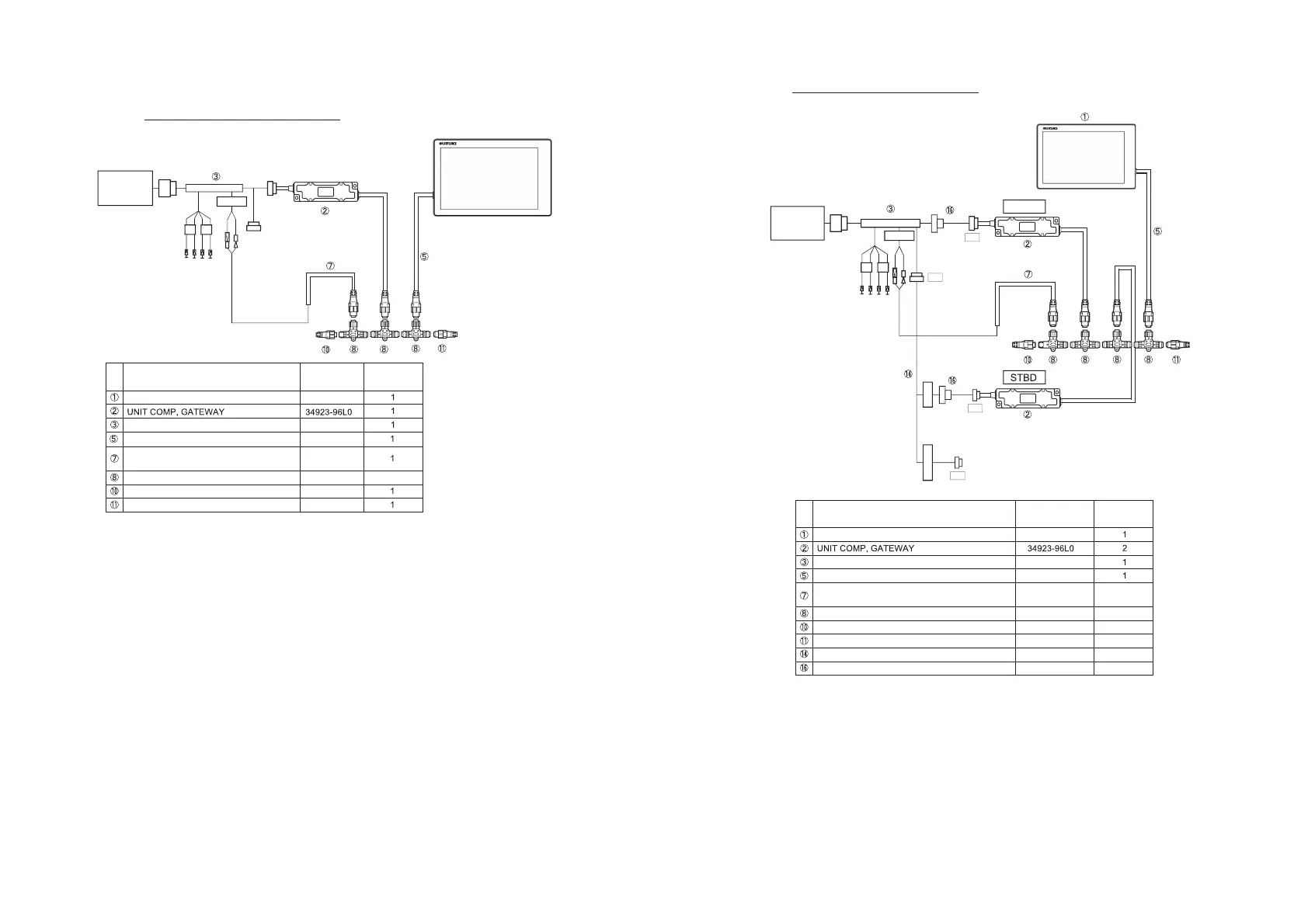

3.5.2 Connection of SUZUKI Precision Control System
The single station of single engine
No. Part Names Part No.
Additional
Quantity

ADAPTER COMP, GAUGE
36661-96L2

HARNESS ASSY, NETWORK POWER
36663-88L0

CONNECTOR COMP, BRANCH
36664-88L0

UNIT COMP, RESISTOR FEMALE
36665-88L0

UNIT COMP, RESISTOR MALE
36665-88L1

NMEA PWR
TO BCM
HARNESS
R
B
L
B
12


WIRE COMP, EXTENSION (0.6 m)
36662-88L1

34900-98L
DISPLAY ASSY,MULTI
36663-88L2 
*3
*3: With CONNECTOR COMP, BRANCH : Q'ty 1
3
3. SETTINGS AND ADJUSTMENTS
31
The single station of dual engine
No. Part Names Part No.
Additional
Quantity
HARNESS ASSY, NETWORK POWER
36663-88L0

1
CONNECTOR COMP, BRANCH
36664-88L0

4
UNIT COMP, RESISTOR FEMALE
36665-88L0

1
UNIT COMP, RESISTOR MALE
36665-88L1

1
WIRE COMP, GAUGE ADAPTER
36667-96L0

1
TO BCM
HARNESS
NMEA PWR
8P
6P
8P
R
B
L
B
12
PORT
CENTER STBD

ADAPTER COMP, GAUGE
36661-96L2

WIRE COMP, DUAL GAUGE EXT (0.6 m)
36667-96L2

–
WIRE COMP, EXTENSION (0.6 m)
36662-88L1

*4
*4
DISPLAY ASSY,MULTI* *
*4
34900-98L
*3: With CONNECTOR COMP, BRANCH : Q'ty 1
*4:
⑯
WIRE COMP, DUAL GAUGE EXT (0.6m) Option.
36663-88L2 
*3
8P
