8-4
EMERGENCY SERVICE
83RM0-01E
4) Remove the wheel bolts and wheel.
61MM0A209

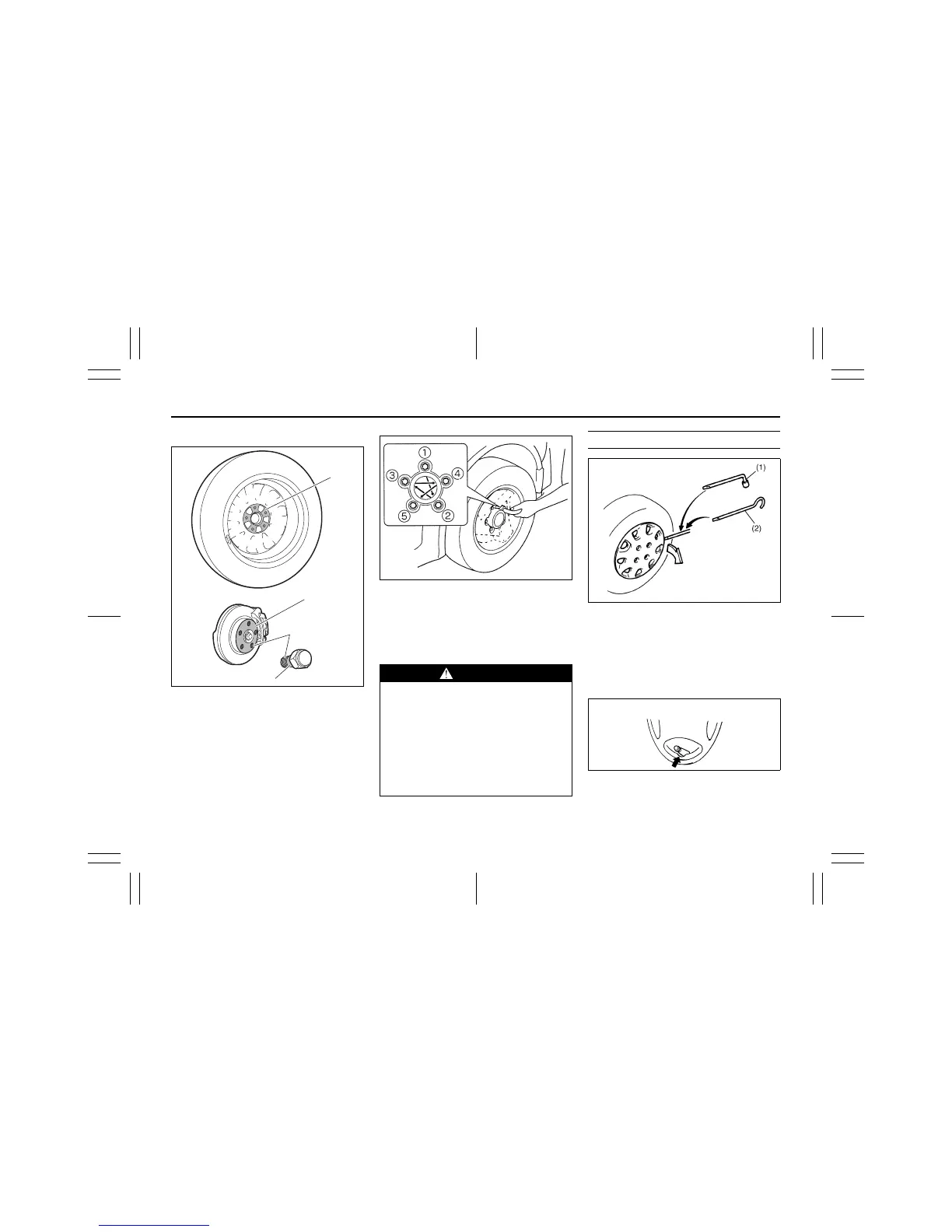

5) Before installing the new wheel, clean
any mud or dirt off from the surface of
the wheel (1), hub (2), thread part (3)
and surface of the wheel bolts (4) with a
clean cloth. Clean the hub carefully; it
may be hot from driving.
6) Install the new wheel and replace the
wheel bolts with their cone shaped end
facing the wheel. Tighten each bolt
snugly by hand until the wheel is
securely seated on the hub.
81A057
Tightening torque for wheel bolt
100 Nm (10.2 kg-m, 74.0 lb-ft)
7) Lower the jack and fully tighten the
bolts in a crisscross fashion with a
wrench as shown in the illustration.
Full Wheel Cover (if equipped)
60G309
(1) or (2) Flat end tool
Your vehicle includes two tools, a wheel
brace and a jack crank, one of which has a
flat end.
Use the tool with the flat end to remove the
full wheel cap, as shown above.
54G117
When installing the cover, make sure that it
is positioned so that it does not cover or
foul the air valve.
WARNING
Use genuine wheel bolts and tighten
them to the specified torque as soon
as possible after changing wheels.
Incorrect wheel bolts or improperly
tightened wheel bolts may come
loose or fall off, which can result in
an accident. If you do not have a
torque wrench, have the wheel bolt
torque checked by an authorized
SUZUKI dealer.
