13-1

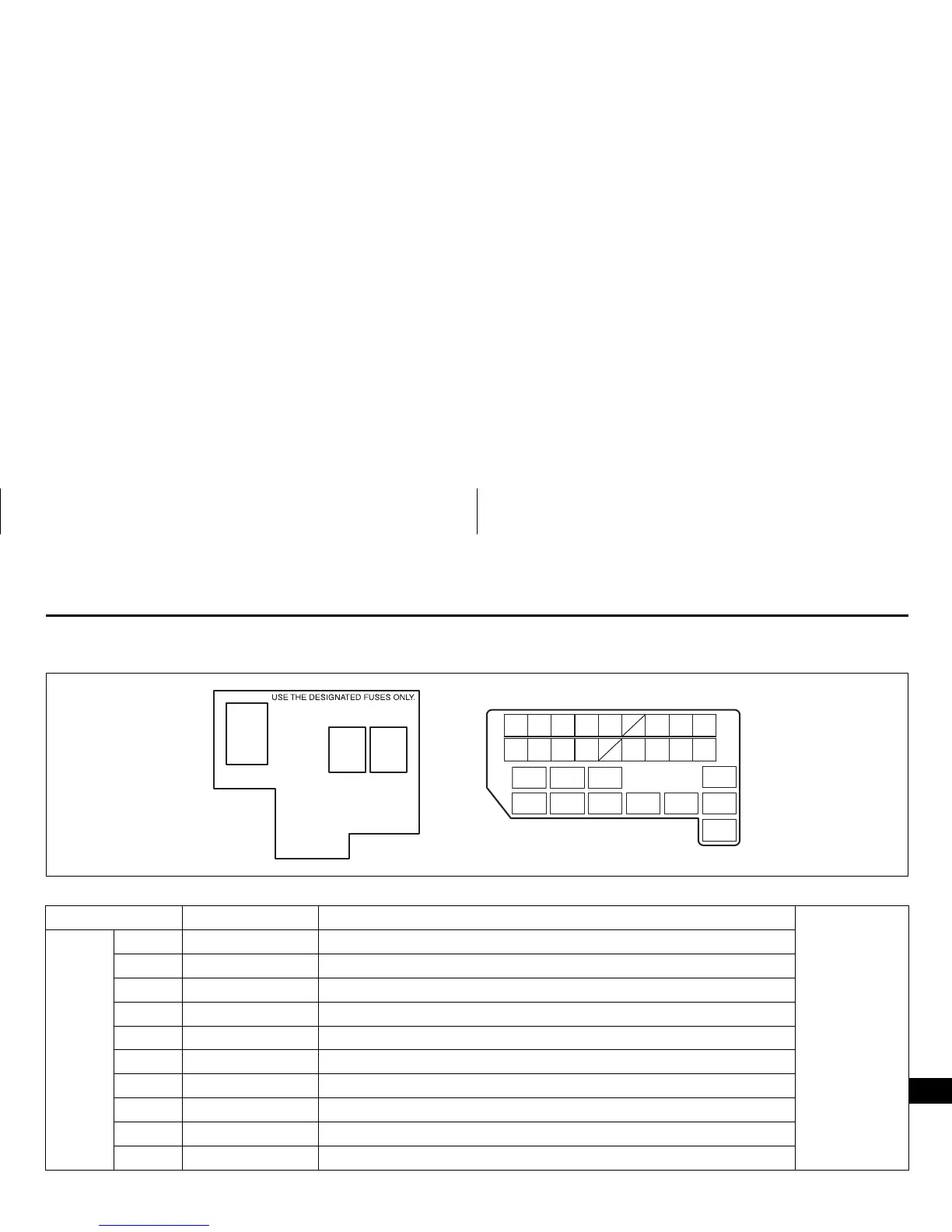

FUSES AND PROTECTED CIRCUITS
80J21-03E
13
FUSES AND PROTECTED CIRCUITS
80J101
COLOR/SIZE (AMPS)
PROTECTED CIRCUIT
In engine
compartment
MAIN
FUSE
BOX
(1) BLACK (80) All electric load
(2) RED (50) Power window, Ignition, Wiper, Starter
(3) RED (50) Tail light, Rear defogger, Door lock, Hazard/Horn, Dome
(4) – Blank
(5) – Blank
(6) BLUE (15) Head light (Right) fuse
(7) BLUE (15) Head light (Left) fuse
(8) YELLOW (20) Front fog light fuse
(9) – Blank
(10) GREEN (40) ABS control module fuse
(1)
(2) (3)
(28)
(27)(26)(25)
(6) (7) (9) (11)
(15) (16) (17) (18) (19)
(24)
(8)(4) (5) (10)
(22)(21)
(23)
(20)
(12) (13) (14)
(30)
(29)
Fuses and Protected Circuits: 7
