INSTRUMENT PANEL
80J21-03E

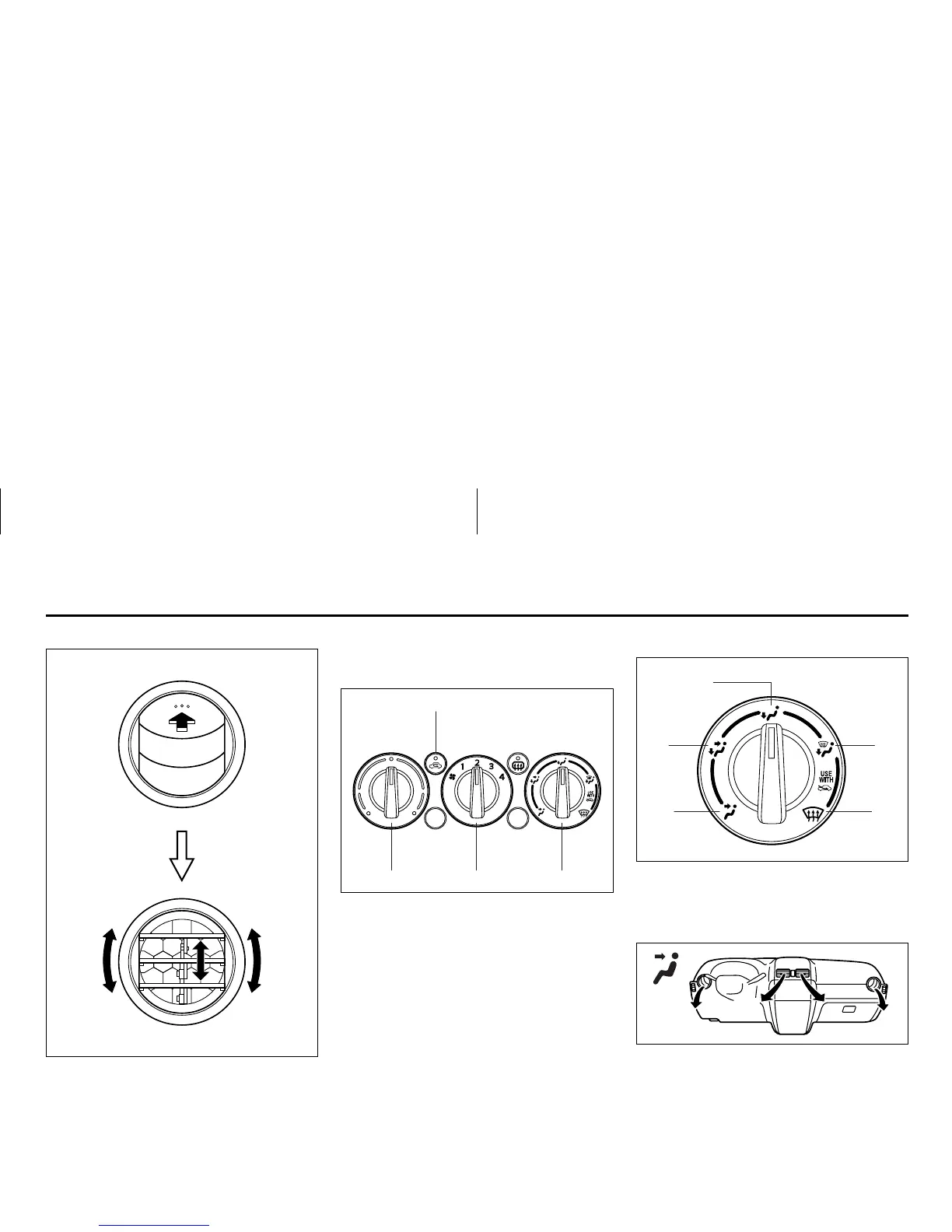

Side outlet
63J045
When “Open”, air comes out regardless of
the air flow selector position.
Heating System
Description of Controls
63J193
Temperature selector (1)
This is used to select the temperature by
turning the selector.
Blower speed selector (2)
This is used to turn on the blower and to
select blower speed by turning the selec-
tor.
Air flow selector (3)
63J048
This is used to select one of the functions
described below.
Ventilation (a)
79J065
Temperature-controlled air comes out of
the center and side air outlets.
(1) (2) (3)
(4)
(a)
(b)
(e)
(d)
(c)
Heating and Air Conditioning System: 4
