7-47

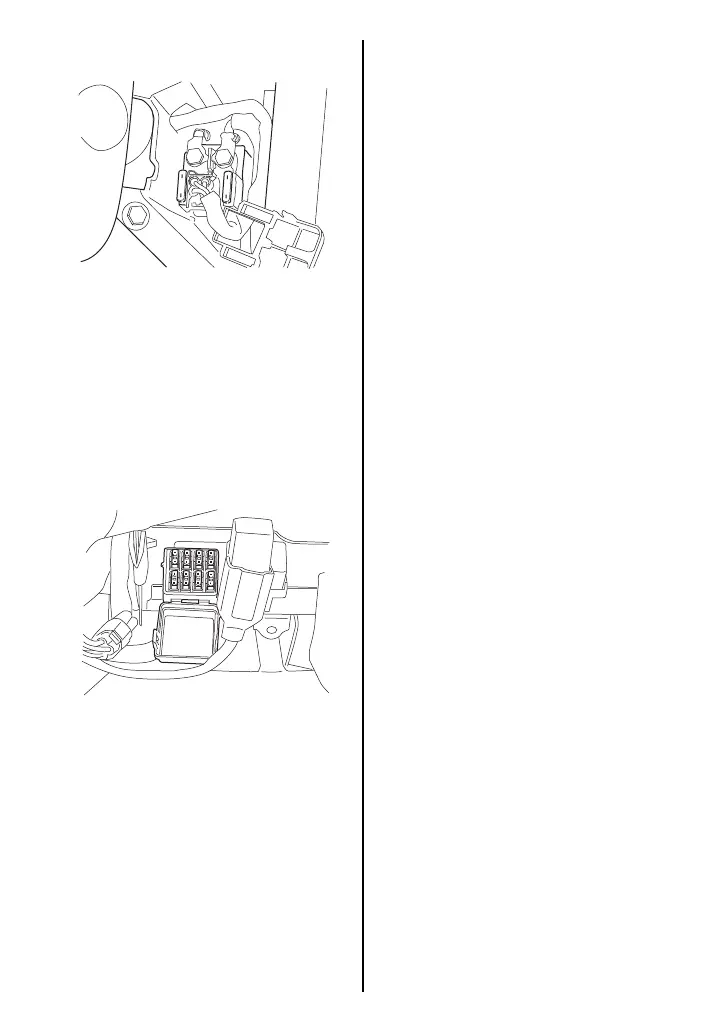

MAIN FUSE
The main fuse is located under
the front seat. To access the fuse,
remove the seat by referring to
the BATTERY section.
One 30A spare fuse is located in
the fuse box.
FUSES
The fuses are located behind the
left crank case cover. To access
the fuses, remove the left crank
case cover referring to the
ENGINE COOLANT section.
Two spare fuses (one 10A and
one 20A) are provided inside the
fuse box.
FUSE LIST
• 30A MAIN fuse protects all
electrical circuits.
• 10A HEAD-HI fuse protects
the speedometer and head-
light high beam.
• 10A HEAD-LO fuse protects
the headlight low beam.
• 10A FUEL fuse protects the
ECM, fuel pump, injectors and
speedometer.
• 20A IGNITION fuse protects
the *oxygen sensor, sole-
noids, ECM, fuel pump relay,
fan motor relay, starter relay,
ignition coils, *canister purge
solenoid, headlight relay and
side stand relay.
• 10A SIGNAL fuse protects the
horn, speedometer, pilot lamp,
stop lamp, running lamp and
resister.
• 10A POWER SOURCE fuse
protects the electrical acces-
sories connected to output ter-
minal.
* California
30
30

Suzuki VL800 Specifications

General

Engine Type	4-stroke, liquid-cooled, SOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc brake
Rear Brakes	Drum brake
Wheelbase	1, 655 mm (65.2 in)
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Front Tire	130/90-16M/C 67H
Rear Tire	170/80-15M/C 77H
Overall Height	1, 110 mm (43.7 in)
