10
Suggested Settings
ACTIVE:
FRETLESS PASSIVE:
PASSIVE:
Block Diagram
See page 48.

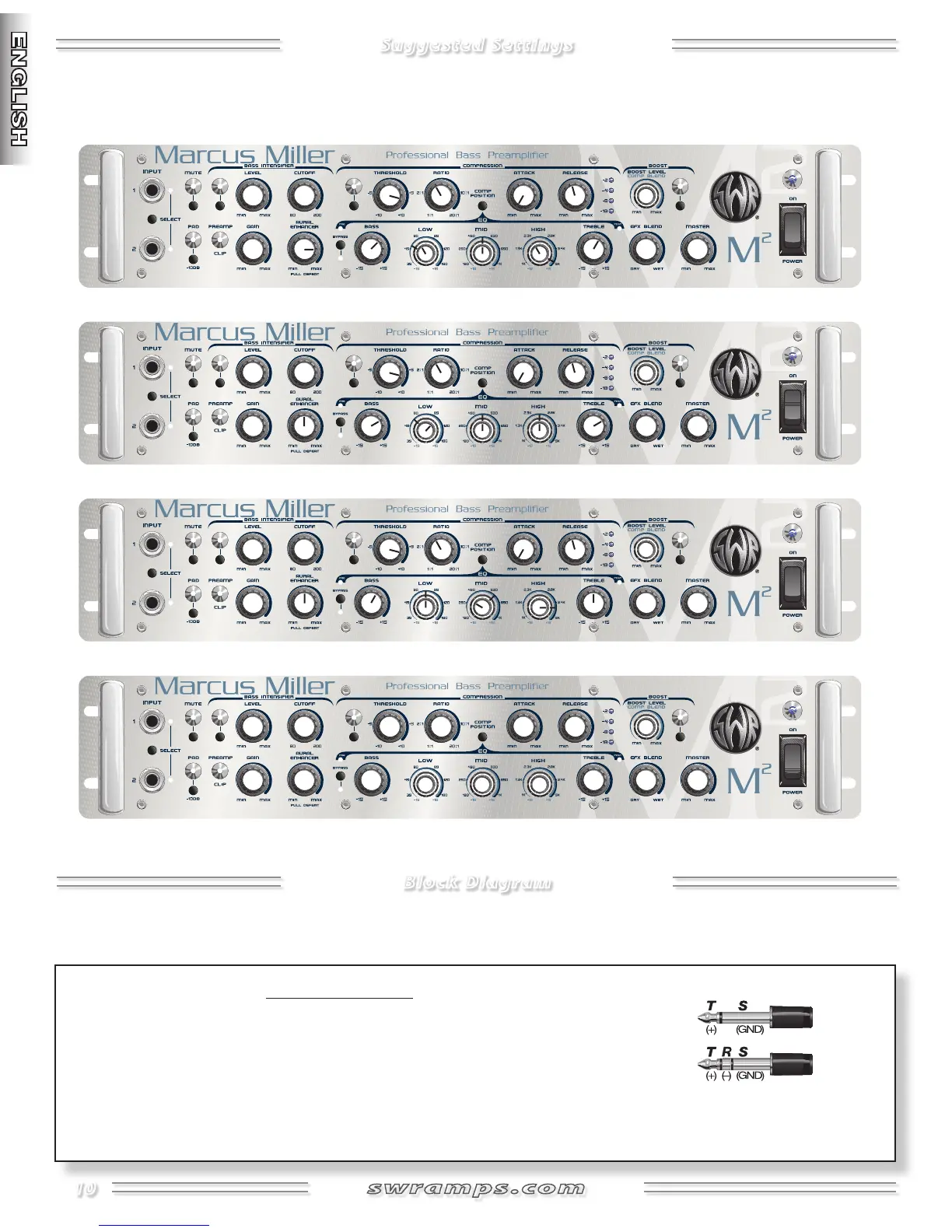

The following EQ settings are recommended by Marcus Miller for various Fender Jazz Bass types. Compression settings are
optional. The remaining controls are left blank for your notations as well as one completely blank panel for your use.
1
TRS Balanced Jacks
NOTE: The rear panel 1/4" jacks {AA, CC, FF, and JJ} are balanced TRS (Tip/Ring/Sleeve)
types and are designed to work best with TRS (Tip/Ring/Sleeve) plugs:
Tip=positive (+)
Ring=negative () and
Sleeve=ground.
While standard shielded TS "mono" guitar cables may certainly be used, the use of "stereo" TRS cables may improve signal-to-noise ratio
and/or reduce hum, especially when longer cables are used.
_____________________:
