SYM 5. REMOVAL OF ENGINE
5-3
ENGINE REMOVAL

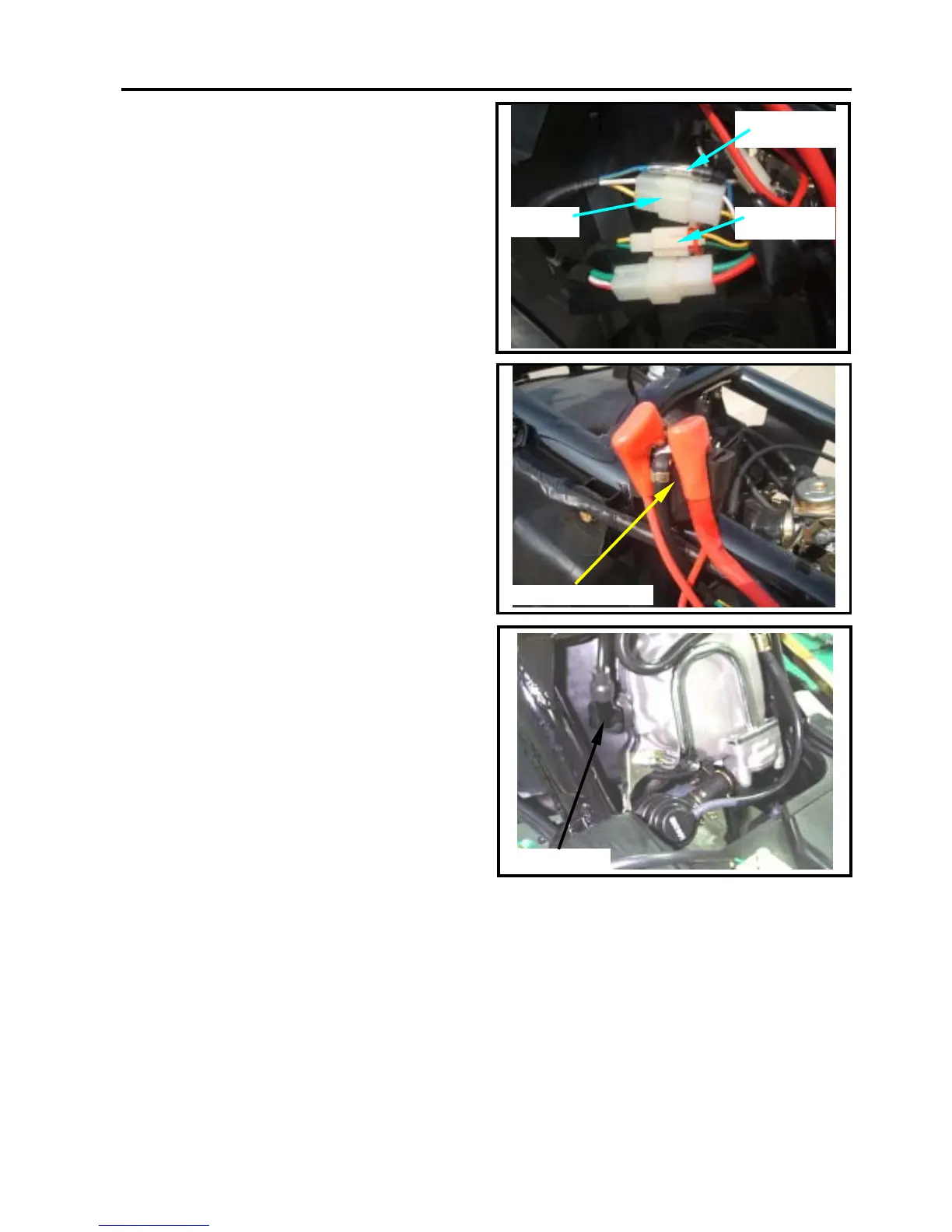

Open the seat.
Remove the luggage box assembly (6
bolts ).
Disconnect the engine start control switch
connector.
Remove the power connector of auto by-
start.
Remove the generator wire and pulse
generator connector.
Remove the starter motor wire on the Starter
magnetic switch.
Remove the spark plug.
Spark plug
Starter magnetic switch
Auto by-start
connector
G
enerato
r
connector
pulse generator
connector
