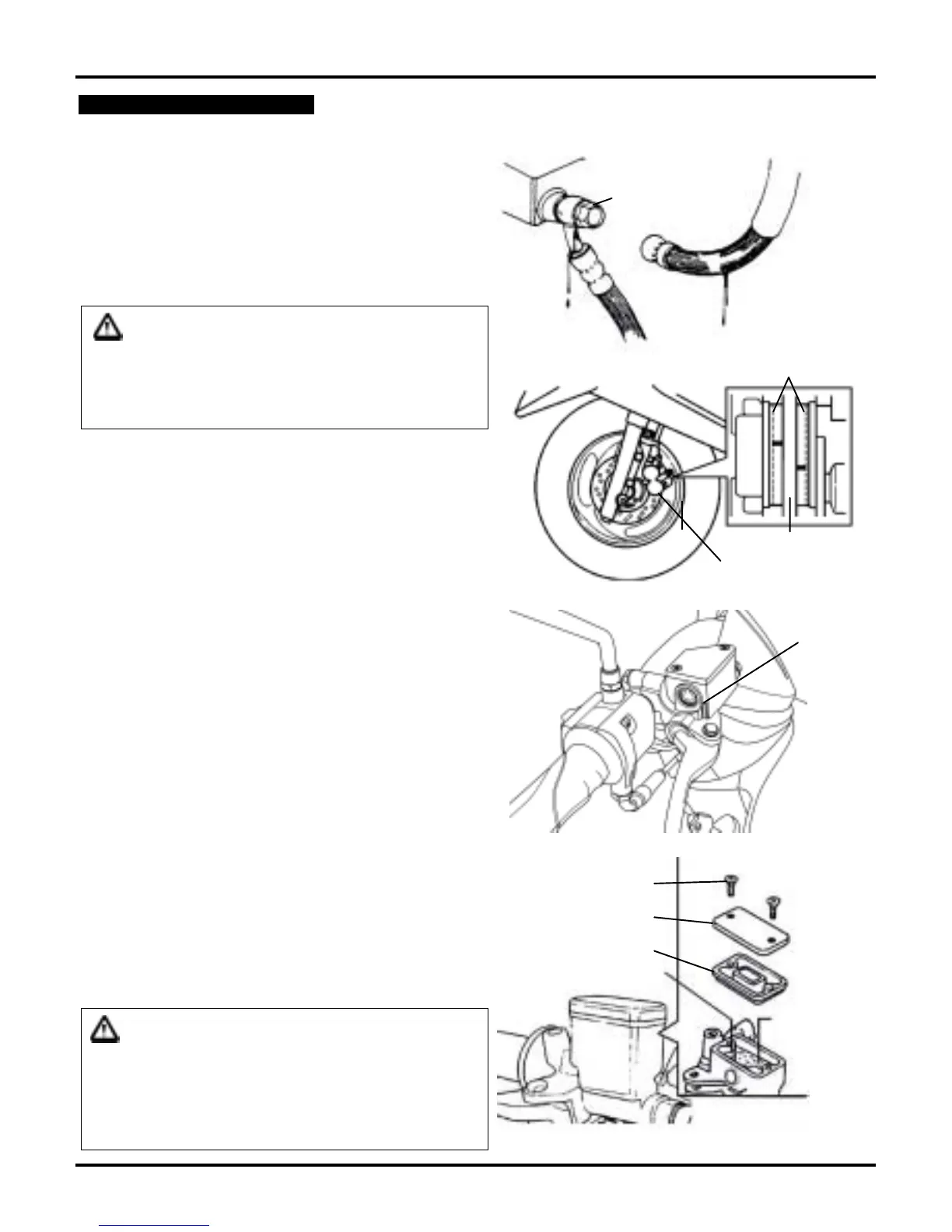

8. INSPECTION AND MAINTENANCE BEFORE RIDING
16
DISK BRAKE INSPECTION
(Applicable for model equipped with disc brake.)
(Leak, damaged, looseness of brake line)
Visual check brake lines for leakage, or damage,
check brake lines connections for looseness using a
wrench or similar tool, and check whether steering
handle vibration in riding, or any parts' interference
may have damage the brake lines. If so, bring your
scooter to your SANYANG dealer for repairing or
service.
CAUTION：
Please ride your scooter on a dry road surface slowly
and operate front and rear brakes in order to find out
if there is any malfunction so as to ensure the scooter
is at its optimum condition and safe to ride.
﹙Checking front brake lining﹚
Check the brake from behind the brake caliper. The
brake pad must be replaced with new lining when the
brake pad wear limit reaches the brake disk.
﹙Checking oil quantity in brake oil reservoir﹚
Park the scooter on a level ground, and check if fluid
level is under the “LOWER” mark.
Recommended
Brake Fluid：WELL RUN BRAKE OIL (DOT 3).
﹙Replenishment of front wheel brake fluid﹚
1. Loosen the screws and remove the master cylinder
cover.
2. Wipe clean foreign materials , dirt around the
reservoir, being careful not to let foreign materials
fall into the reservoir.
3. Remove the diaphragm plate and the diaphragm.
4. Add brake fluid to upper level.
5. Install the diaphragm plate and the diaphragm, and
install the master cylinder cover.
6. Please note the diaphragm direction, and do not let
foreign materials fall into the reservoir.
And tighten the master cylinder cover securely.
CAUTION：
To prevent chemical reaction, please do not use
brake fluids other than those recommended.
Do not fill above the upper limit when adding
brake fluid and avoid dropping on painting or
plastic components to prevent damage.
Upper
Brake fluid
Diaphragm
Master cylinder cover
Screw
Hose connection
Brake pad wear limit grooves
Brake caliper
Brake disk
Lower
limit
