6
7.USE OF EACH COMPONENT
(The following is SYM 4 stroke air-cooling scooter’s basic operation, and they could vary from
different individual models. Please consult the end of this manual.)

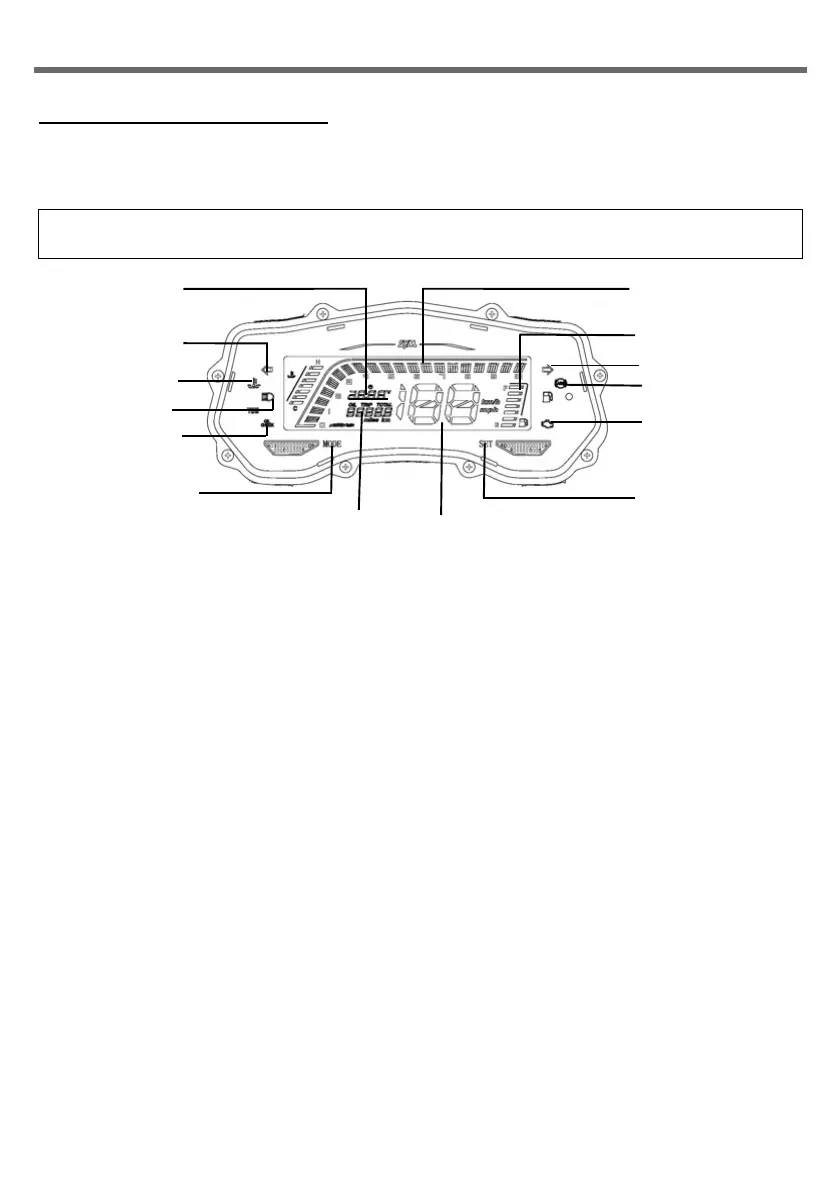

§GAUGES §
The panel figure for speedometer may vary from model to model, but the location usually are the
same.
Speedometer：
Indicates driving speed.
Odometer：
Indicates total accumulated distance traveled.
High Beam Indicator：
This indicator comes on with high beam headlight is turned on.
Turn (left/right) Signal Indicator：
The left or right Indicator will be flashing according to the operated directions of turn signal light switch
when it is turned on.
ABS indicator light:
Normally the ABS indicator light goes on when the ignition switch is turned on and goes off shortly
after the scooter starts moving.
The ABS (Anti-lock Brake System) indicator light goes on when the ignition switch is turned on and goes
off shortly after the scooter starts moving. If the ABS is normal, it stays off. If something is wrong with the
ABS, the indicator goes on and stays on. When the indicator light is on, the ABS does not function but if
the ABS fails, the conventional brake system will still work normally.
Fault indicator light
If there is something wrong with the ECU, the warning light will light all the time.
Cooling temperature indicator:
Indicates the engine cooling water temperature, engine cooling water temperature indicator if light, should
check the cooling water is sufficient and the fan motor is running
Low fuel load warning light:
When there is a little fuel inside the tank, the warning light will be on.
Odometer
Speedometer
High Beam Indicator
Fault indicator light
Tachometer
Turn Left Signal Indicator
Turn Right Signal Indicator
Cooling temperature
Engine oil replacement
warning lamp
Voltmeter/time
Fuel meter
