5. REMOVAL OF ENGINE SYM
5-4

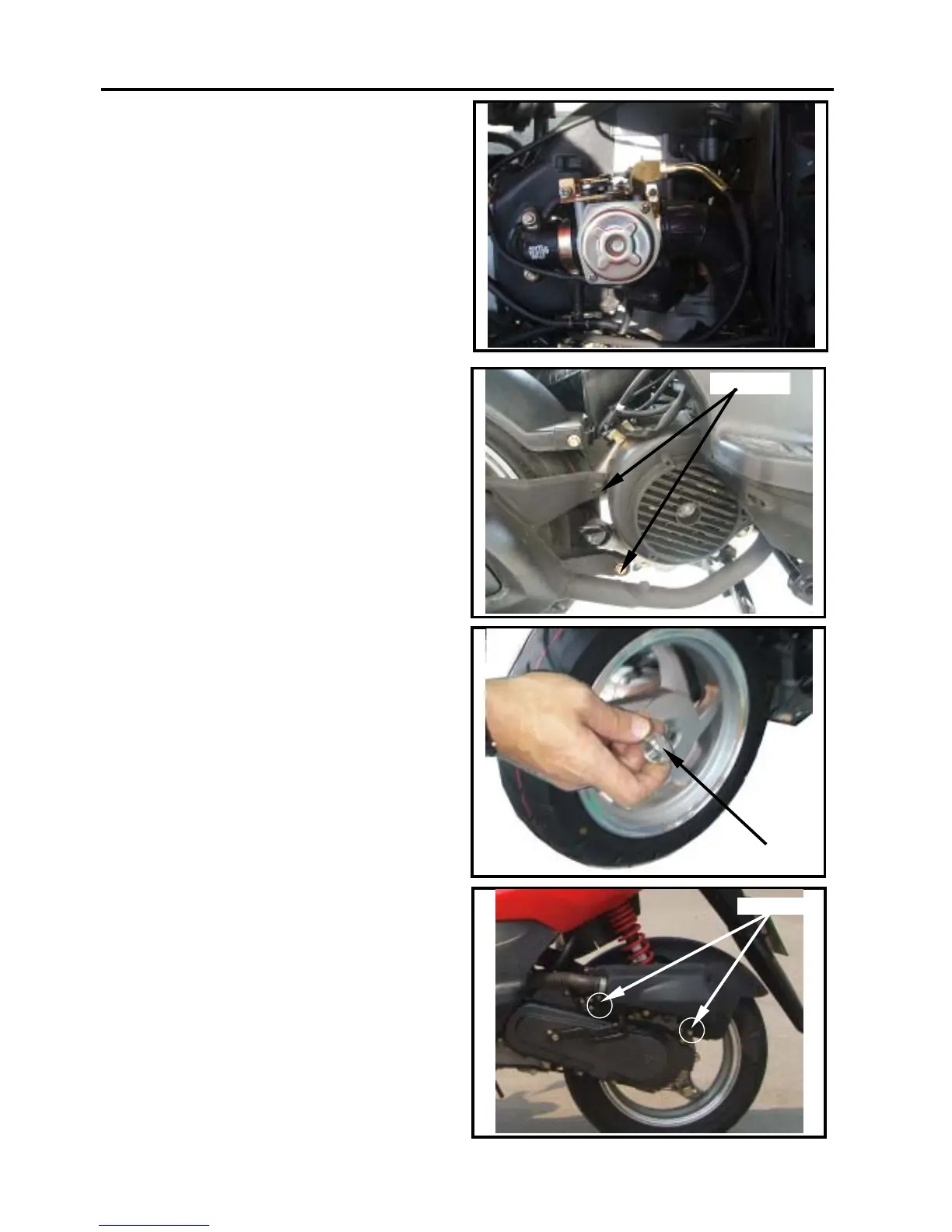

Remove the fuel pipe, vacuum hose, and
throttle valve cable from the carburetor.
Loose the strap screw of the air cleaner
guide, and remove the air cleaner guide.
Remove the exhaust muffler (Bolts ×
2, Nuts × 2).
Remove the rear wheel (Nut × 1).
Remove the air cleaner connection bolts (2
bolts).
2 bolts
Bolts×2
Nut ×1
To Next Page
