SYM 5. REMOVAL OF ENGINE
5-5

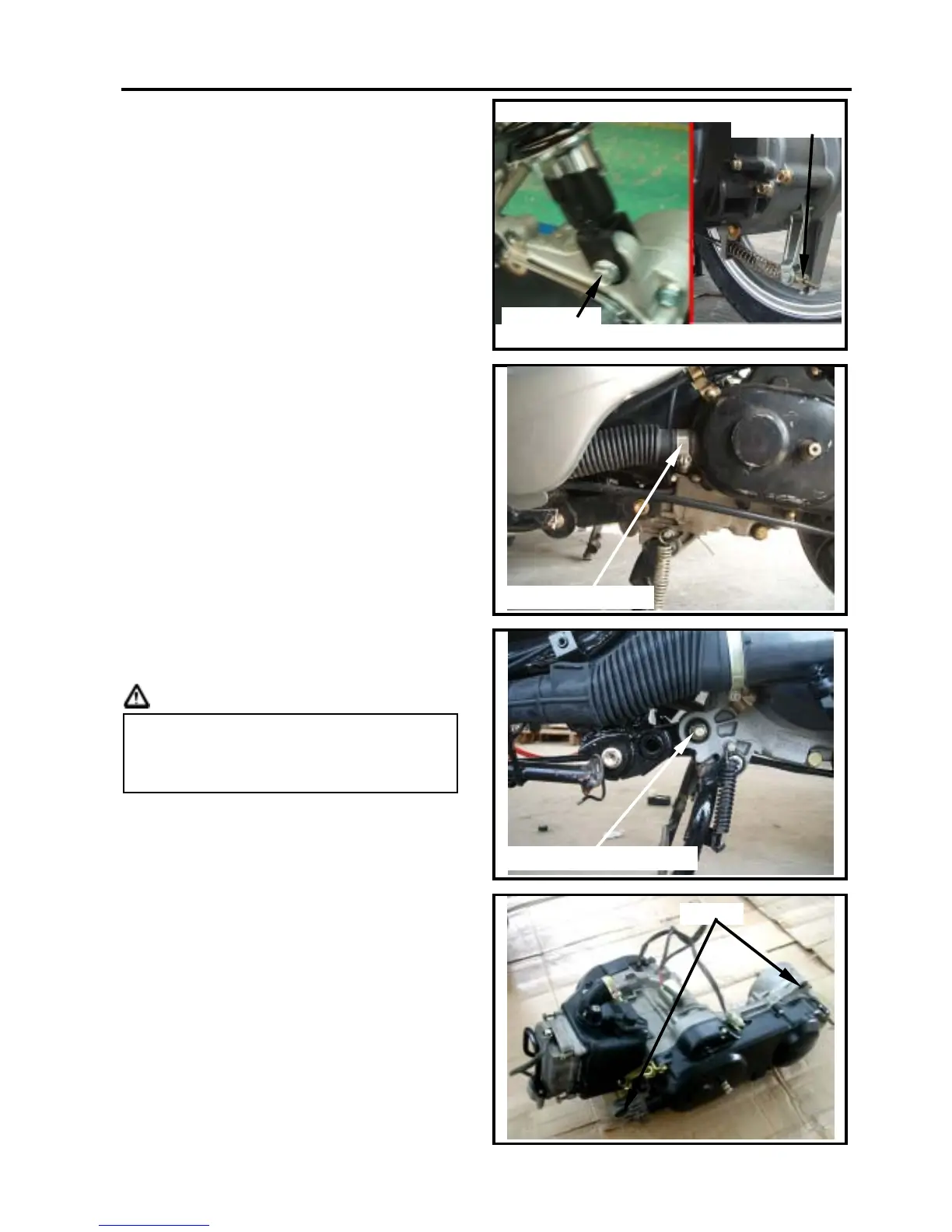

Remove the rear brake cable nut.
Remove the rear brake cable.
Remove the rear shock absorber lower bolt.
Loose the strap screw of engine left guide,
and then remove the engine left guide.
Remove the engine suspension nut and bolt
(engine side), and then remove the engine.
Caution
Check if the engine suspension, rear shock
absorber bushing, and cushion rubber for
damage. Replace them with new ones if so.
With a bracket to support the engine
to prevent from it damage by falling
down as removing the engine.
Engine suspension bolt/nut
Bushing
Strap screw of guide
Brake cable nut
Rear shock
absorber bolt
