Important! Switch the machine off when you:
• e.g. carry out cleaning or maintenance work, or convert the machine to
another function
• store it in a suitable room to avoid any unauthorised use of the unit
• leave it standing without supervision
To do so, disconnect the power supply cord from the wall socket and stop the
machine from rolling away (e.g. by fixing a wedge).
Store the machine in a dry, dust-free room with a corrosion-free atmosphere.
The temperature must not fall below +10 °C or exceed +35 °C. Low
temperatures, damp and dust can significantly reduce the service life of the
electrical components.
EU Declaration of Conformity
We
JohnsonDiversey Switzerland
CH-9542 Münchwilen
hereby declare that the product described below both in this basic design and
construction and in the version marketed by us conforms to the relevant safety-
and health-related requirements of the appropriate EU Directive.
This declaration shall cease to be valid if modifications are made to the product
without our approval.
Applicable EU Directives:
Machinery Directive (98/37/EEC) in version 98/79/EEC
EMC (Electro Magnetic Compatibility) (89/336/EEC) in version 98/13/EEC
Harmonised standards applied:
EN 60 335-1/EN 60 335-1-A1/EN 60 335-1-A2/EN 60 335-1-A11/
EN 60 335-1-A12/EN 60 335-1-A13/EN 60 335-1-A14/EN 60 335-1-A15/
EN 60 335-1-A16/EN 60 335-2-72/EN 60 335-2-72-A1/EN 55014-1/
EN 55014-1-A1/EN 55014-2/EN 55014-2-A1/EN 61 000-3-2/
EN 61 000-3-3/EN 61 000-3-3-A1
It is ensured through internal measures that series-production units conform at
all times to the requirements of current EU Directives and relevant standards
The signatories act on behalf of company management and with full power of
attorney.

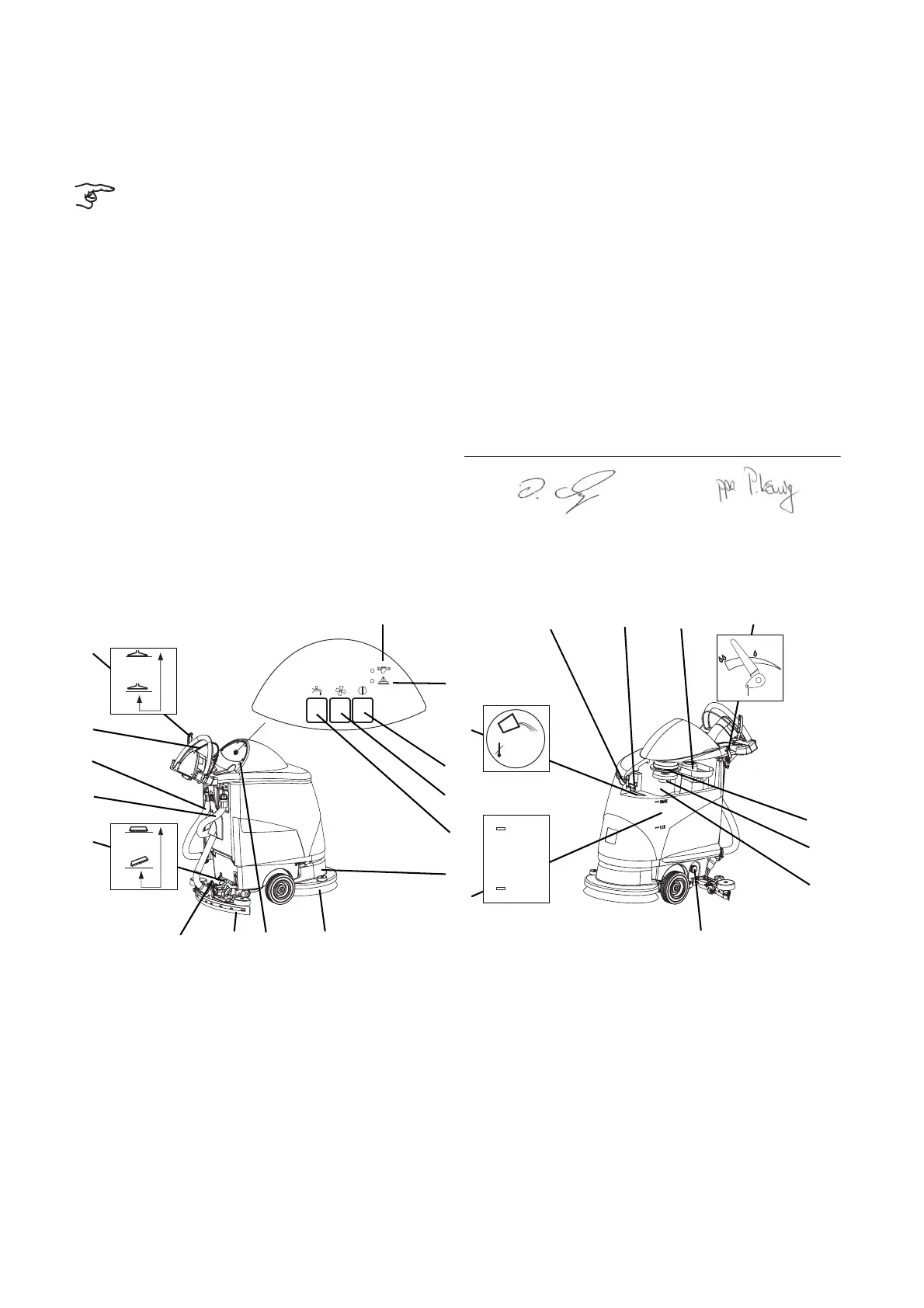

Overview
1 Squeegee lowering device
2 Switch brushdrive
3 Emptying hose for solution tank (blue cap)
4 Emptying hose for recovery tank (red cap)
5 Pedal brush unit
6 Squeegee settings
7 Squeegee
8 Hour counter (optional)
9 Tools (brush, pad drive, etc.)
10 Brush unit
11 Solution switch
12 Vacuum switch
13 Main switch
14 Indicator for malfunction of brush drive motor
15 Service indicator
16 Solution tank
17 Filling level (max.)
18 Solution tank filter
19 Recovery tank
20 Float (overfilling protection for recovery tank)
21 Vacuum air filter
22 Manual solution flow adjustment
23 Dirt sieve
24 Dosing aid
25 Tank lid catch
The tank cap must be closed when moving or driving the machine.
Product: scrubber dryer
Name: swingo 750E / swingo 1250E
Model: CO750.0 (230-240V~/50Hz/1500W)
CO1250.0 (230-240V~/50Hz/1700W)
Dipl. Ing. (FH) D.Windmeisser
Dipl. Ing. (FH) P. König
2
678
10
11
12
14
4
3
13
15
1
5
17
18
19
20
21
22232425
MAX
1/2
9
16
max.60˚C
max.140˚F
