14
Squeegee settings
If you experience an uneven suction result, the settings of the suction unit
should be corrected. Proceed as follows:
Before carrying out the adjustment, check that:
• the blades are not damaged (replace).
• the suction unit is not damaged.

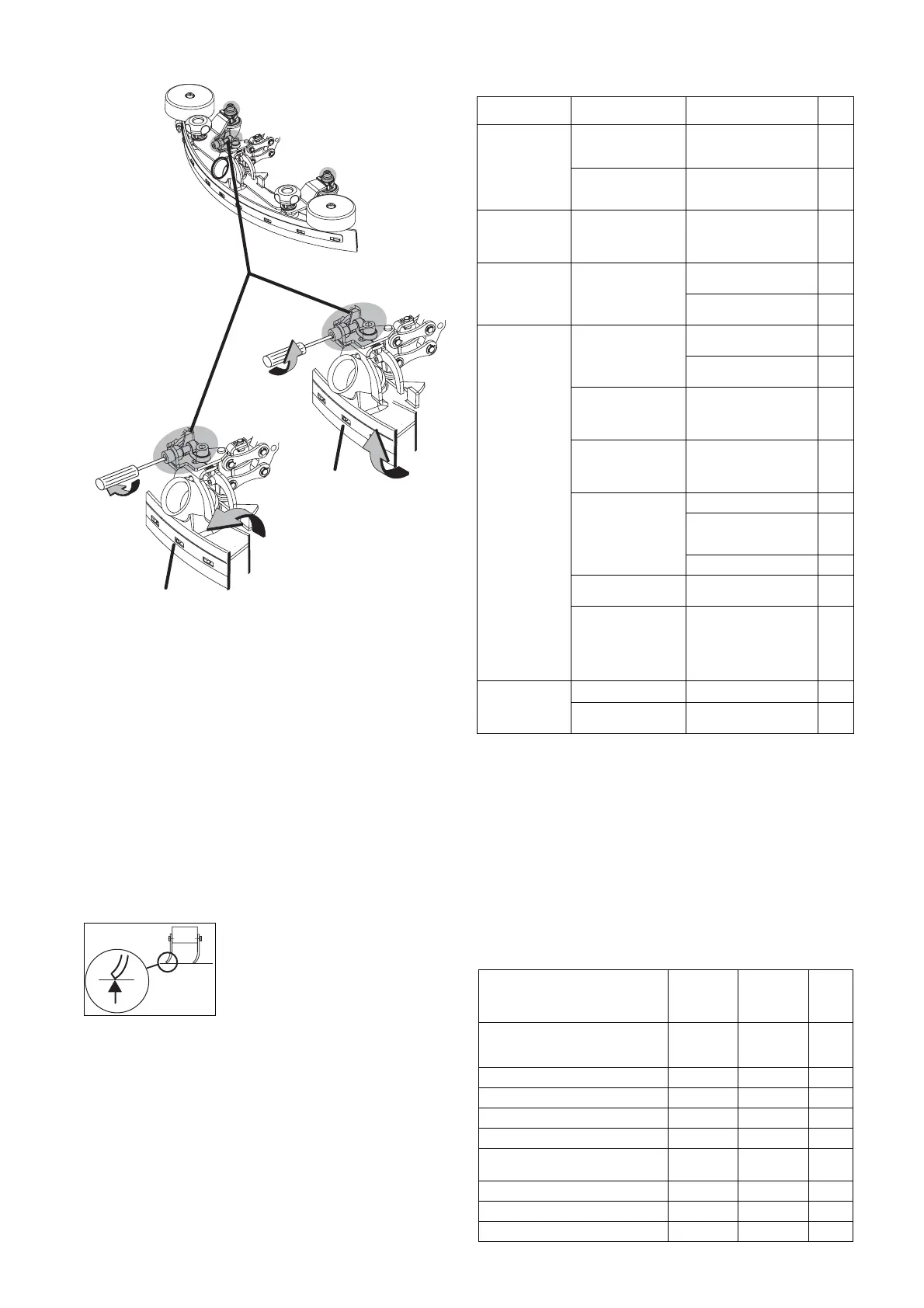

Height setting (Fig. A)
• First check the distance between the floor and the running or support
wheels.
The distance between running wheels number 1 and 2 and the floor must be
between 1 mm and 3 mm in each case (with the blades standing vertically).
• Switch the machine off using the keyswitch and then lower the squeegee.
• To correct, loosen the hexagonal nuts number 1 and 2, and then adjust the
height by turning the Allen screw. Then firmly re-tighten the hexagonal nuts
Number 1 and 2.
• Check the result while cleaning (see illustration below) and go to "Angle of
Inclination" (Fig. B) if the result is unsatisfactory.
Angle of inclination(Fig. B)
• Switch the machine off.
• Lower the squeegee and move the machine forward by a few centimetres
so that the blades can adopt their working position.
• To correct, loosen Allen screw number 3 and adjust the angle of inclination
by turning Allen screw number 4.
Note: Carry out the correction with gradual adjustments!
Firmly retighten Allen screw number 3 after the correction has been made. Then
move the machine forward by a few centimetres and check the setting of the
scraper edge that has been achieved. Repeat this procedure until the correct
inclination is obtained.
Malfunctions
Transport
• Transport the machine in an upright position.
Make sure that the machine is securely fastened within the transportation
vehicle.
Refer to Page 14 for the dimensions and weights.
Disposal
When it has reached the end of its operational life, the machine and its
accessories must be disposed of according to the national regulations. Your
TASKI partner can support you with proper disposal upon notification.
Technical data
A correct angle has been achieved when the tip
of the rear blade (x) is distributed over the
complete width of the suction unit.
B
A
x
x
4
3
1
2
4
3
Malfunction Possible causes Troubleshooting page
Machine does not
run
Main switch switched
off
• Switch on the main
switch
10
No power supply
• Plug the power supply
cord into the mains
socket.
Brush does not
turn
Machine has
overheated causing
motor protection
switch (trip) to cut in.
• Release the drive
switch and press again
10
Foam or liquid
leaking from the
machine
Float malfunction
• Turn off the suction
aggregate
• Check that the float is
functioning correctly.
13
Poor vacuum
performance
Floor remains
wet
Soiled solution
not picked up
Float closes the
vacuum air filter
(overfill protection
recovery tank)
• Check the recovery
tank is not full
12
• Check that the float is
functioning correctly.
13
The vacuum air filter
is blocked
• Check whether the
vacuum air filter is
clean and clean if
necessary
12
Hose or nozzle
blocked, e.g. piece of
wood, residual
material
• Remove the blockage
The blades do not
adjust well to the floor
consistancy
• Clean the squeegee
• Check that the
squeegee suspension
is functioning correctly
• Squeegee adjustment 14
Worn blades
• Change/turn the
blades
13
Dirt sieve full (yellow)
• Remove the dirt sieve
• Knock out the coarse
dirt from the sieve and
rinse it under running
water.
12
Insufficient
outflow of
cleaning solution
Solution tank empty
• Fill the solution tank
11
Solution tank filter
blocked
• Clean solution tank
filter
12
Machine swingo 750 swingo
1250
type CO750.0 CO1250.0
Theoretical performance area
operation width x drive speed (3) x
1000
1290 1500 m2/h
Working speed 3 3 km/h
Working width 43 50 cm
Squeegee width 68 79 cm
Power supply cord length 25 25 m
Rated voltage 100-120V~/
220-240V~
100-120V~/
220-240V~
ac
Rated power 1500 1700 W
Frequency 50/60 50/60 Hz
Machine weight for operation 110 165 kg
