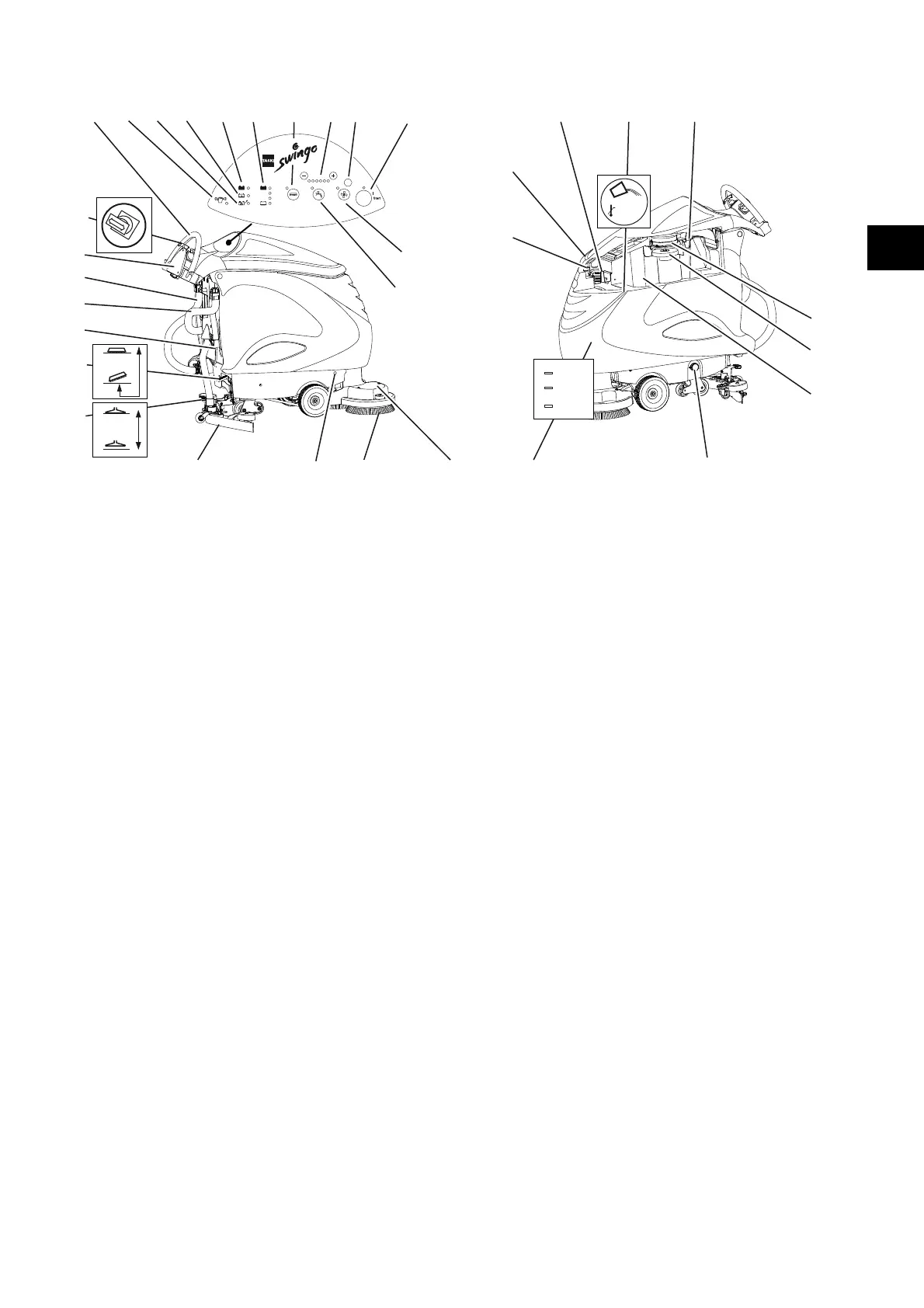

Structural layout
1 Driving switch
2 Operating hour counter (option)
3 Drain hose cleaning solution (blue cover)
4 Drain hose waste water (red cover)
5 Battery disconnection socket (coding)
6 Variant: Foot pedal tool
7 Foot pedal squeegee
8 Squeegee
9 Option: Lock battery compartment
10 Tools (brushes, pads, etc.)
11 Brush unit
12 Filling level indicator
13 Fresh water tank filter
14 Recovery tank
15 Float (Overfill protection recovery tank)
16 Suction filter
17 Dirt sieve
18 Solution tank
19 Dosage aid
20 Tank lid
21 Tank lid release
22 Cleaning solution supply button (ON/OFF)
23 Suction unit button (ON/OFF)
24 Key switch
25 ECO mode button (ON/OFF)
26 Cleaning solution supply amount button (+/-)
27 Tool drive button ON / OFF (only with 1255B EBU)
28 Battery level indicator
29 Battery display loaded
30 Battery display loading
31 Battery/PSU fault display
32 Service display
33 Driving handle
7
8910
6
3
4
5
33
1
293031 28 27 26 25
24
23
22
Eco
32
2
11 12
18 1719
13
14
15
16
21
20
max.60°C
max.140°F
MAX
3/4
1/2
EN
