Section 6
6-1
087482-M
Operating Procedures
6
Operating Procedures
The Model C791 and C794 are console models with a
three-spout door. These models have a 3.4 qt. (3.2 L)
capacity freezing cylinder and 14 qt. (13.2 L) capacity mix
hoppers. The mix flows by gravity from the hopper to the
freezing cylinder through a feed tube.
We begin our instructions at the point where we enter the
store in the morning and find the parts disassembled and
laid out to air dry from the previous night's cleaning.
These opening procedures will show you how to
assemble these parts into the machine, sanitize them,
and prime the machine with fresh mix in preparation to
serve your first portion.
Duplicate the procedures where they apply for the
second freezing cylinder.
If you are disassembling the machine for the first time or
need information to get to the starting point in our
instructions, turn to
"Disassembly" on page 6-10, and
start there.
Assembly
Note: When lubricating parts, use an approved food
grade lubricant (example: Taylor Lube).
WARNING! Make sure the power switch is in
the OFF position. Failure to follow this instruction may
result in severe personal injury from hazardous moving
parts.
1. Lubricate the groove and shaft portion that comes in
contact with the bearing on the beater drive shaft.
Slide the seal over the shaft and groove until it snaps
into place. Do not lubricate the hex end of the drive
shaft. Fill the inside portion of the seal with 1/4 in.
more lubricant and lubricate the flat side of the seal
that fits onto the rear shell bearing.

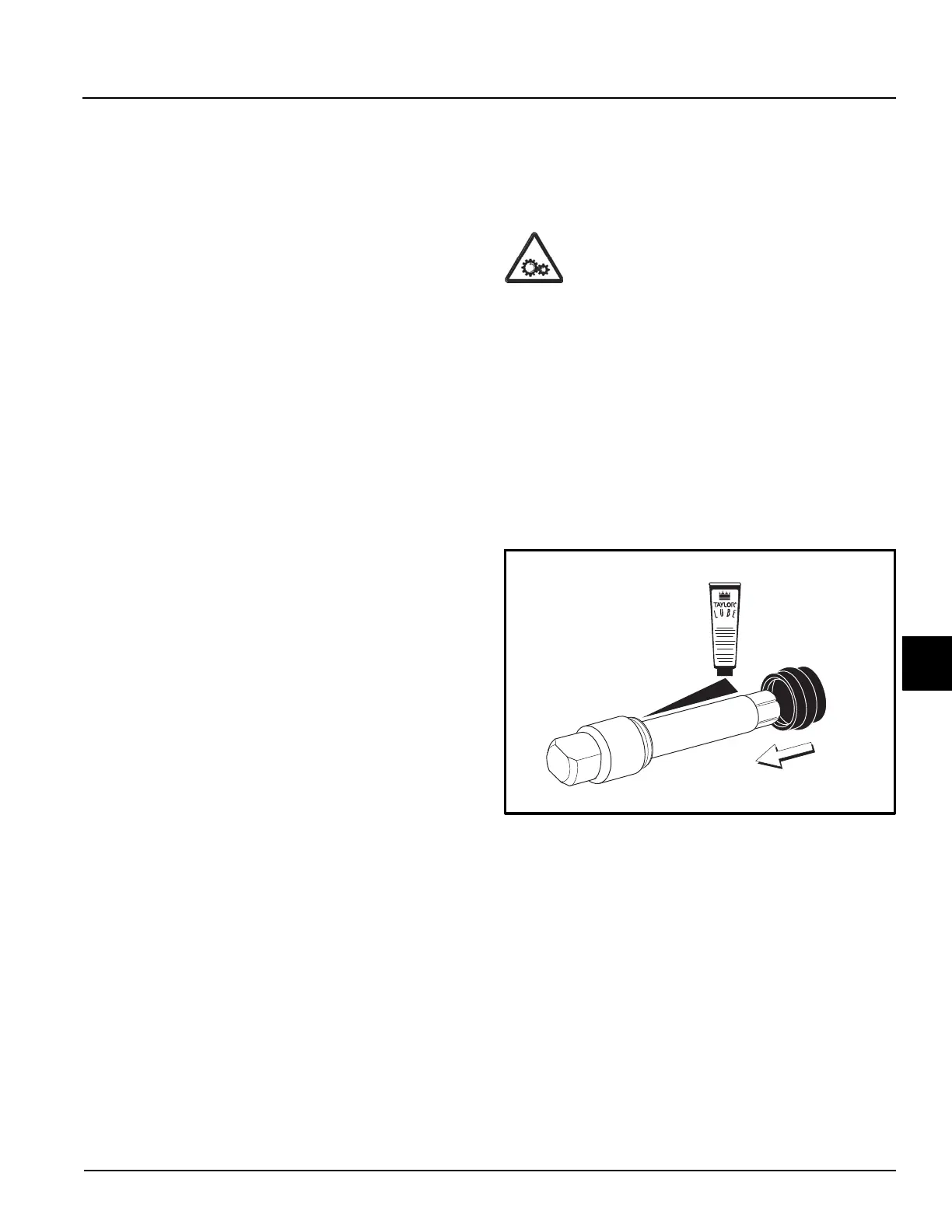

Figure 6-1
2. Repeat step 1 for the other drive shaft(s).
