TCL 98R754 User Manual

Step 4
9

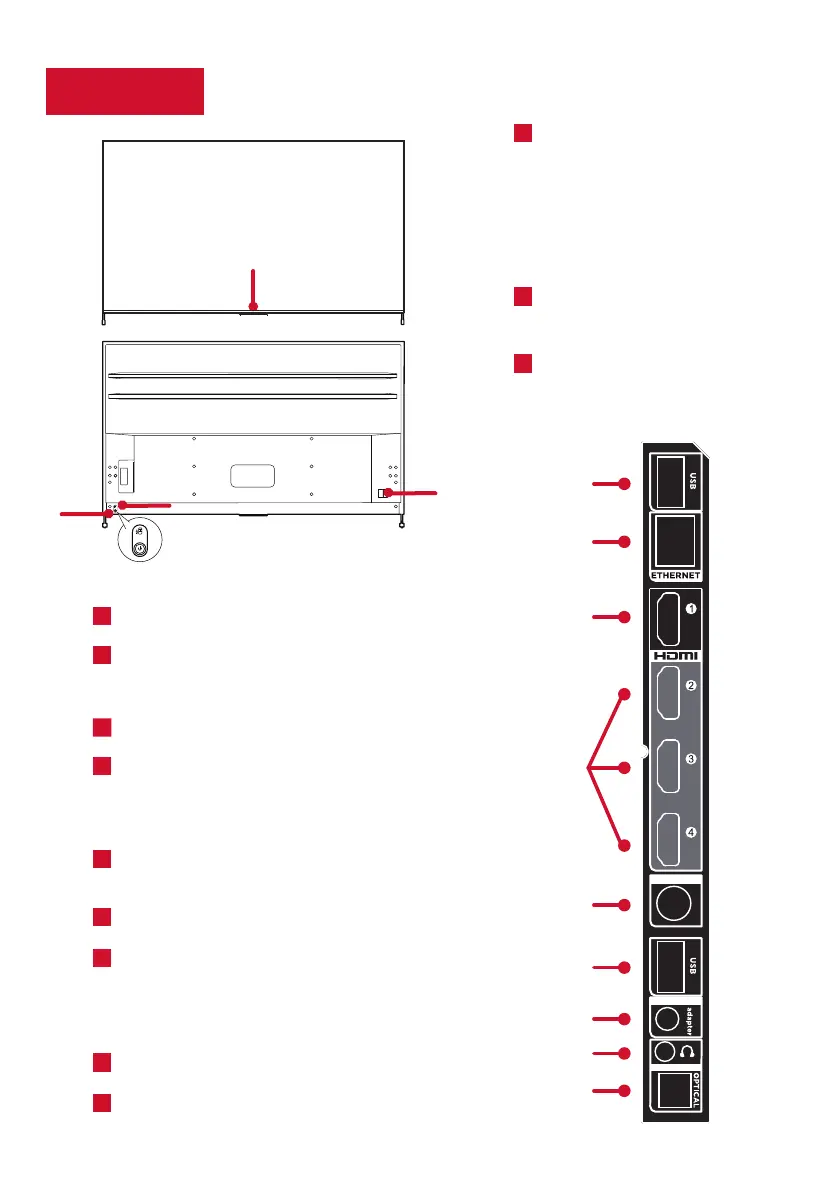

Get to know your TV
H
L
I
HDMI PORTS
Highest quality audio/video connection.
Connect cable box, Blu-ray player, gaming console,
or other devices to your TV using HDMI cables.
ETHERNET Connect an Ethernet cable to your home
Internet router or switch.
F
ANTENNA/CABLE IN Connect an outdoor VHF/UHF
antenna or Cable TV feed.
OPTICAL (DIGITAL AUDIO OUT)
Connect an optical
cable to an external digital audio system.
HDMI ports 1 & 2: Supports up to 4K/120Hz
HDMI ports 3 & 4: Supports up to 4K/60Hz
The AV Input can be used to connect older devices
that use analog audio/video outputs. Compatible
adapter (not included) connects to the RCA cable
(video - yellow and audio - white and red) that you
normally use to connect to that device.
AV IN adapter
AV Input (analog audio/video).
K
USB PORT
Connect a USB device to access photos,
music and movies. Or connect the optional TCL
webcam to chat with friends using supported video
call apps.
J
G
HEADPHONE OUT
Connect headphones or other
external speakers.
TV FRONT
TV SIDE
HDMI eARC/ARC PORT Connect HDMI eARC/ARC
E
(audio return channel) capable audio devices like
sound bars or
AV receivers.
LIGHT SENSOR Analyzes ambient
light conditions for optional auto
picture adjustment.
IR RECEIVER Receives signal from
the TV remote.
STATUS LIGHT OF HANDS-FREE
VOICE CONTROL
Glows when you
activate the hands-free voice control.
(To learn more about the function,
go to page 14.)
A
POWER PORT Connect your TV
C
to the power source with the
included power cable.
POWER and OPTIONS BUTTON
B
Press once to open the menu.
Short click to change the menu and
long click to select.
A
I
G
J
K
L
F
E
E
G/H
CABLE/ANT
AV IN
AUDIO OUT
4K/
120Hz
(e)ARC
4K/
120Hz
4K/
60Hz
4K/
60Hz
OFF
ON
OFF
ON
C
D
B
HANDS-FREE VOICE CONTROL MIC SWITCH
Enable or disable the TV’s integrated microphone.
D

TCL 98R754 Specifications

General

Screen shape	Flat
LED backlight	Yes
Response time	- ms
Display diagonal	98 \
Display brightness	- cd/m²
Display technology	QLED
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Display number of colors	1.07 billion colors
Display refresh rates supported	48 Hz, 120 Hz
Motion interpolation technology	Natural Motion 480
Game features	Game Studio Pro, Variable Refresh Rate (VRR)
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus)
Package type	Box
Package depth	320.04 mm
Package width	2410.46 mm
Package height	1524 mm
Package weight	81102.32 g
Product color	Black
Panel mounting interface	400 x 850 mm
Batteries	2x AAA
Cables included	AC
Power consumption (standby)	0.5 W
Power consumption (typical)	- W
PC in (D-Sub)	No
HDMI ports quantity	4
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Remote control input capabilities	Voice recognition
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
Operating system installed	Google TV
Audio decoders	Dolby Atmos, Dolby Digital, Dolby Digital Plus
RMS rated power	30 W
On Screen Display (OSD) languages	DEU, ENG, ESP, FRE
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Weight and Dimensions

Depth (with stand)	424.18 mm
Height (with stand)	1346.2 mm
Weight (with stand)	62595.75 g
Depth (without stand)	101.6 mm
Width (without stand)	2181.86 mm
Height (without stand)	1259.84 mm
Weight (without stand)	59602.04 g
