L2 Repair Enhance Document TCL Communication Ltd.
Rev.
ONE TOUCH 6055K/P/Y/B/H Level 2 Enhance Repair Document
Page
1.0
33/72
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
4.4 Reassembly Process
Please make reference to the disassembly process for assembly reverse an order of the disassembly
steps.

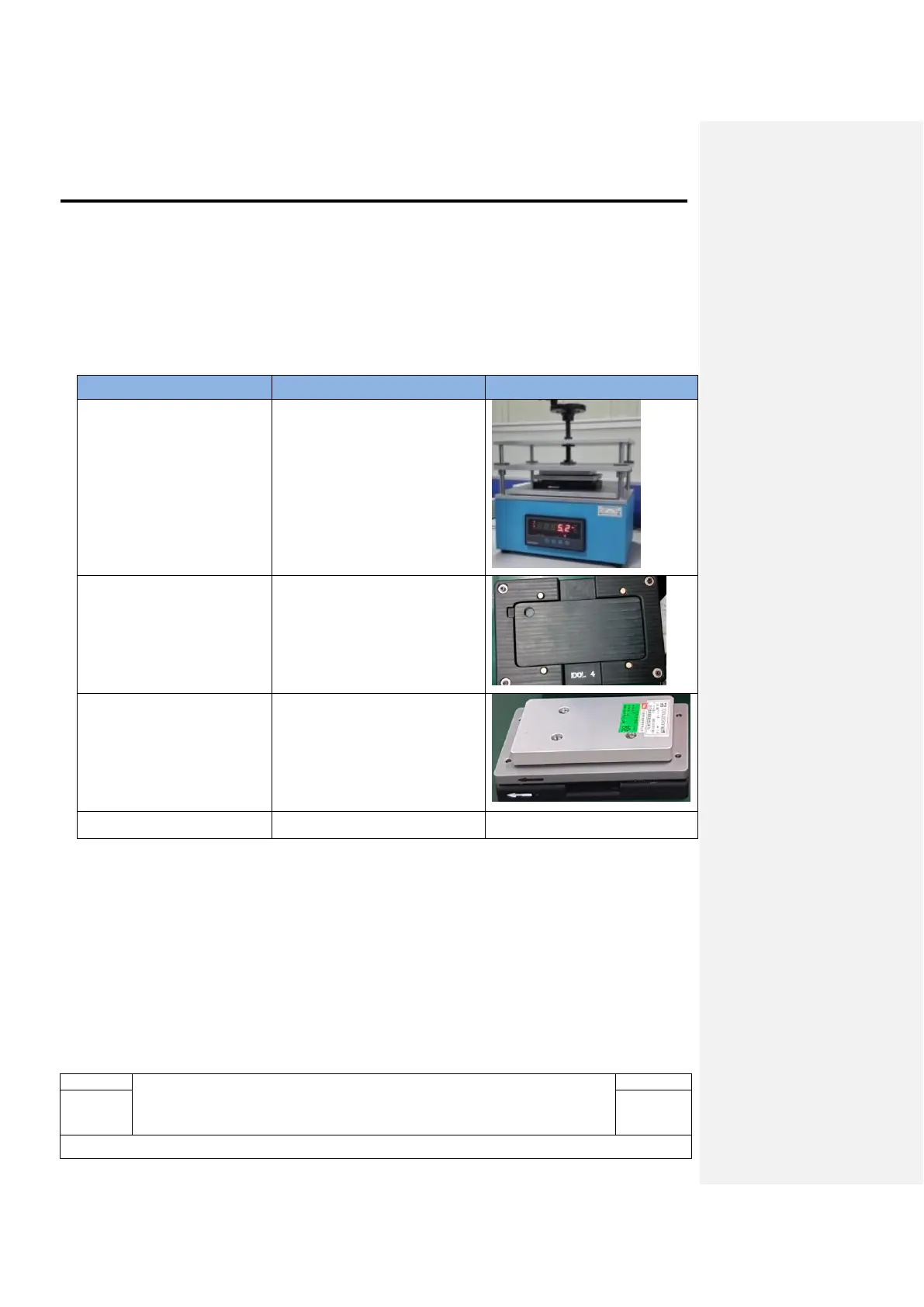

Jig list:
PN
description
WAA00002U002
Press battery cover after
assembly
WAA363063002
apply foam to battery cover
WAA3630TG002
Back cover press adaptor
WAA363017001
Customization jig
Attention:
Make sure the main camera and sub camera is assembled correctly on PCBA, do not mix them;
 Assemble Audio module and USB connector first before assemble PCBA;
Assemble the steel disc first and correctly on PCBA, then assemble the button speaker box:
