Technics RS-B465 Service Manual

RS-B465

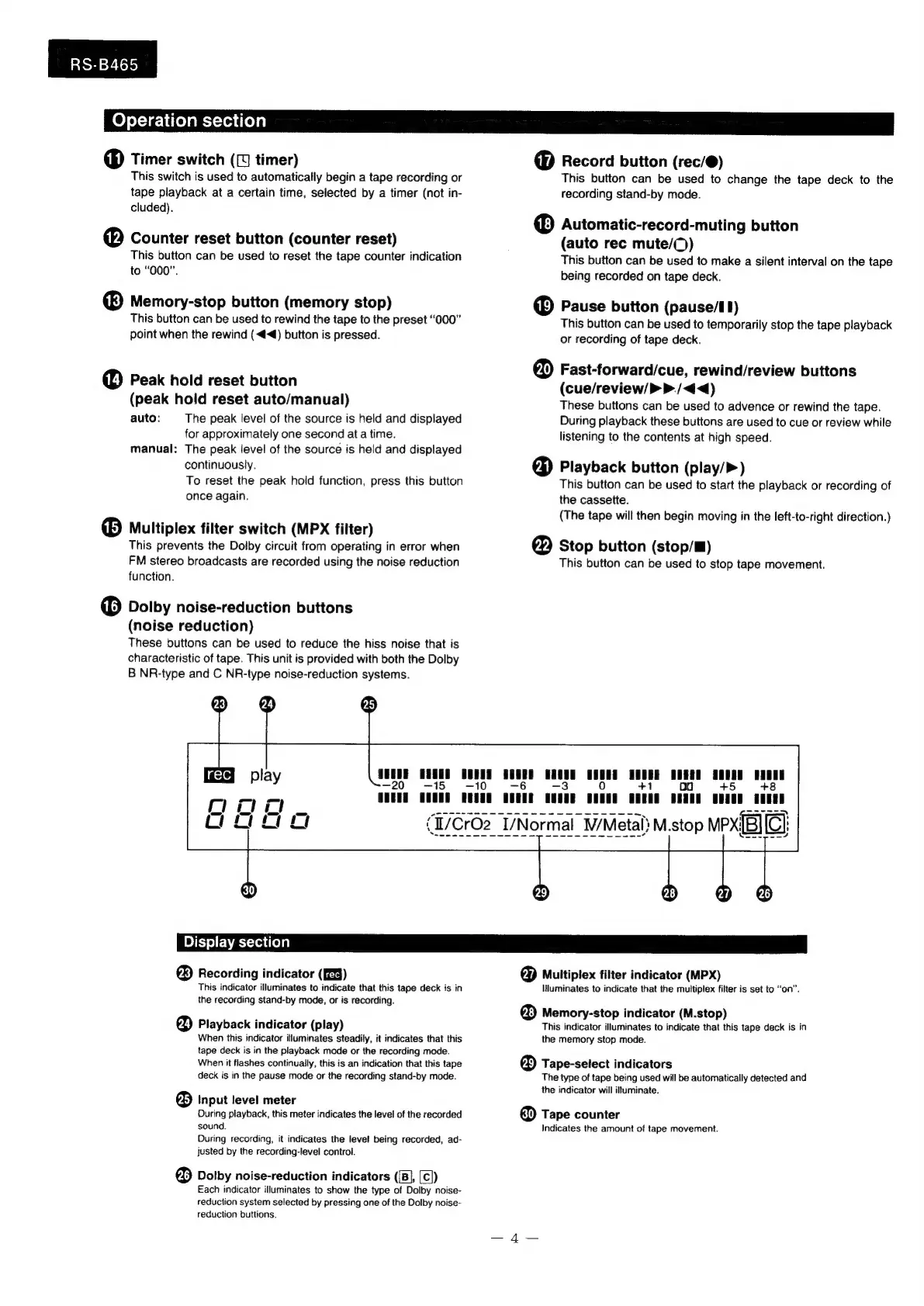

Operation section
® Timer switch (J timer)
This switch is used to automatically begin a tape recording or
tape playback at a certain time, selected by a timer (not in-
cluded).
@ Counter reset button (counter reset)
This button can be used to reset the tape counter indication
to “000”.
® Memory-stop button (memory stop)
This button can be used to rewind the tape to the preset “000”
point when the rewind (<4) button is pressed.
@) Peak hold reset button
(peak hold reset auto/manual)
auto: The peak level of the source is held and displayed
for approximately one second at a time.
manual: The peak level of the source is held and displayed
continuously.
To reset the peak hold function, press this button
once again.
® Multiplex filter switch (MPX filter)
This prevents the Dolby circuit from operating in error when
FM stereo broadcasts are recorded using the noise reduction
function.
® Dolby noise-reduction buttons
(noise reduction)
These buttons can be used to reduce the hiss noise that is
characteristic of tape. This unit is provided with both the Dolby
B NR-type and C NR-type noise-reduction systems.
@® Record button (rec/®@)
This button can be used to change the tape deck to the
recording stand-by mode.
@® Automatic-record-muting button
(auto rec mute/Q)
This button can be used to make a silent interval on the tape
being recorded on tape deck.
@® Pause button (pause/#1)
This button can be used to temporarily stop the tape playback
or recording of tape deck.
@ Fast-forward/cue, rewind/review buttons
(cue/review/> >./<<)
These buttons can be used to advence or rewind the tape.
During playback these buttons are used to cue or review while
listening to the contents at high speed.
@ Playback button (play/P)
This button can be used to start the playback or recording of
the cassette.
(The tape will then begin moving in the left-to-right direction.)
@ Stop button (stop/H)
This button can be used to stop tape movement.
SUEDE GEGGD BURGE GOURD ROGUE UGGS CREE RBESD ROGGE POON
-20 -15 —10 —6 -3 0 +1 og +5 +8
CURES GRGEE REGEE CORTE RUNEE CRUUE GERRS BRAG BOSON SUES
=
+
'
’
a
Display section
@) Recording indicator ([%)
This indicator illuminates to indicate that this tape deck is in
the recording stand-by mode, or is recording.
@) Playback indicator (play)
When this indicator illuminates steadily, it indicates that this
tape deck is in the playback mode or the recording mode.
When it flashes continually, this is an indication that this tape
deck is in the pause mode or the recording stand-by mode.
® Input level meter
During playback, this meter indicates the level of the recorded
sound.
During recording, it indicates the level being recorded, ad-
justed by the recording-level control.
@ Dolby noise-reduction indicators ({B], [C])
Each indicator illuminates to show the type of Dolby noise-
reduction system selected by pressing one of the Dolby noise-
reduction buttions.
@ Multipiex filter indicator (MPX)
Iiluminates to indicate that the multiplex filter is set to “on”.
@ Memory-stop indicator (M.stop)
This indicator illuminates to indicate that this tape deck is in
the memory stop mode.
€@ Tape-select indicators
The type of tape being used will be automatically detected and
the indicator will iltuminate.
€) Tape counter
Indicates the amount of tape movement.
