Technics RS-TR575 Service Manual
5
of 1
of 1 rating
52 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

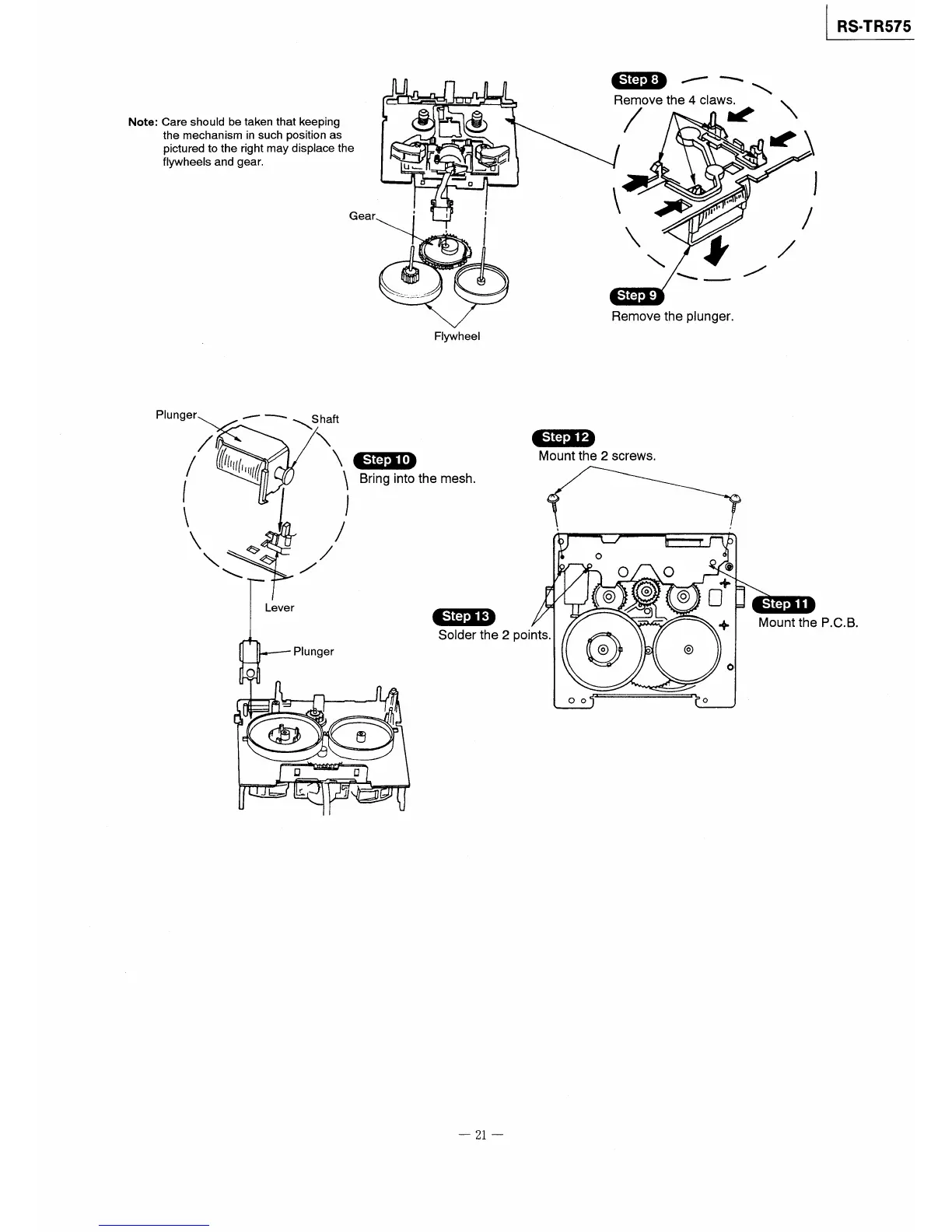

RS・TR575
Note＝Care should be taken that keeping
the mechanism in such position as
pictured tothe right maydisplacethe
flywheels and gear，
画D！一
Remove the4claws，
／ ぜ
＼
＆
u一＿
Gear
o
ク
一
0
＼
ゴ」
ノ
Remove the plunger．
Flywheel
Plunge「 一、＼Sha我
／ ＼
μ直llo蜥 ＼￥囎themesh
l 1ノノ
＼＼傑
・／
図
Solderthe2points，
、β
Lever
Plunger
O
影智
②
』
8
一
∫幾・L
∫∪』ノ礎β拶U
Mountthe2screws，
O
O
l◎
O ◎
穿
◎ ◎口
O O
O
畠 ●
MounttheP．C．B．
一21一
20
22
Table of Contents
Specifications
1
Contents
2
Safety Precaution
2
Insulation Resistance Test
2
Accessories
2
Connections
3
Caution for AC Mains Lead
4
How to Replace the Fuse
4
Front Panel Controls
5
Playback
6
To Temporarily Stop Playback
6
To Stop Playback
6
Reverse Function
7
About the Automatic Tape-Select Function
7
About the Remote Control Function
7
About the Dolby Noise-Reduction System, about the Dolby HX-Pro Headroom Extension System
7
About the ATC Function
8
Self-Diagnostic
9
Indication Text
9
To Indicate Self-Diagnostic Function
9
To Resume Ordinary Indication
9
Disassembly Instructions
10
Capstan Motor Terminal
12
How to Check the Main P.C.B.
14
Installation of the Sub Chassis Ass'y
15
Installation of the Cassette Holder Ass'y
16
Replacement of the Foot
16
Replacement of Main Parts
17
Friction Gear Ass'y Replacement
17
Drive Rack Replacement
18
Head Replacement
19
Plunger Replacement
20
Playback Gain
23
Initial Setting up for Overall Gain and Overall Frequency Response
23
EEPROM Map
23
Troubleshooting Guide
24
Measurements and Adjustments
27
Adjustment Points
27
When Replacing the Head
28
Head Azimuth Adjustment (Deck 1/2)
28
Tape Speed Adjustment (Deck 1/2)
28
Playback Gain Measurement (Deck 1/2)
28
Playback Frequency Response (Deck 1/2)
29
Erase Current Measurement (Deck 1/2)
29
Confirmation of the Overall Gain and Overall Frequency Response
29
Terminal Function of IC
30
Terminal Guide of IC's, Transistors and Diodes
33
Block Diagram
34
Schematic Diagram
36
Printed Circuit Boards
41
Wiring Connection Diagram
43
Replacement Parts List
44
Cabinet Parts Location
45
Mechanism Parts Location
46
Replacement Parts Table
47
Resistors and Capacitors
50
Packaging
52
Other manuals for Technics RS-TR575
Operating Instructions
24 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Technics RS-TR575 and is the answer not in the manual?
Ask a question
Technics RS-TR575 Specifications
General
Brand
Technics
Model
RS-TR575
Category
Cassette Player
Language
English
Related product manuals
Technics RS-TR575M2
20 pages
Technics RS-TR474
50 pages
Technics RS-TR252
16 pages
Technics RS-TR313
24 pages
Technics RS-TR979
34 pages
Technics RS-TR333 - SCHEMATICS
8 pages
Technics RS-T9032
24 pages
Technics RS-AZ7
61 pages
Technics RS-EH60
37 pages
Technics RS-DC10
16 pages
Technics RS-CA01
35 pages
Technics RS-X101
