Technics SA-AX9W User Manual

Front speaker
(not included)
(Left)
Front speaker
(Not included)
(Right)
Center speaker
(not included)
X Subwoofer
(not included)
Surround speaker
(not included)
(Left)
Surround speaker
(not included)
(Right)

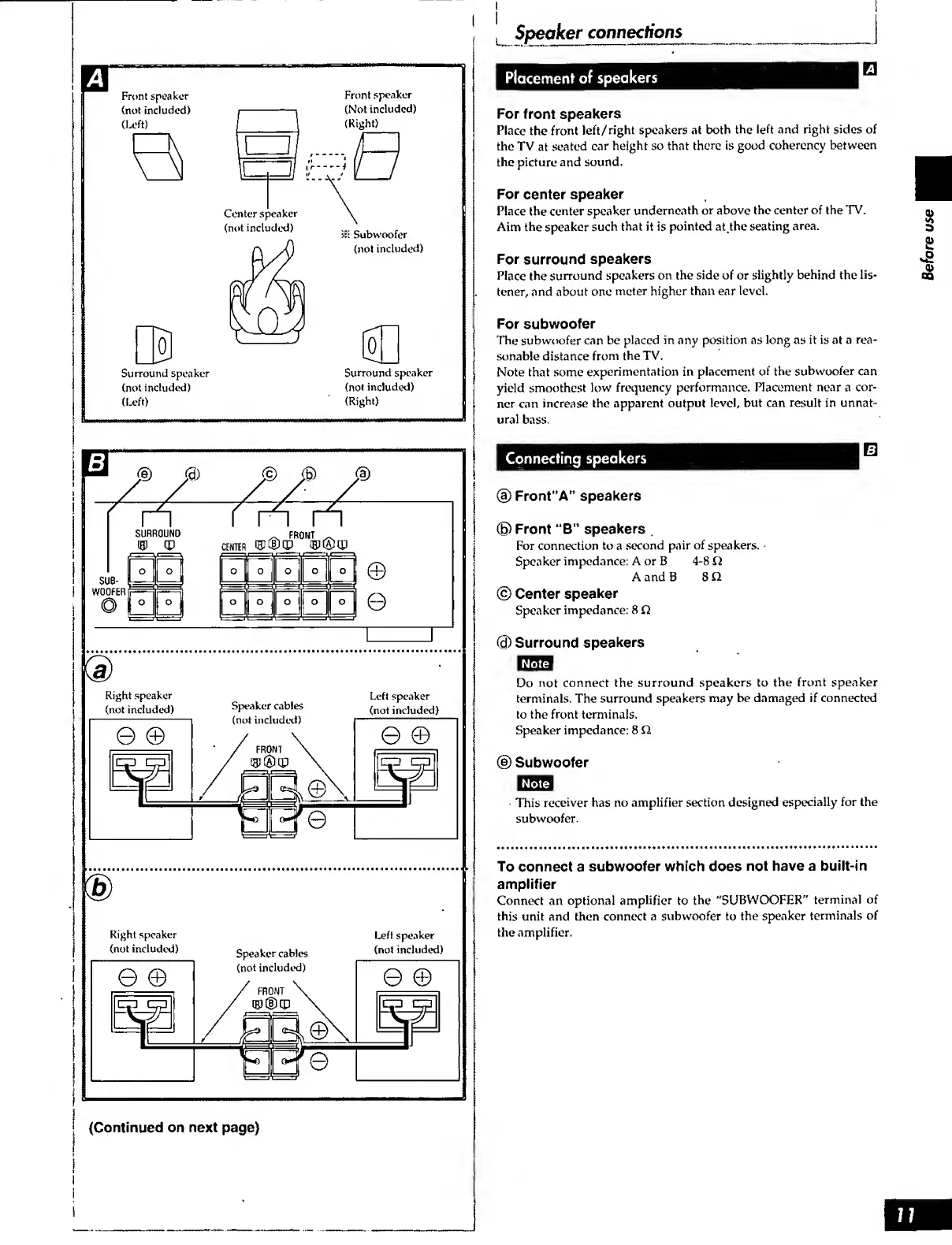

L Speaker connections
Placement of speakers
For front speakers
Place the front left/right speakers at both the left and right sides of
the TV at seated ear height so that there is good coherency between
the picture and sound.
For center speaker
Place the center speaker underneath or above the center of the TV.
Aim the speaker such that it is pointed at the seating area.
For surround speakers
Place the surround speakers on the side of or slightly behind the lis¬
tener, and about one meter higher than ear level,
For subwoofer
The subwoofer can be placed in any position as long as it is at a rea¬
sonable distance from the TV.
Note that some experimentation in placement of the subwoofer can
yield smoothest low frequency performance. Placement near a cor¬
ner can increase the apparent output level, but can result in unnat¬
ural bass.
Connecting speakers
(D Front”A” speakers
( 6 ) Front “B” speakers .
For connection to a second pair of speakers.
Speaker impedance: A or B 4-8 £2
A and B 8 £2
© Center speaker
Speaker impedance: 8 £2
(d) Surround speakers
Do not connect the surround speakers to the front speaker
terminals. The surround speakers may be damaged if connected
to the front terminals.
Speaker impedance: 8 £2
© Subwoofer
This receiver has no amplifier section designed especially for the
subwoofer.
To connect a subwoofer which does not have a built-in
amplifier
Connect an optional amplifier to the "SUBWOOFER" terminal of
this unit and then connect a subwoofer to the speaker terminals of
the amplifier.
(Continued on next page)
