Technics SA-AX9W User Manual

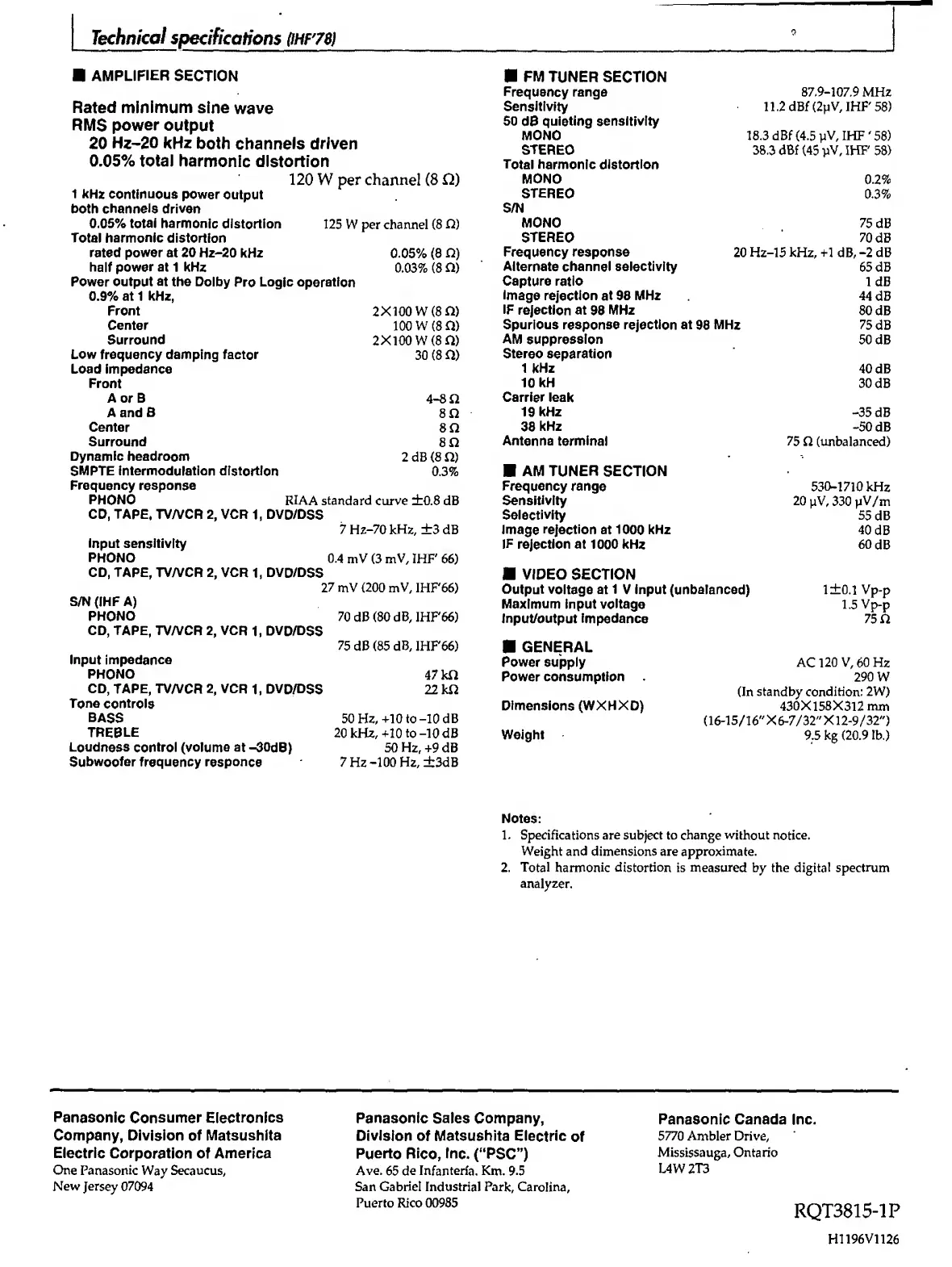

Technical specifications (IHF'78)
9
■ AMPLIFIER SECTION
Rated minimum sine wave
RMS power output
20 Hz-20 kHz both channels driven
0.05% total harmonic distortion
120 W per channel (8 H)
1 kHz continuous power output
both channels driven
0.05% total harmonic distortion 125 W per channel (8 ft)
Total harmonic distortion
rated power at 20 Hz-20 kHz
0.05% (8 ft)
half power at 1 kHz
0.03% (8 ft)
Power output at the Dolby Pro Logic operation
0.9% at 1 kHz,
Front
2X100 W (8 ft)
Center
100 w (8 ft)
Surround
2X100 W (8 ft)
Low frequency damping factor
30 (8 ft)
Load impedance
Front
A or B
4-8 ft
A and B
8ft
Center
8ft
Surround
8ft
Dynamic headroom
2 dB (8 ft)
SMPTE intermodulation distortion
0.3%
Frequency response
PHONO RIAA standard curve ±0.8 dB
CD, TAPE, TV/VCR 2, VCR 1, DVD/DSS
7 Hz-70 kHz, ±3 dB
Input sensitivity
PHONO
0.4 mV (3 mV, IHF 66)
CD, TAPE, TV/VCR 2, VCR 1, DVD/DSS
27 mV (200 mV, IHF'66)
S/N (IHF A)
PHONO
70 dB (80 dB, IHF66)
CD, TAPE, TV/VCR 2, VCR 1, DVD/DSS
75 dB (85 dB, IHF66)
Input impedance
PHONO
47 kft
CD, TAPE, TV/VCR 2, VCR 1, DVD/DSS
22 kft
Tone controls
BASS 50 Hz, +10 to -10 dB
TREBLE
20 kHz,+10 to -10 dB
Loudness control (volume at -30dB)
50 Hz, +9 dB
Subwoofer frequency responce
7 Hz -100 Hz, ±3dB
■ FM TUNER SECTION
Frequency range
87.9-107.9 MHz
Sensitivity
11.2 dBf (2pV, IHF' 58)
50 dB quieting sensitivity
MONO
18.3 dBf (4.5 pV, IHF ' 58)
STEREO
38.3 dBf (45 pV, IHF' 58)
Total harmonic distortion
MONO
0.2%
STEREO 0.3%
S/N
MONO
75 dB
STEREO 70 dB
Frequency response
20 Hz-15 kHz,+1 dB, -2 dB
Alternate channel selectivity 65 dB
Capture ratio
1 dB
Image rejection at 98 MHz
44 dB
IF rejection at 98 MHz
80 dB
Spurious response rejection at 98 MHz 75 dB
AM suppression
50 dB
Stereo separation
1 kHz
40 dB
10 kH
30 dB
Carrier leak
19 kHz
-35 dB
38 kHz
-50 dB
Antenna terminal 75 ft (imbalanced)
■ AM TUNER SECTION
Frequency range
530-1710 kHz
Sensitivity
20 pV, 330 pV/m
Selectivity
55 dB
Image rejection at 1000 kHz
40 dB
IF rejection at 1000 kHz
60 dB
■ VIDEO SECTION
Output voltage at 1 V input (unbalanced) 1 ±0.1 Vp-p
Maximum input voltage 1.5 Vp-p
Input/output impedance
75 ft
■ GENERAL
Power supply
AC 120 V, 60 Hz
Power consumption 290 W
Dimensions (WXHXD)
(In standby condition: 2W)
430X158X312 mm
Weight
(16-15/16" X 6-7/32" X12-9/32")
9.5 kg (20.9 lb.)
Notes:
1, Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
One Panasonic Way Secaucus,
New Jersey 07094
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
Ave. 65 de Infanteria. Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Panasonic Canada Inc.
5770 Ambler Drive,
Mississauga, Ontario
L4W 2T3
RQT3815-1P
H1196V1126
