Technics SA-GX130D User Manual

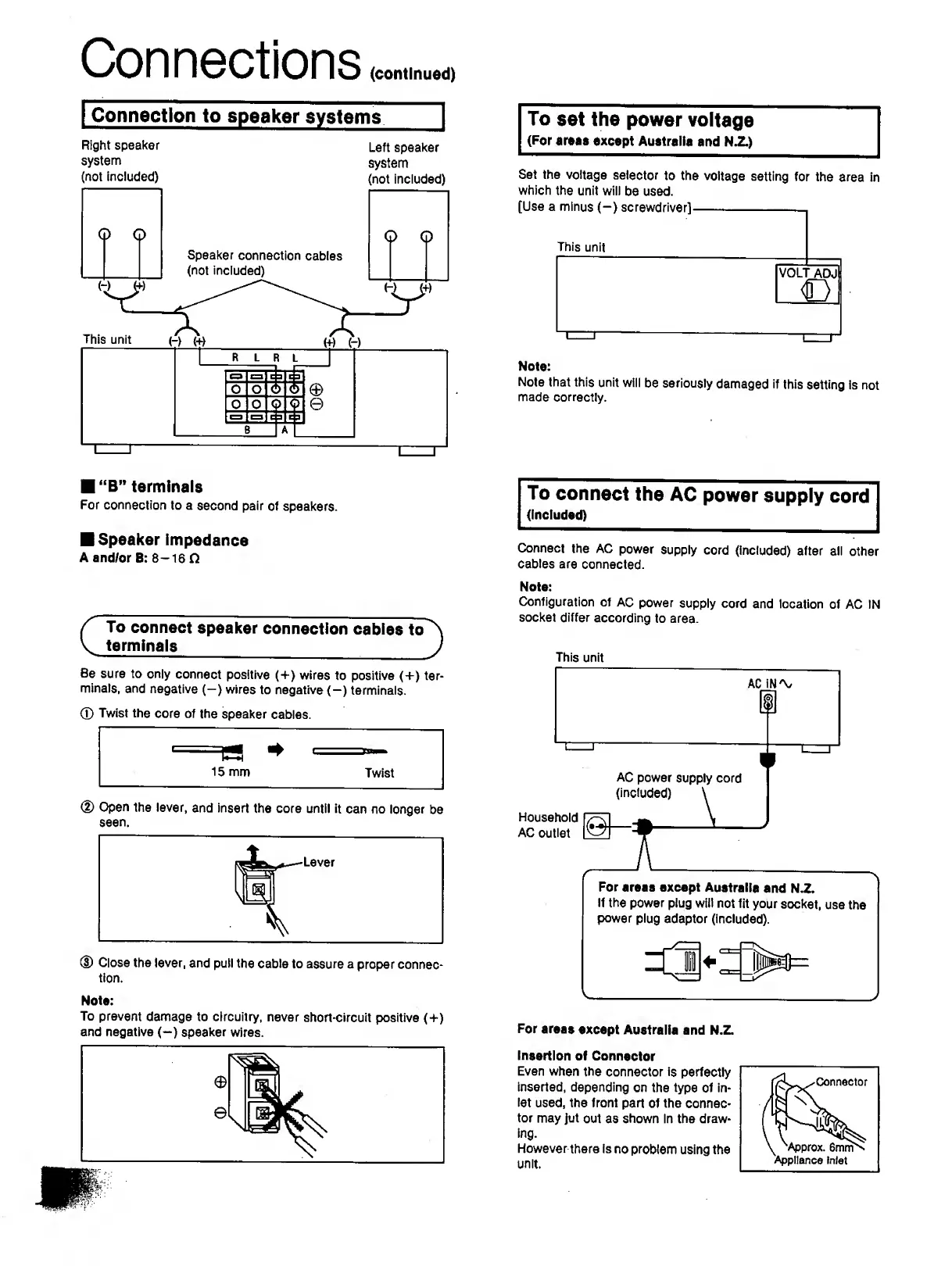

Connections (continued)
Connection to speaker systems
Right speaker Left speaker
system system
(not included) (not included)
■ “B” terminals
For connection to a second pair of speakers.
■ Speaker impedance
A and/or B: 8-16 fi
To connect speaker connection cables to
terminals
Be sure to only connect positive (4-) wires to positive (+) ter¬
minals, and negative (-) wires to negative (-) terminals.
® Twist the core of the speaker cables.
=si + *—>—
15 mm Twist
(2) Open the lever, and insert the core until it can no longer be
seen.
4
U. ^—-Lever
%
(D Close the lever, and pull the cable to assure a proper connec¬
tion.
Note:
To prevent damage to circuitry, never short-circuit positive {+)
and negative (—) speaker wires.
To set the power voltage
(For areas except Australia and N.Z.)
Set the voltage selector to the voltage setting for the area in
which the unit will be used.
(Use a minus (—) screwdriver]-.
This unit
[VOLT ADJI
mdJ
i i
T=TT
J
Note:
Note that this unit will be seriously damaged if this setting is not
made correctly.
To connect the AC power supply cord
(Included)
Connect the AC power supply cord (included) after all other
cables are connected.
Note:
Configuration of AC power supply cord and location of AC IN
socket differ according to area.
This unit
For areas except Australia and N.Z.
Insertion ol Connector
Even when the connector is perfectly
inserted, depending on the type of in¬
let used, the front part of the connec¬
tor may jut out as shown In the draw¬
ing.
However there is no problem using the
unit.
