Technics SA-GX170 Operating Instructions

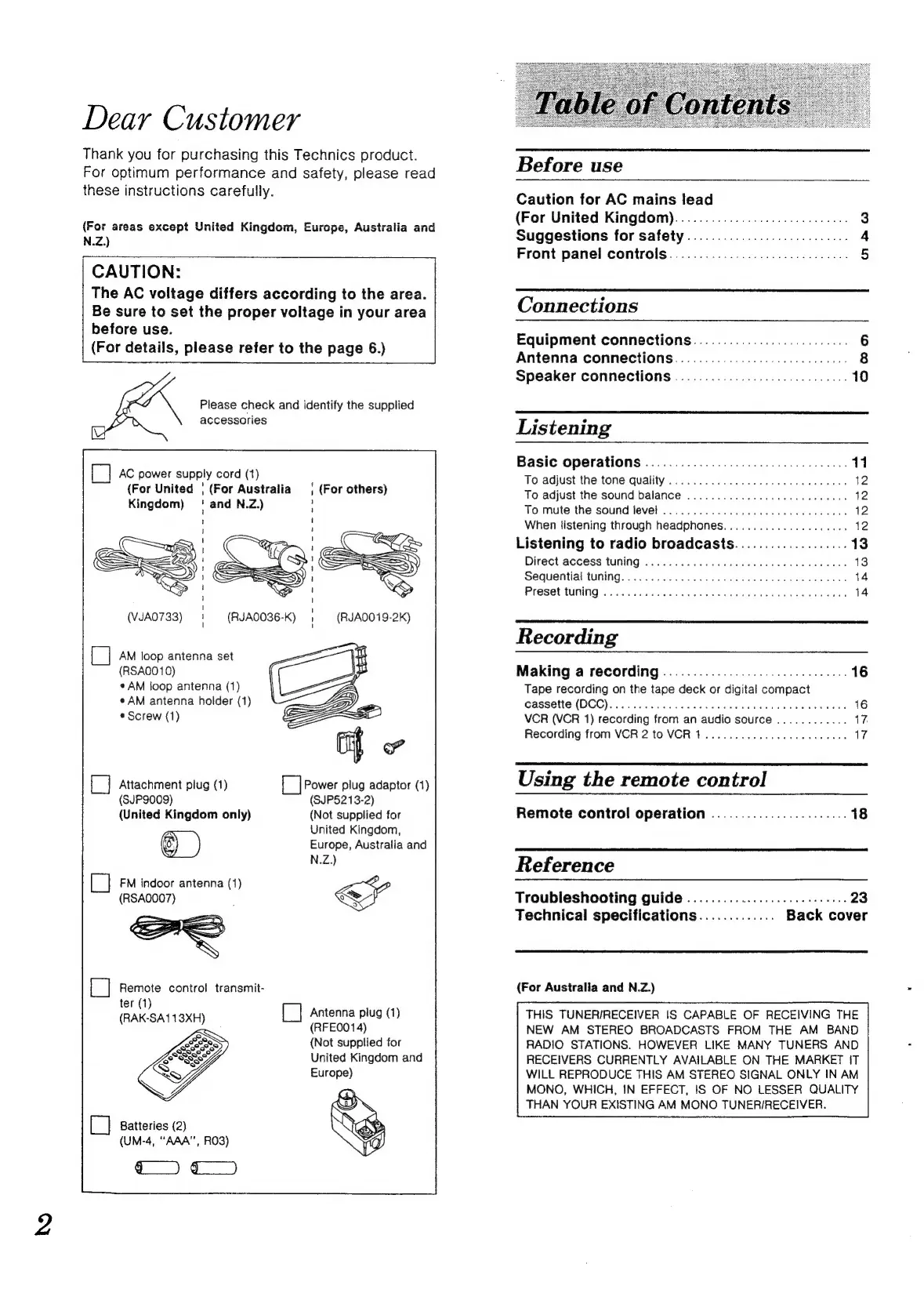

Dear Customer
Thank you for purchasing this Technics product.
For optimum performance and safety, please read
these instructions carefully.
(For areas except United Kingdom, Europe, Australia and
N.Z.)
| CAUTION:
The AC voltage differs according to the area.
Be sure to set the proper voltage in your area
before use.
(For details, please refer to the page 6.)
Please check and identify the supplied
accessories
[] AC power supply cord (1)
(For United | (For Australia (For others)
Kingdom)
(RJAOO36-K)
[] AM loop antenna set
(RSAQ010)
* AM loop antenna (1)
¢ AM antenna holder (1)
¢ Screw (1)
[ ] Attachment plug (1) [| Power plug adaptor (1)
(SUP9009) (SJP5213-2)
(United Kingdom only) (Not supplied for
United Kingdom,
@) ) Europe, Australia and
N.Z.)
FM
indoor
antenna
(1)
ZZ.
eo
(RSA0007)
.
<S
Remote control transmit-
ter (1)
(RAK-SA113XH)
[_]
Antenna
plug
(1)
(RFEO014)
(Not supplied for
United Kingdom and
Europe)
Batteries (2)
(UM-4, “AAA”, RO3)
a 5 SS
Before use
Caution for AC mains lead
(For United Kingdom)............................. 3
Suggestions for safety........................... 4
Front panel controls.............................. 5
Connections
Equipment connections.......................... 6
Antenna connections............................. 8
Speaker connections........................06... 10
Listening
Basic operations ......................000.... 0.2 11
To adjust the tone quality... 0.0... kee ec eee ee 12
To adjust the sound balance .............. 0. cece eee 12
To mute the sound level ............. ccc cece eee 12
When listening through headphones...................85 12
Listening to radio broadcasts................... 13
Direct access tuning ........... 0. cece eee eee ene eens 13
Sequential tuning. ............ 0. ccc cece eee eect e eens 14
Preset tuning wi. pace scnecn sates eased bene dae aeaae 14
Recording
Making a recording ..................0.....e sees 16
Tape recording on the tape deck or digital compact
cassette (DCC)... 0... eee cence ne eee een eees 16
VCR (VCR 1) recording from an audio source ............ 17.
Recording from VCR 2 to VCR 1.2.00... eee ee ees 17
Using the remote control
Remote control operation ....................... 18
Reference
Troubleshooting guide ........................... 23
Technical specifications............. Back cover
(For Australia and N.Z.)
THIS TUNER/RECEIVER IS CAPABLE OF RECEIVING THE
NEW AM STEREO BROADCASTS FROM THE AM BAND
RADIO STATIONS. HOWEVER LIKE MANY TUNERS AND
RECEIVERS CURRENTLY AVAILABLE ON THE MARKET IT
WILL REPRODUCE THIS AM STEREO SIGNAL ONLY IN AM
MONO, WHICH, IN EFFECT, IS OF NO LESSER QUALITY
THAN YOUR EXISTING AM MONO TUNER/RECEIVER.
