6.9. Disassembly of Tone Arm All
Unit Ass’y, Queuing Knob and
Armrest Ass’y
Refer to “Disassembly of T/T Rubber Mat and Turntable
Ass’y”.
Refer to “Disassembly of Insulator Unit”.
Refer to “Disassembly of Bottom Chassis Ass’y”.
Refer to “Disassembly of Phono Out P.C.B.”. (Step 1 - 8).

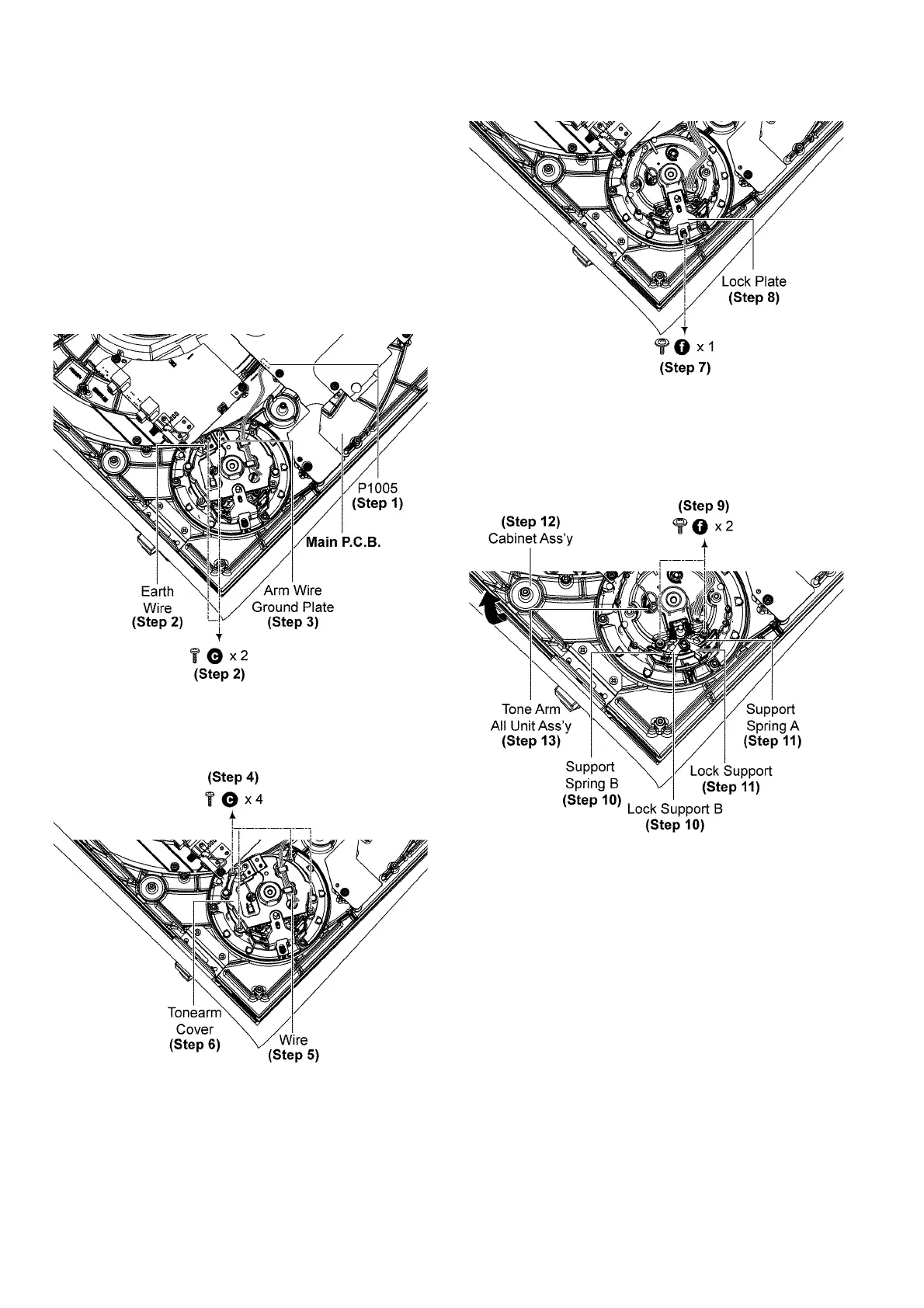

Step 1 Detach 5P Wire at connector (P1005) on Main P.C.B..
Step 2 Remove 2 screws and Earth Wire.
Step 3 Remove Arm Wire Ground Plate.
Step 4 Remove 4 screws.
Step 5 Remove Wire.
Step 6 Remove Tonearm Cover.
Step 7 Remove screw.
Step 8 Remove Lock Plate.
Step 9 Remove 2 screws.
Step 10 Remove Support Spring B and Lock Support B.
Step 11 Remove Support Spring A and Lock Support.
Step 12 Separate the Cabinet Ass’y from the Dust Cover Unit.
Step 13 Remove Tone Arm All Unit Ass’y.
