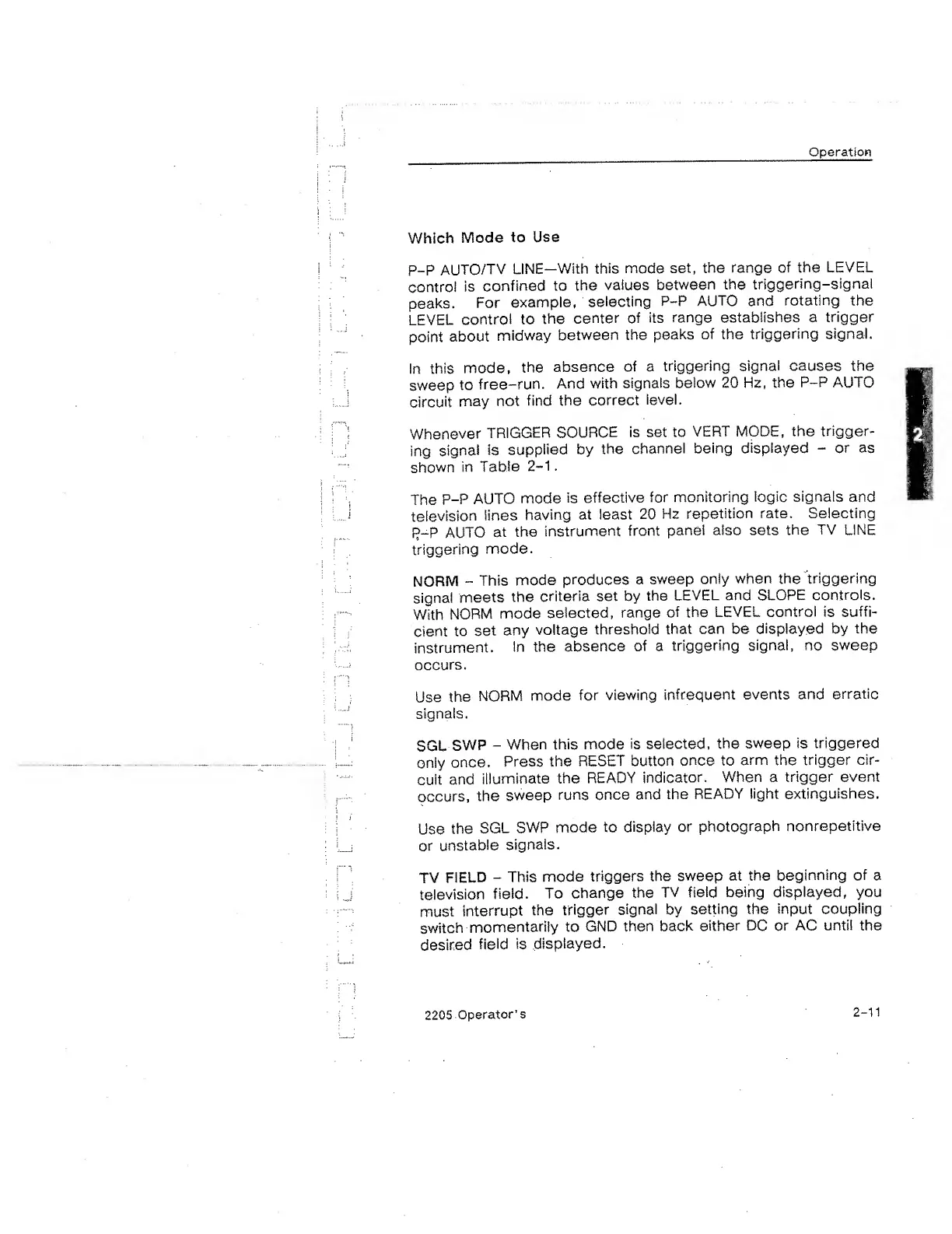

Operation
Which
Mode
to
Use
P-P
AUTO/TV
LINE—With
this
mode
set,
the
range
of
the
LEVEL
control
is
confined
to
the
values
between
the
triggering-signal
peaks.
For
example,
selecting
P-P
AUTO
and
rotating
the
LEVEL
control
to
the
center
of
its
range
establishes
a
trigger
point
about
midway
between
the
peaks
of
the
triggering
signal.
In
this
mode,
the
absence
of
a
triggering
signal
causes
the
sweep
to
free-run.
And
with
signals
below
20
Hz,
the
P-P
AUTO
circuit
may
not
find
the
correct
level.
Whenever
TRIGGER
SOURCE
is
set
to
VERT
MODE,
the
trigger¬
ing
signal
is
supplied
by
the
channel
being
displayed
-
or
as
shown
in
Table
2-1.
The
P-P
AUTO
mode
is
effective
for
monitoring
logic
signals
and
television
lines
having
at
least
20
Hz
repetition
rate.
Selecting
fD_p
auto
at
the
instrument
front
panel
also
sets
the
TV
LINE
triggering
mode.
NORM
-
This
mode
produces
a
sweep
only
when
the
triggering
signal
meets
the
criteria
set
by
the
LEVEL
and
SLOPE
controls.
With
NORM
mode
selected,
range
of
the
LEVEL
control
is
suffi¬
cient
to
set
any
voltage
threshold
that
can
be
displayed
by
the
instrument.
In
the
absence
of
a
triggering
signal,
no
sweep
occurs.
Use
the
NORM
mode
for
viewing
infrequent
events
and
erratic
signals.
SGL
SWP
-
When
this
mode
is
selected,
the
sweep
is
triggered
only
once.
Press
the
RESET
button
once
to
arm
the
trigger
cir¬
cuit
and
illuminate
the
READY
indicator.
When
a
trigger
event
occurs,
the
sweep
runs
once
and
the
READY
light
extinguishes.
Use
the
SGL
SWP
mode
to
display
or
photograph
nonrepetitive
or
unstable
signals.
TV
FIELD
-
This
mode
triggers
the
sweep
at
the
beginning
of
a
television
field.
To
change
the
TV
field
being
displayed,
you
must
interrupt
the
trigger
signal
by
setting
the
input
coupling
switch
momentarily
to
GND
then
back
either
DC
or
AC
until
the
desired
field
is
displayed.
