Tektronix 4 Series User Manual

Front chassis assembly with acqusition board and processor board

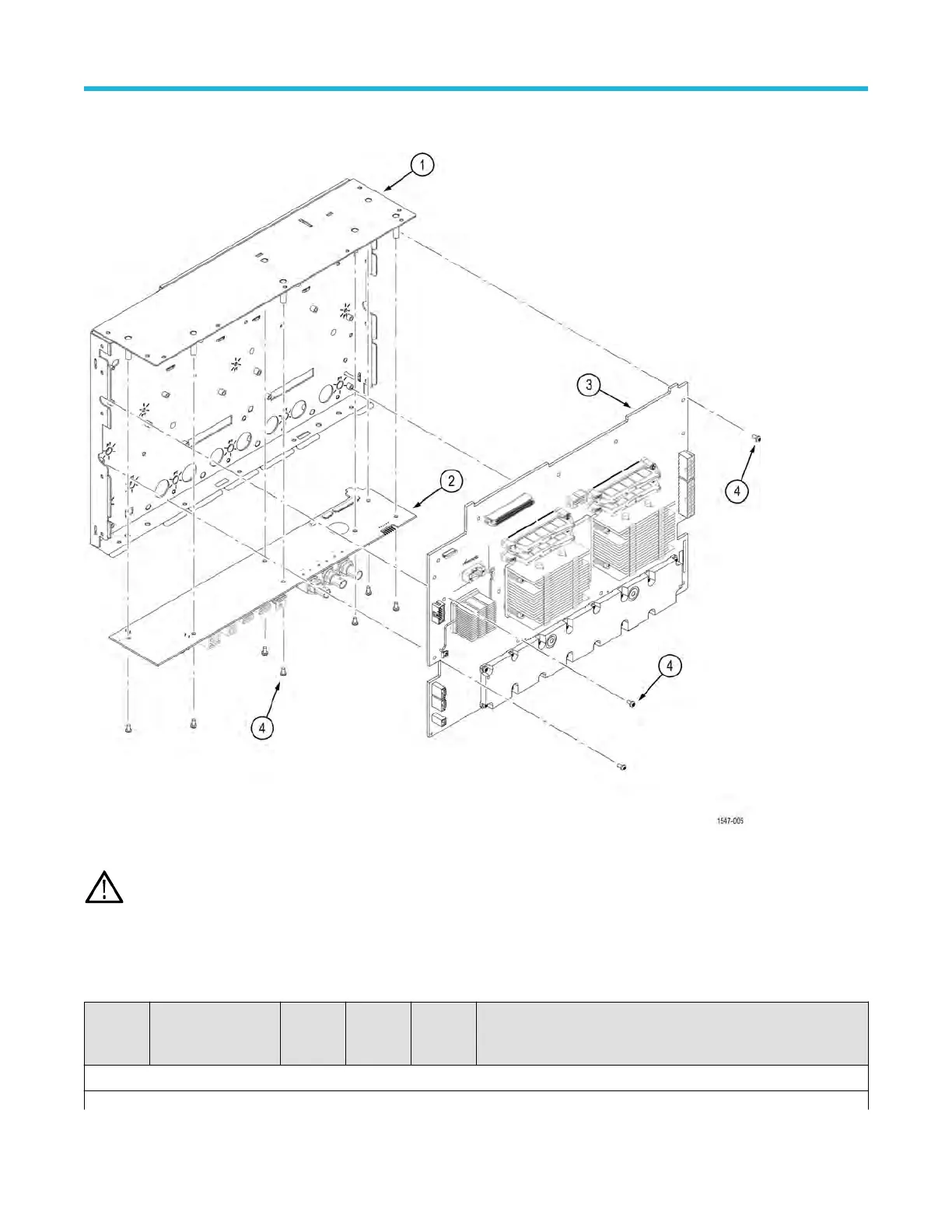

Figure 7: Front chassis assembly with acqusition board and processor board- exploded view
Note: None of the components listed are user-replaceable. Return the instrument to your nearest T
ektronix Service Center to
repair or replace any internal components or assemblies in this diagram.
Table 10: Front chassis assembly with acqusition board and processor board
Fig. &
index
number
Tektronix part
number
Serial no.
effective
Serial no.
discont'd
Qty Name & description
Figure 7 on page
42
Table continued…
Replaceable parts
4 Series MSO (MSO44, MSO46) Service 42
