Acquisition
Set up a parallel bus
You can set parallel bus parameters. You can use digital channels in bus definitions on MSO Series instruments only.

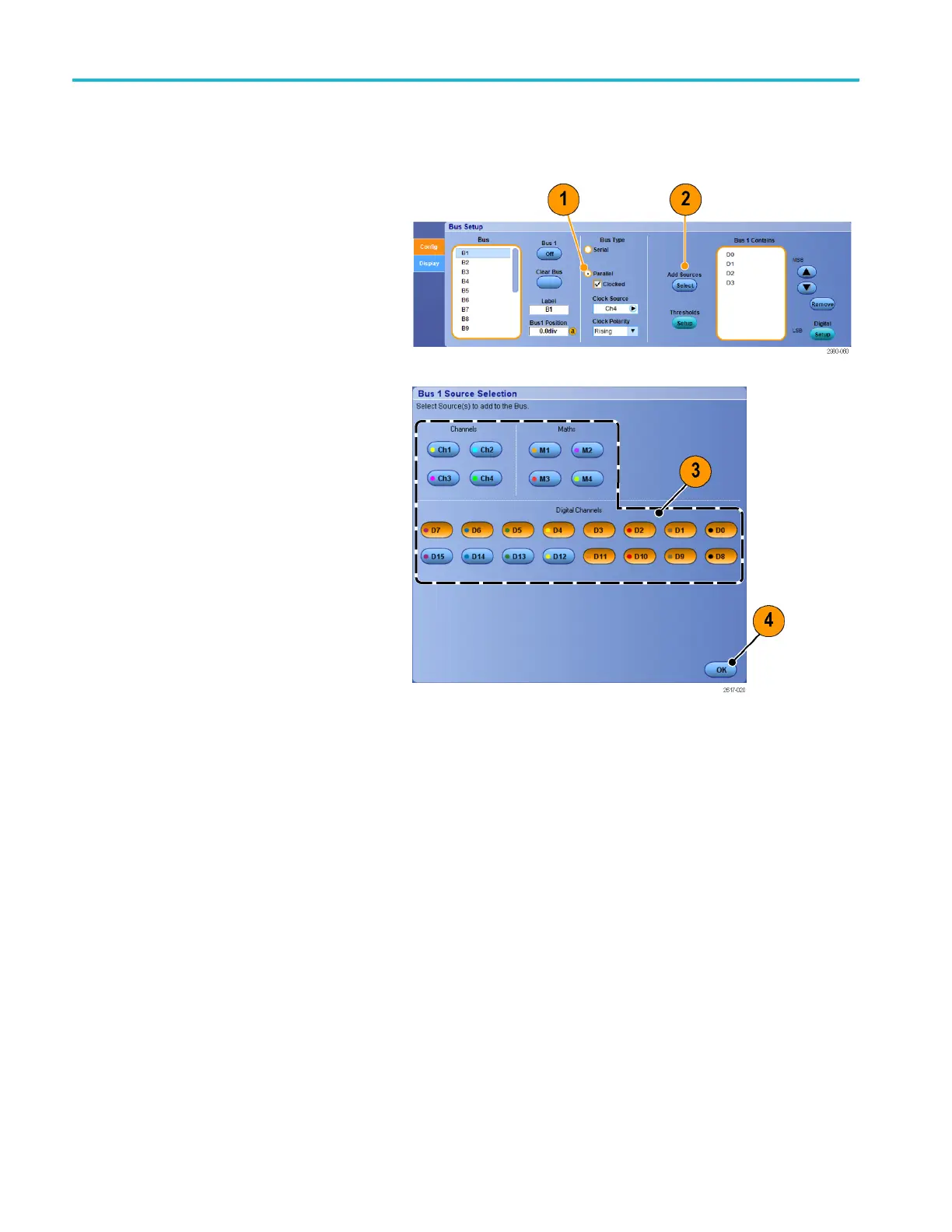

1. To set up a parallel bus, select Bus Type
Parallel.
See the online help for additional help
setting up a bus.
2. To add sources to the bus, click the Add
Sources Select button.
3. Click the button for each channel you
want in the bus. The order of the parallel
bus is determined by the o rder in which
you select the channels. Digital c hannels
are available as s ources only on MSO
Series instruments.
4. Click the OK button.
56 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
