Tektronix MDO3000 Series Demonstration Guide

Locating Signals on Demo Board

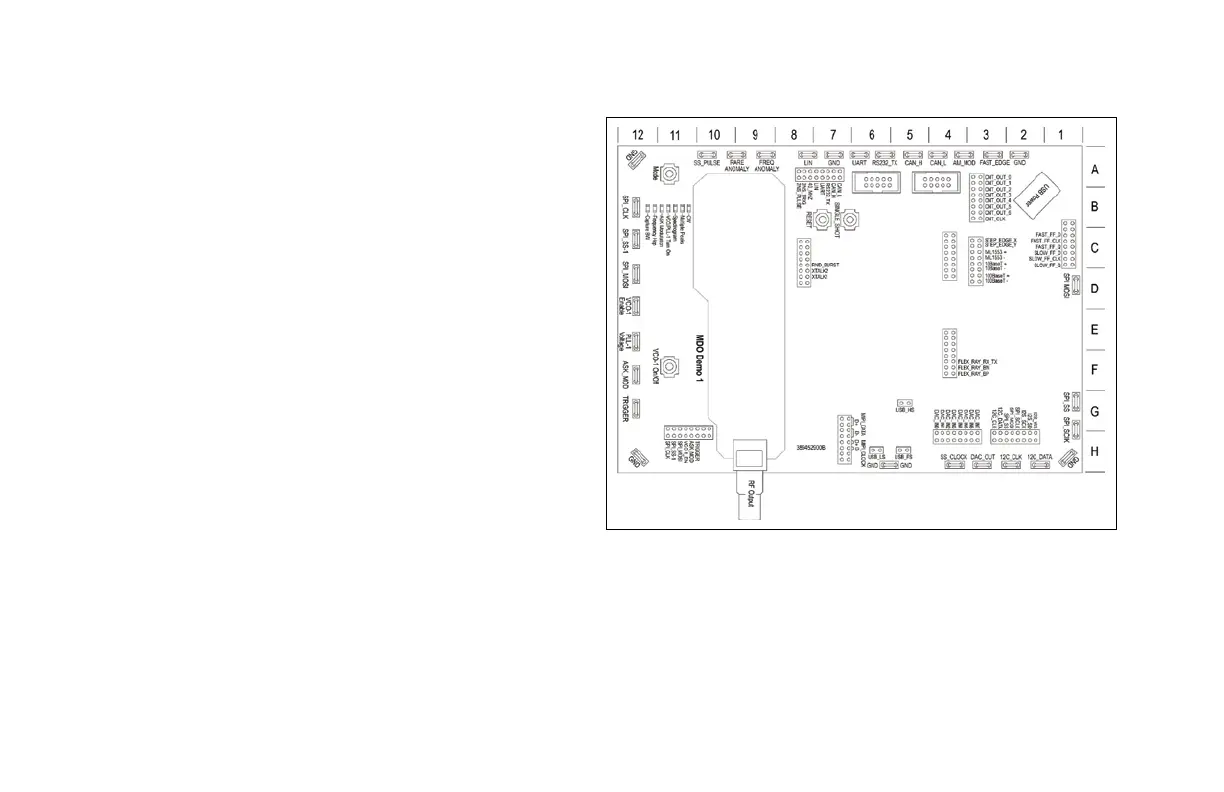

The following diagram includes a grid to help you locate
signal outputs. To find a particular signal output on the board,
look up the connector grid location in the following Signal
Descriptions section and use the grid location information to
find the signal on the demo board.
Figure 34.
www.tektronix.com/mdo300046
MDO3000 Series Oscilloscope
Demonstration Guide
