Getting Acquainted with the Oscilloscope

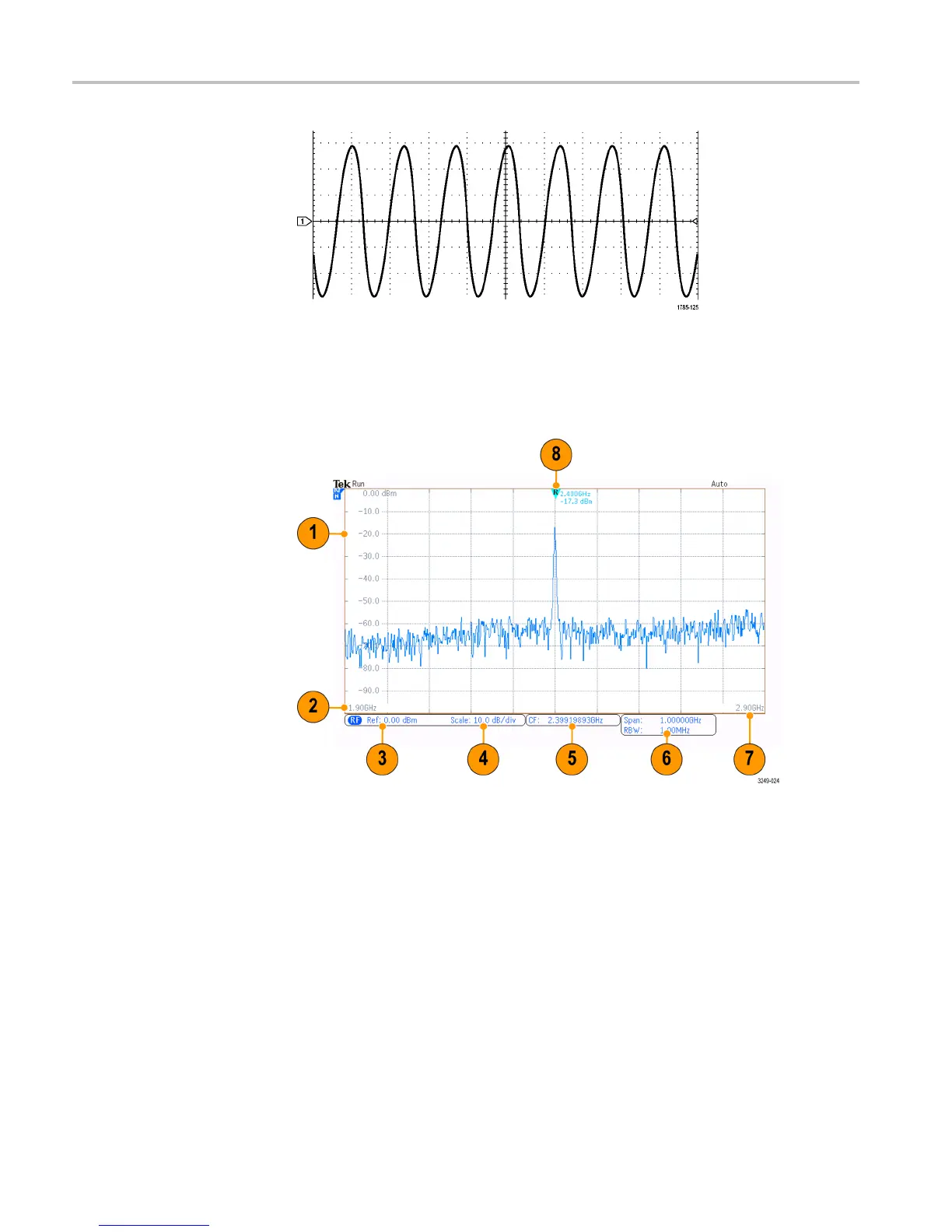

Identifyin
g Items in the Frequency Domain Display
Activate the frequency domain display by pressing the front panel RF button.
1. Vertical graticule labels
2. Start frequency
3. Reference level
4. Ver
tical scale
5. Center frequency
6. Span and resolution b andwidth
7. Stop frequency
8. Reference marker
42 MDO3000 Installation and Safety Instructions

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
