Acquisition
Set Up a Parallel Bus
You can set parallel bus parameters. You can use digital channels in bus definitions on MSO Series instruments only.
1. To set up a parallel bus, select Bus Type
Parallel.
See the online help for additional help
setting up a bus.
2. To add sources to the bus, click the Add
Sources S e lect button.
3. Click the button for each channel you
want in the bus. The order of the parallel
bus is determined by the order in which
you select the channels. Digital channels
are available as s ources only on MSO
Series instruments.
4. Click the OK button.
5. To move a channel within the bus, scroll
to and select the channel you want to
move,
and then click the up or down
arrow buttons.
6. To remove a channel within the bus,
scroll to and select the channel you want
to rem
ove, and then click the Remove
button.

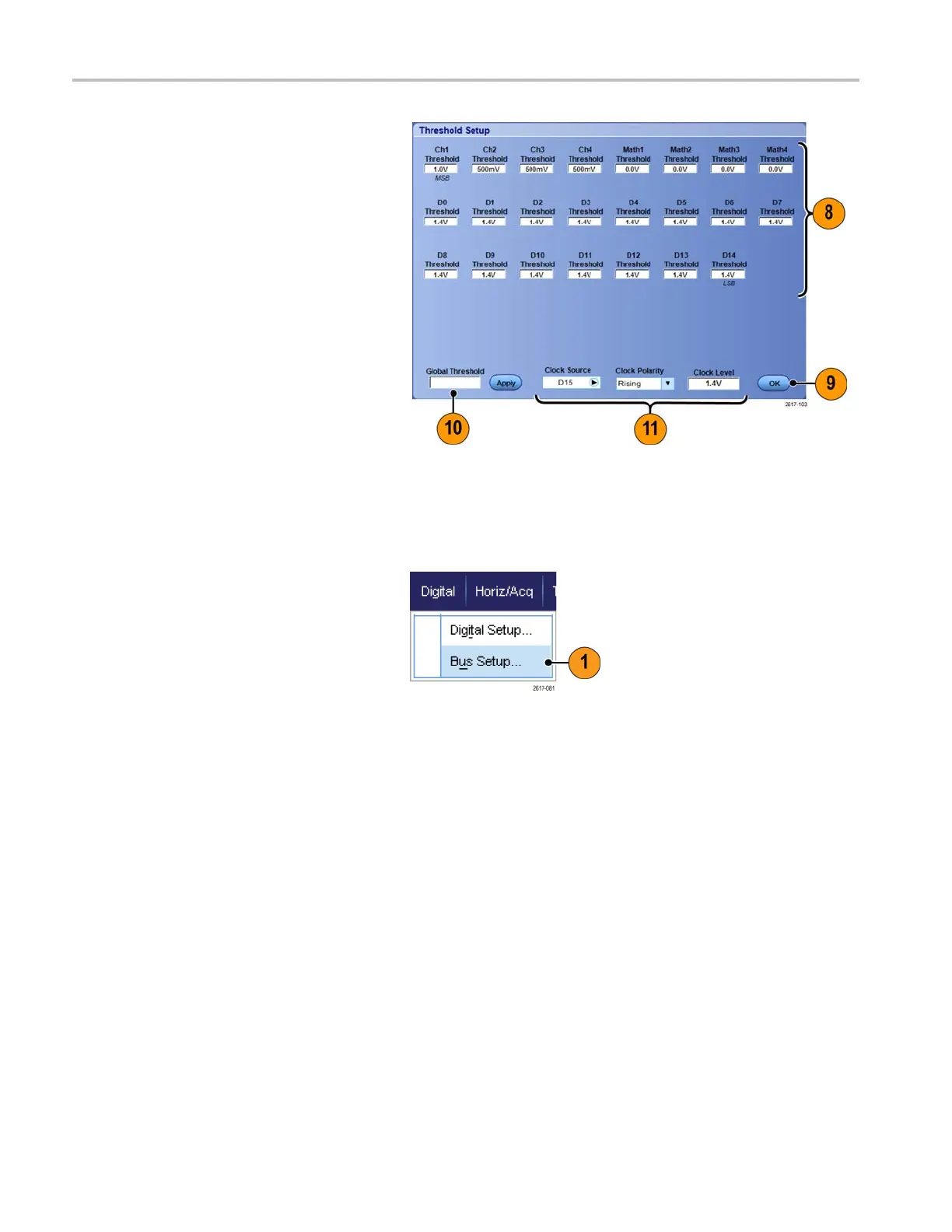

7. To set channel thresholds, click the
Thresholds Setup button.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 53
