SPG600 & SPG300 Sync Pulse G enerators Quick Reference Manual
System Menu
Pressing the S YSTEM button displays the S ystem menu. This menu lets you set
the system-related s ettings such as network parameters and output configuration.
Use the up (
Y)ordown(B) arrow button to scroll through the menu. Figure 20
shows the System menu diagram.
CONFIGURATION
To Configurat ion submenu
(page 26)
ENTER
CANCEL
GPI
ENTER
CANCEL
NETWORK
Information
Information
Setup
To Netw ork information submenu (page 22)
To Netw ork setup submenu (page 23)
ENTER
CANCEL
PRESET
To Preset submenu
(page 21)
ENTER
CANCEL
FRONT PANEL DISABLE
H Time Out: OFF ↵
Off 10 Minute
Immediately 30 Minute
1 Minute 1 Hour
Press the SYSTEM button
LCD CONTRAST
HIGH << 10 >> LOW
Adjust the display contrast
SYSTEM PARAMETER
Information
Information
Setup
To System information submenu (page 25)
To Syst em setup submenu (page 25)
ENTER
CANCEL
To GPI submenu
(page 24)

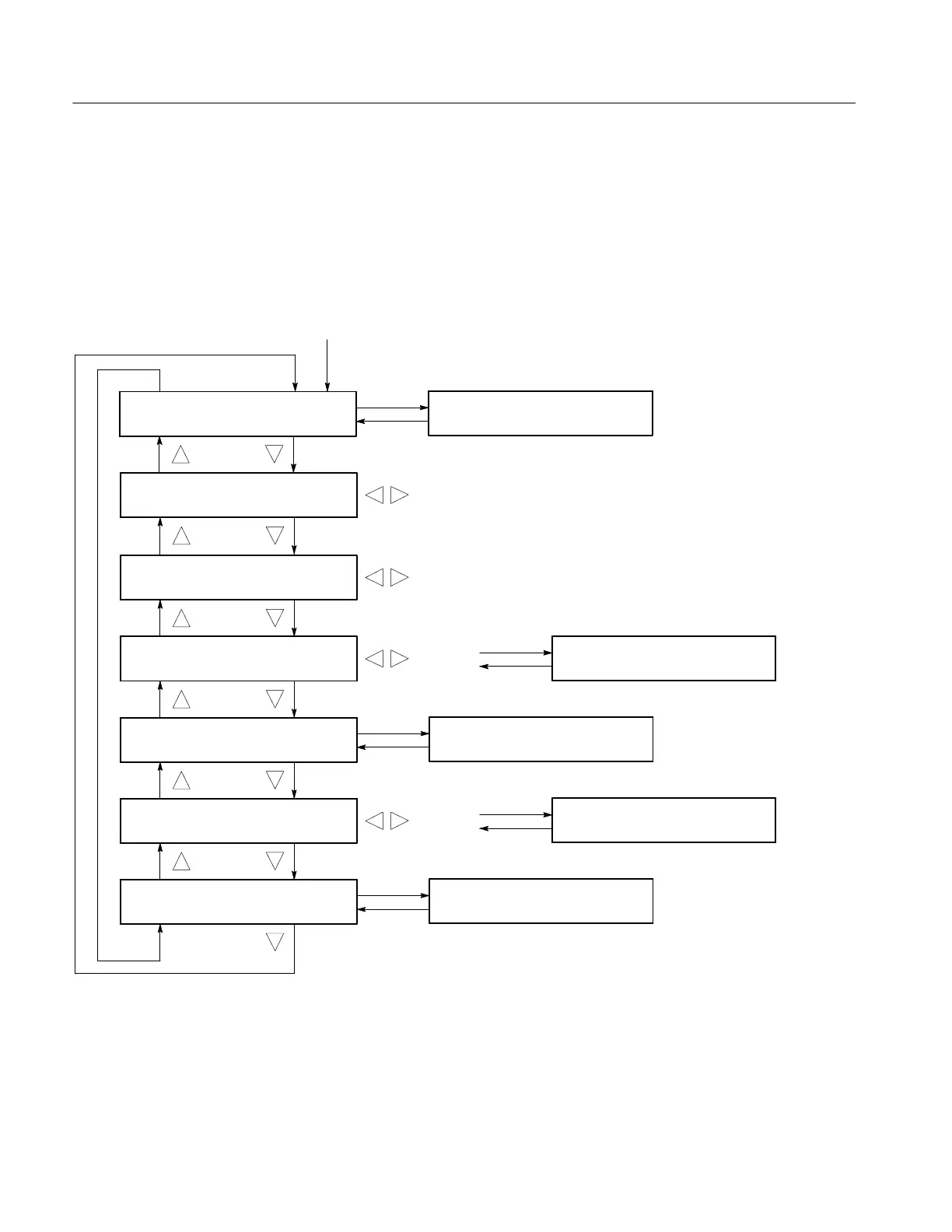

Figure 20: System menu diagram
