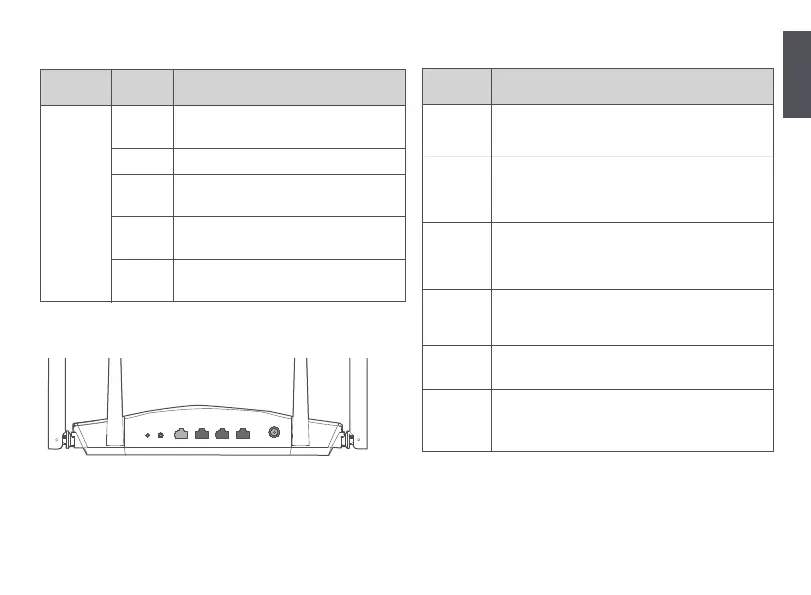

Jack, ports and buttons
Description
Jack/Port/
Button
Power jack.
Please use the included power adapter to connect this jack to a
power source for power supply.
POWER
Reset
WPS
WAN
1, 2
Used to restore the factory settings of the router.
Method: When the router is working normally, hold the button
down with a needle-like object for about 8 seconds, and then
release it when the LED indicator blinks fast. The router is reset.
Used to start the WPS negotiation of the router.
Method: Press the button, and the LED indicator blinks fast.
Within 2 minutes, enable the WPS function of the other
WPS-supported device to establish a WPS connection.
10/100/1000 Mbps auto-negotiation WAN port.
Used to connect to a modem or the Ethernet jack using an
Ethernet cable for internet access.
10/100/1000 Mbps auto-negotiation LAN port.
Used to connect to computers, switches or game machines, etc.
LED indicators
LED indicator
LED indicator
Status Description
Solid on
Blink slow
Blink fast for
3 seconds
Blink fast for
2 minutes
Off
The router fails to connect to the internet.
A device is connected to or disconnected from an
Ethernet port of the router.
The router is pending for or performing WPS
negotiation.
The system is faulty, or the router is not powered
on properly.
The system is starting up, or the router is already
connected to the internet.
10/100/1000 Mbps auto-negotiation Ethernet port.
It is a LAN port by default. When the IPTV function is enabled,
it can only serve as an IPTV port to connect to a set top box.
IPTV/3
WPSReset
WAN
1
2
IPTV/3
POWER
