Tenda D301 User Manual

Wireless Modem Router User Guide
- 79 -
Server IP Address: Specify the IP address of the remote syslog server.
Server UDP Port: Specify the UDP port of the remote syslog server.
Apply/Save: click to apply and save the system log settings.

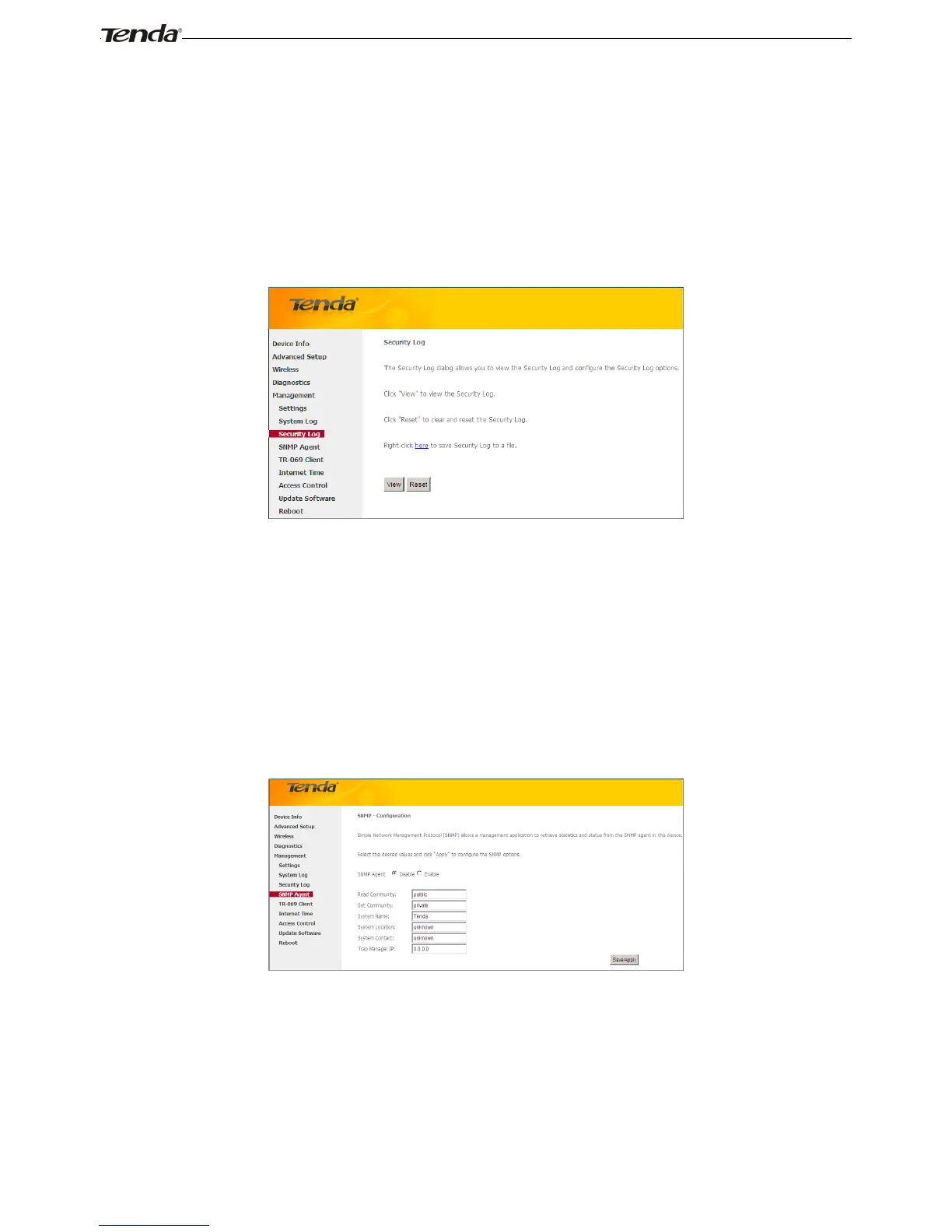

4.5.3 Security Log
The Security Log page allows you to view the Security Log and configure the Security Log options. You can also save
Security Log to a file.
View: Click to view the Security Log.
Reset: Click to clear and reset the Security Log.
4.5.4 SNMP Agent
Simple Network Management Protocol (SNMP) allows a management application to retrieve statistics and status from
the SNMP agent in this device.
SNMP Agent：Select “Enable” to activate the SNMP Agent feature or “Disable” to deactivate it.
Read Community: Specify a Read Community string. The default is public.
Set Community: Specify a Set Community string. The default is private.
System Name: Specify a descriptive system name.
System Location: Specify a system location.
System Contact: Specify a system contact.
Trap Manager IP: Specify the IP address of the Trap Manager.

Tenda D301 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	20 dBmW
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth	40 MHz
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Memory card slot(s)	No
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Data link protocols	6RD, DS-Lite, IPv6, IPv4 dual stack
Antennas quantity	2
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, SSID, WPA-PSK, WPA2-PSK, WPS
Product type	Tabletop router
Product color	White
LED indicators	DSL, System, USB, WAN, WLAN, WPS
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	G.994, ANSI T1.413, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.992.3, ITU-T G.992.5, CE, FCC, RoHS
Cables included	LAN (RJ-45), Phone (RJ-11)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	105.2 mm
Width	157.8 mm
Height	29.4 mm
