M-LVDS EVM Kit Contents
1-4
The M-LVDS Evaluation Module
Table 12. Receiver Input Voltage Threshold Requirements
Receiver Type Low High
Type-1 2.4 V V
ID
0.05 V 0.05 V V
ID
2.4 V
Type-2 2.4 V V
ID
0.05 V 0.15 V V
ID
2.4 V

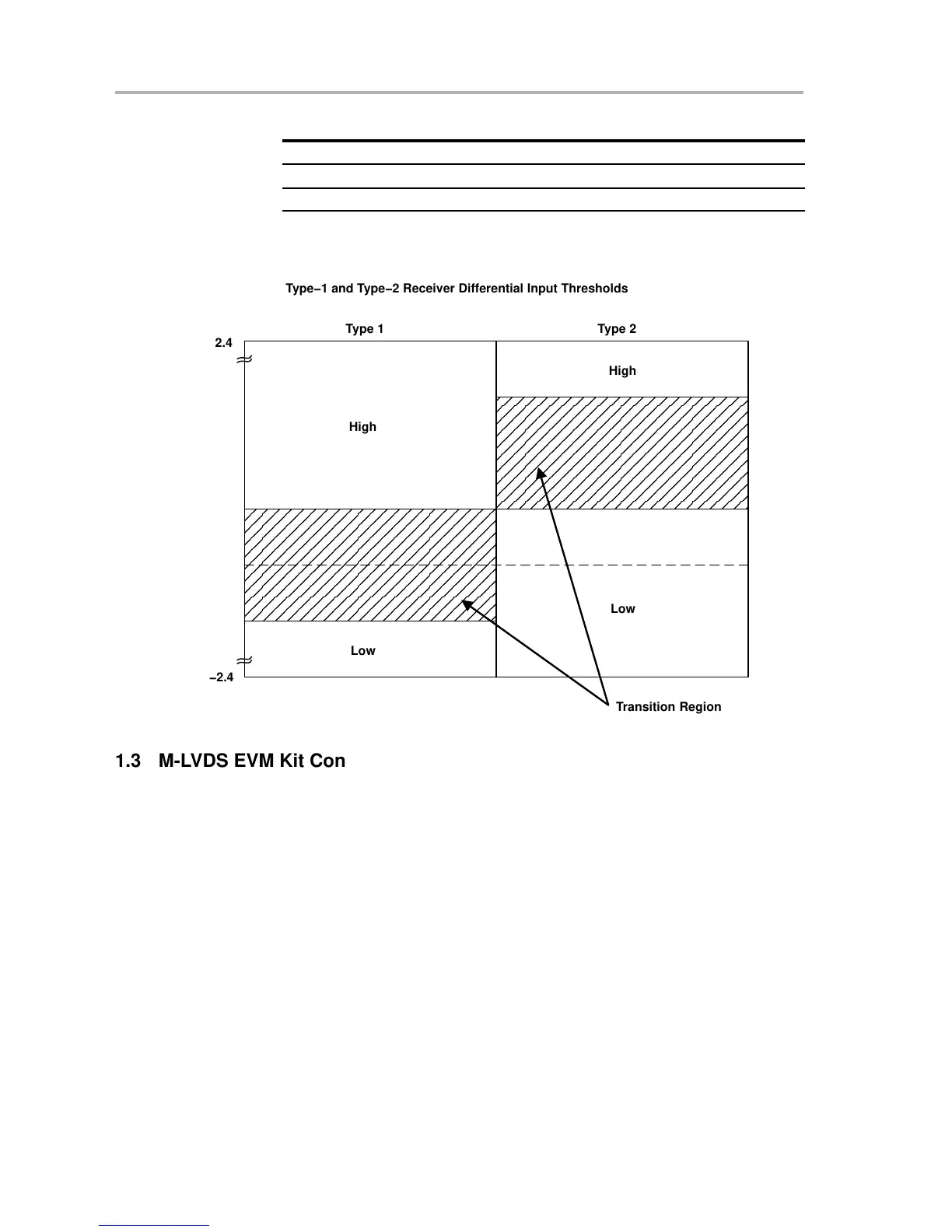

Figure 12. Expanded Graph of Receiver Differential Input Voltage Showing Transition
Region
0.05
0
0.05
0.1
0.15
VID (V)
ÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎ
Low
High
Low
High
Transition Region
Type1 and Type2 Receiver Differential Input Thresholds
Type 1 Type 2
2.4
2.4
1.3 M-LVDS EVM Kit Contents
The M-LVDS EVM kit contains the following:
J M-LVDS EVM PWB with SN65MLVD201D and SN65MLVD207D
installed (6424409B)
J Additional devices SN65MLVD200A, SN65MLVD202A,
SN65MLVD203, SN65MLVD204A, SN65MLVD205A,
SN65MLVD206
J M-LVDS EVM kit documentation (users guide)
J SN65MLVD20x data sheets, Multipoint-LVDS Line Driver and
Receiver, (SLLS573 and SLLS558)
