Texecom Premier External TD User Manual

5 INS352-5
JP1: Pulse Count

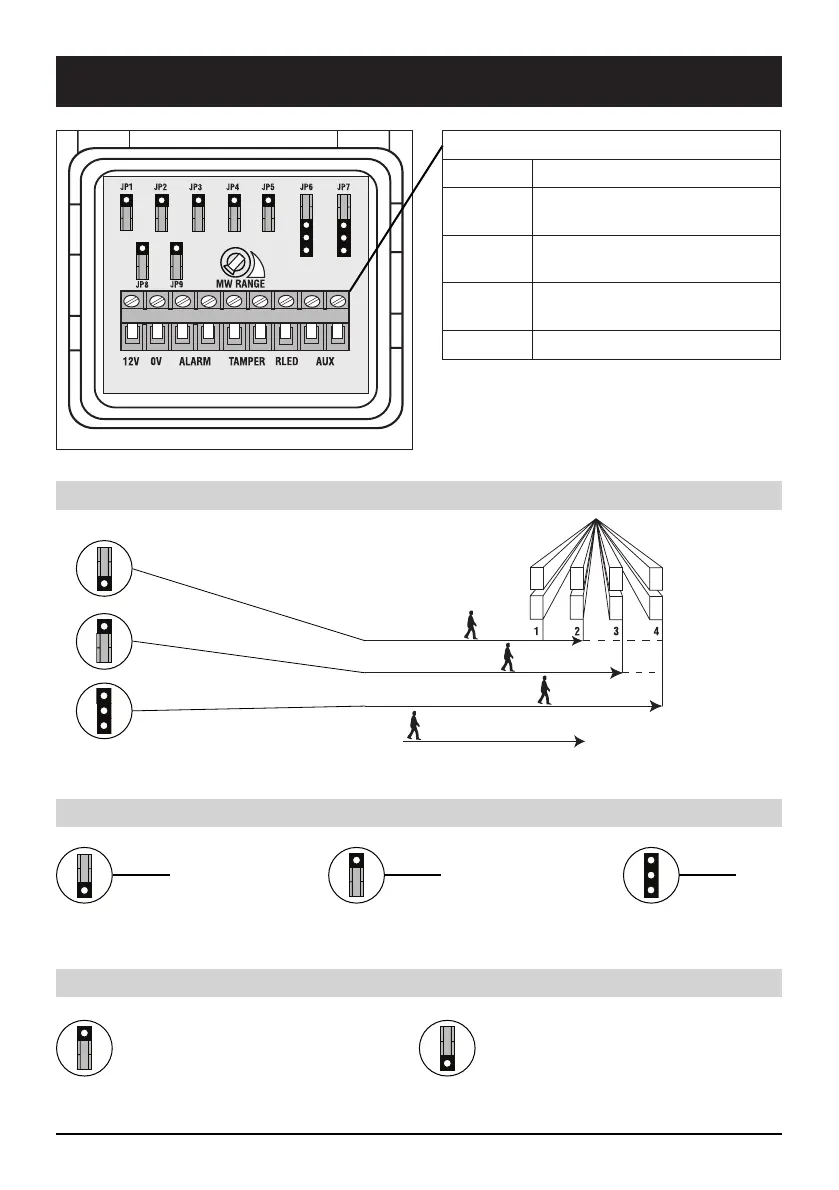

4. Wiring the Unit
0.3 - 3.0m/s
3
2
4
JP2: Sensitivity
MEDIUMHIGH LOW
JP3: Alarm
NO: alarm relay normally open.NC: alarm relay normally closed.
TERMINAL BLOCK
12V & 0V:
9-16 V
DC.
ALARM:
NO/NC (selectable) relay output.
18 Ω, 50V
DC, 100mA Max.
TAMPER:
NC Relay output.
18 Ω, 50V
DC, 100mA Max.
RLED: 0V: LED off.
12V or No Connection: LED on.
AUX:
NC relay input.
NC = Normally Closed, NO = Normally Open
