Timberk AC TIM 09HE P4 User Manual

www.timberk.com • Electric air conditioner
5


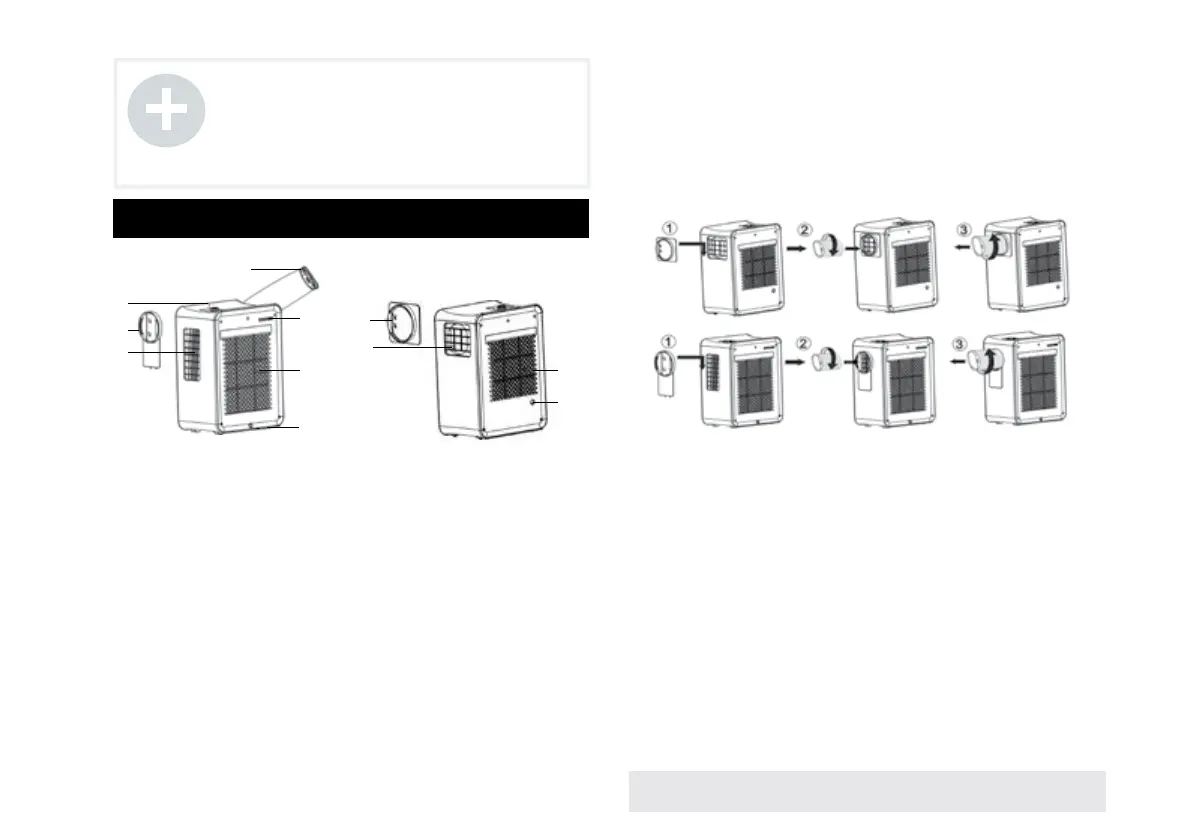

Installation of air outlet hose (Fig. 5)
1. Prior to operation of the unit take off the removable cover and get
the air outlet hose, then insert it in the hole.
2. Rotate the air outlet hose in the direction, indicated by arrow 2 and
take it out from the removable grill.
3. Rotate the air outlet hose in the direction, indicated by arrow 3 and
connect it to the removable grill.
Fig. 5

The manufacturer reserves the right to make
changes in the design, scope of delivery, product
manufacturing technology, as well as change its
technical characteristics to improve its consumer
and technical properties without prior notice.
Fig. 5.
Installation of the hose in cooling / heating modes (Fig. 6)
To switch the air conditioner to heating it is necessary to install the hose
to the side, where cold air is coming out. To switch the air conditioner
to cooling it is necessary to install the hose to the side, where warm air
is coming out.
To switch the unit to the required mode (cooling/heating):
Disconnect the removable grill and the air outlet hose, as shown by the
arrow in Fig. 6 – A, then interchange their position (B) and connect to
the unit. Final structure is shown in Fig.6 – C.
1. Control panel
2. Air-outlet
3. Removable grille
4. Nozzle
5. Air inlet grille
6. Condensation drain hole
7. Place for remote control
8. Adapter of air duct
9. Air outlet
10. Condensation drain hole
11. Air inlet grille
Fig. 3 Fig. 4
()8
()9
(1 )1
(1 )0
(1)
(3)
(2)
(4)
()7
()5
()6
Fig. 3.
Fig. 4.
