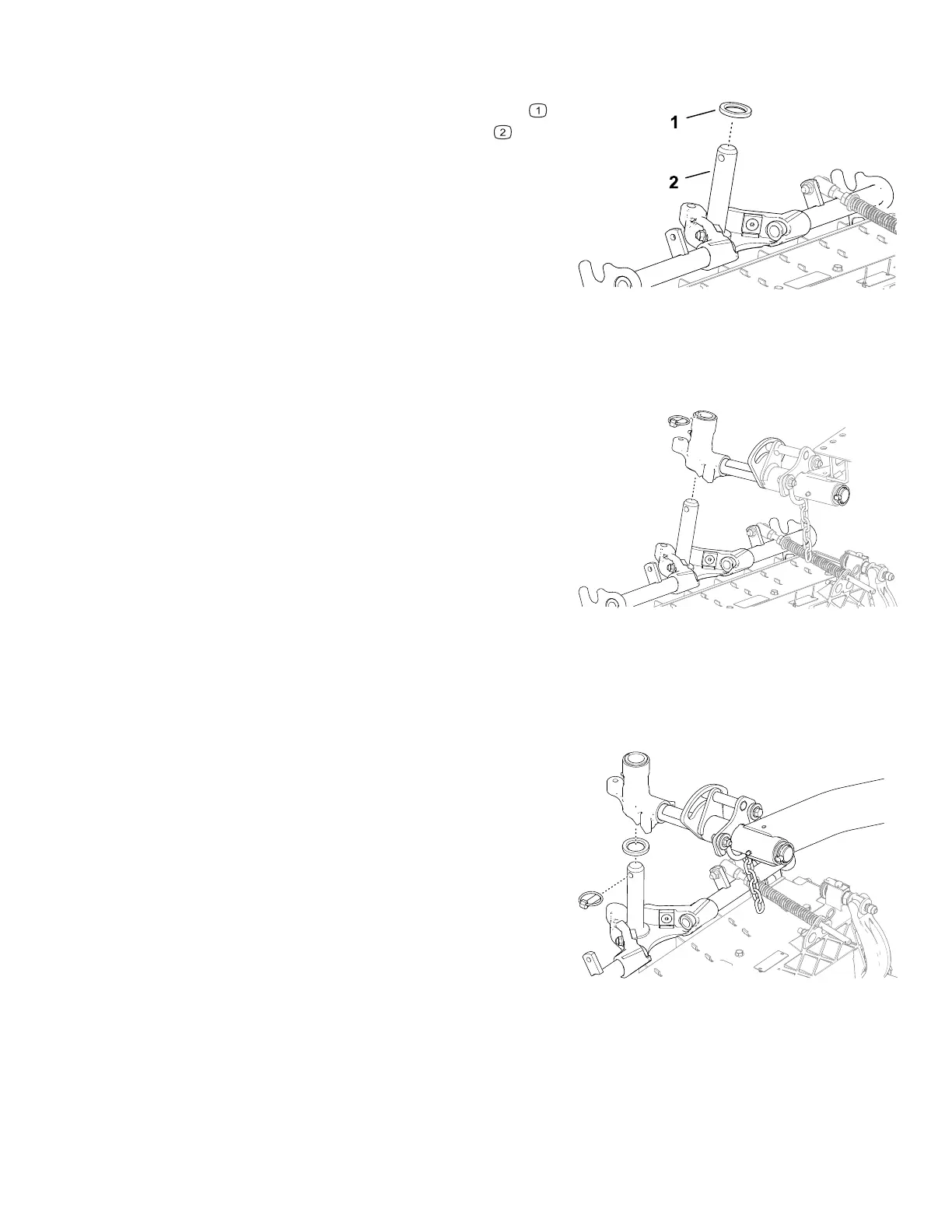

Preparing to Install the Cutting Units
G419227
1. Ensure that the countersunk thrust washer
is inserted over the carrier-frame shaft .
2. Grease the carrier-frame shaft.
3. Repeat this procedure for the other cutting
units.
Installing the Front Cutting Units
G419230
Install the front cutting units as shown.
Installing the Rear Cutting Units to the Lift Arms
Cutting Units adjusted for a 1.2 cm (3/4 inch) or Higher Height of Cut
G420567
Install the rear cutting units to the lift arms as
shown.
3466-702A Page 3–9 Setup: Installing the Cutting Units
