Product Overview

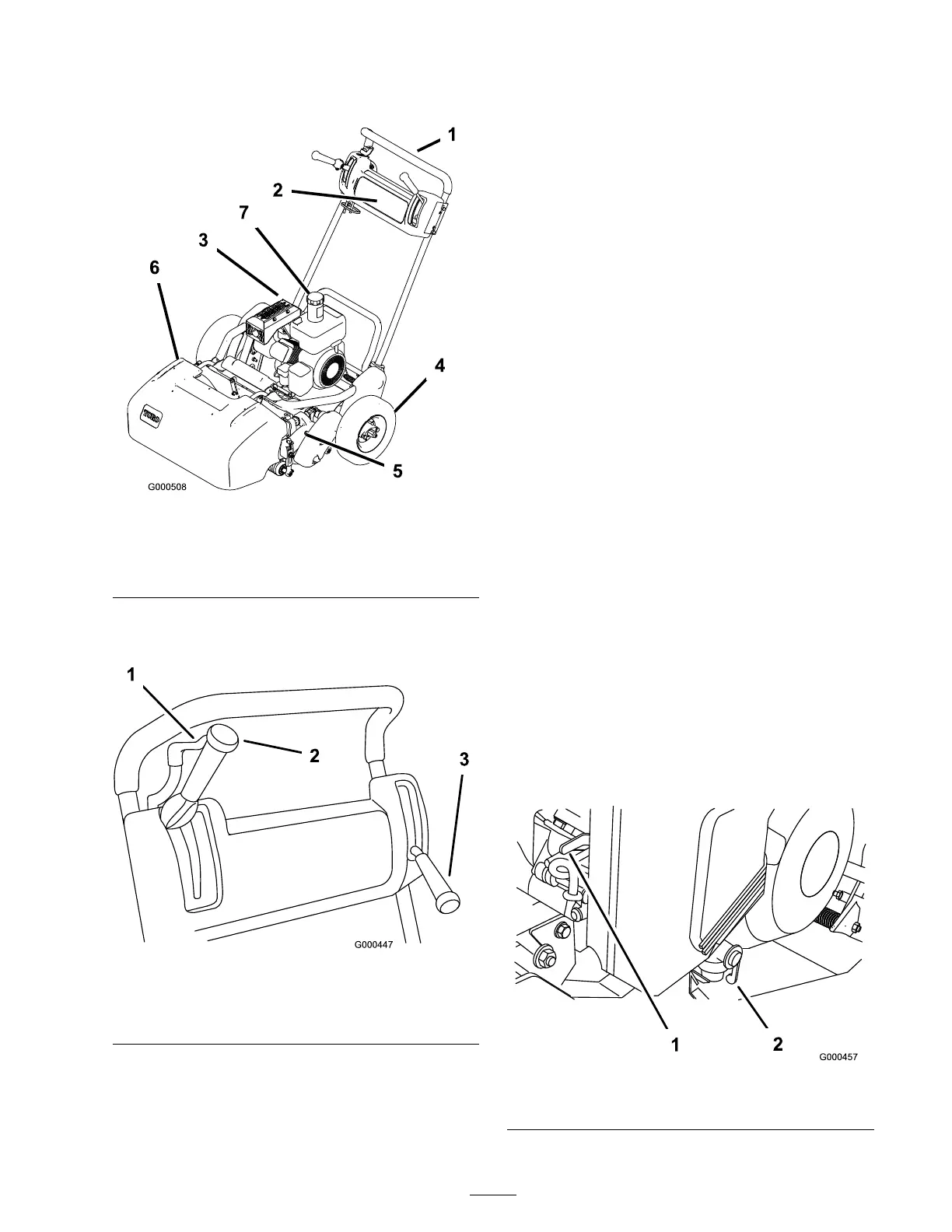

Figure 12
1. Handle
5. Cutting unit
2. Control panel 6. Grass basket
3. Engine
7. Fuel tank
4. Transport wheels
Controls
Figure 13
1. Throttle control 3. Service/parking brake
2. Traction & reel drive
engagement lever
Throttle Control
T he throttle control ( Figure 13 ) is located on rear
right side of control panel. Lev er connects to and
operates throttle linkag e to carburetor . Engine
speed can be v aried from 2400 RPM to 3600 RPM.
Traction and Reel Drive Engagement
Lever
T he traction and reel dri v e eng ag ement lev er
( Figure 13 ) is located on front right side of control
panel. T raction lev er has tw o positions: Neutral
and F orw ard. Pushing lev er forw ard eng ag es
traction dri v e .
T he reel dri v e lev er has tw o positions: Eng ag e and
Diseng ag e . Mo v e top of lev er to the left to eng ag e
reel or bac k to neutral to diseng ag e reel.
Service/Parking Brake
T he ser vice/parking brak e ( Figure 13 ) is located
on left front side of control panel. Pulling the lev er
bac k o v er center will set the parking brak e . Brak e
m ust be released before traction dri v e is eng ag ed.
Operator Presence Control
T he optional operator presence control m ust be
eng ag ed before eng aging the traction lev er or the
engine will stop .
Choke Lever
T he c hok e lev er ( Figure 14 ) is located on left
front of engine . Lev er has tw o positions: R un and
Chok e . Mo v e the c hok e lev er to the half-open
position when star ting a cold engine . After engine
star ts mo v e lev er to R un position.
Figure 14
1. Choke lever 2. Fuel shut-off valve
15
