FlywheelInstallation(continued)
Figure20
CrankcaseBreatherSystemReplacement
CrankcaseBreatherSystemRemoval

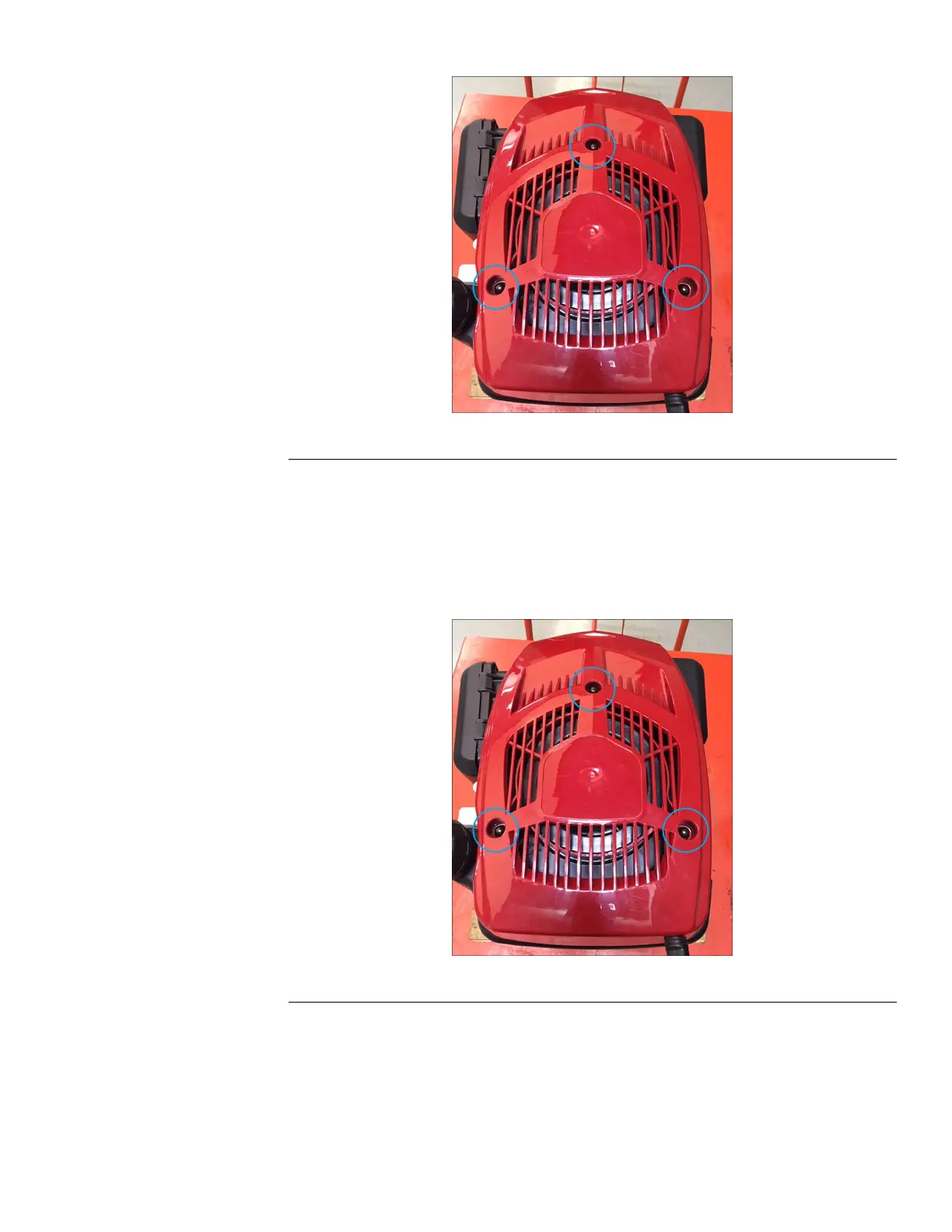

1.Removethe3(10mm)acornnutssecuringtherecoilassemblytothetopof
theengine.Removetherecoilassembly.
Figure21
2.Removethefueltankventhosefromthehoseretainerontheengineshroud.
Movethecarboncanistertothesideoftheengine.
1P65F-2ServiceManual
Page4–13
EngineTopEnd:ServiceandRepairs
3429-270RevA
