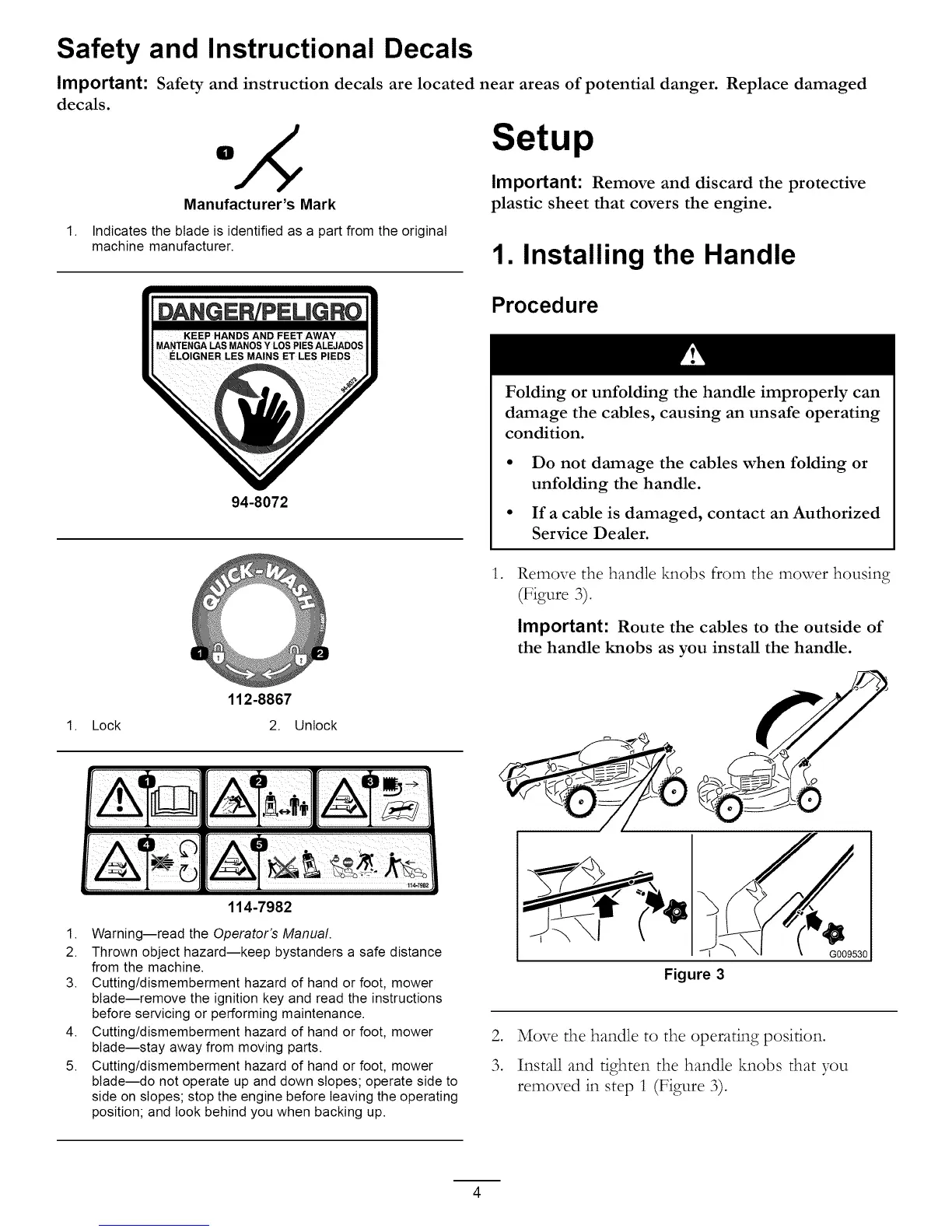

Safety and Instructional Decals
Important: Safety and instruction decals are located near areas of potential danger.
decals.
Manufacturer's Mark
1 Indicates the blade is identified as a part from the original
machine manufacturer.
Replace damaged
Setup
Important: Remove and discard the protective
plastic sheet that covers the engine.
1. Installing the Handle
Procedure
94-8072
Folding or unfolding the handle improperly can
damage the cables, causing an unsafe operating
condition.
Do not damage the cables when folding or
unfolding the handle.
If a cable is damaged, contact an Authorized
Service Dealer.
1
2.
3.
4.
5.
Lock
112-8867
2. Unlock
114-7982
Warning--read the Operator's Manual.
Thrown object hazard--keep bystanders a safe distance
from the machine.
Cutting/dismemberment hazard of hand or foot, mower
blade--remove the ignition key and read the instructions
before servicing or performing maintenance.
Cutting/dismemberment hazard of hand or foot, mower
blade--stay away from moving parts.
Cutting/dismemberment hazard of hand or foot, mower
blade--do not operate up and down slopes; operate side to
side on slopes; stop the engine before leaving the operating
position; and look behind you when backing up.
,
Remove the handle Maobs from the mower housing
(Figure 3).
Important: Route the cables to the outside of
the handle knobs as you install the handle.
G009530
Figure 3
2. Move the handle to the operating position.
3. Install and tighten the handle knobs that you
removed in step 1 (Figure 3).
