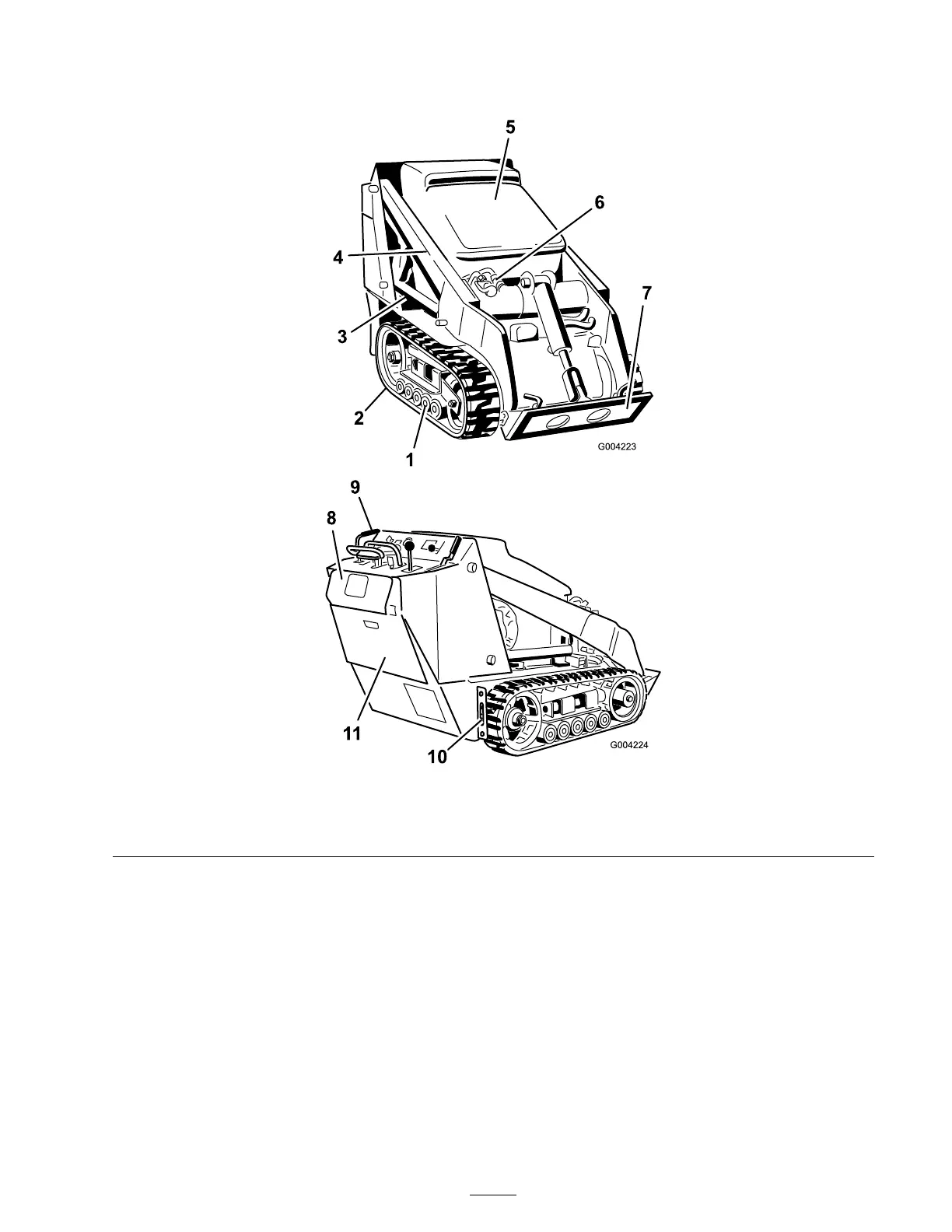

Product Overview
Figure 8
1. Road wheels 4. Loader arms 7. Mount plate 10. Tie-down/lift loop
2. Track 5. Hood 8. Reverse safety plate
11. Rear access cover
3. Lift cylinder 6. Auxiliary hydraulic couplers 9. Control panel
15
