Toro 323 User Manual

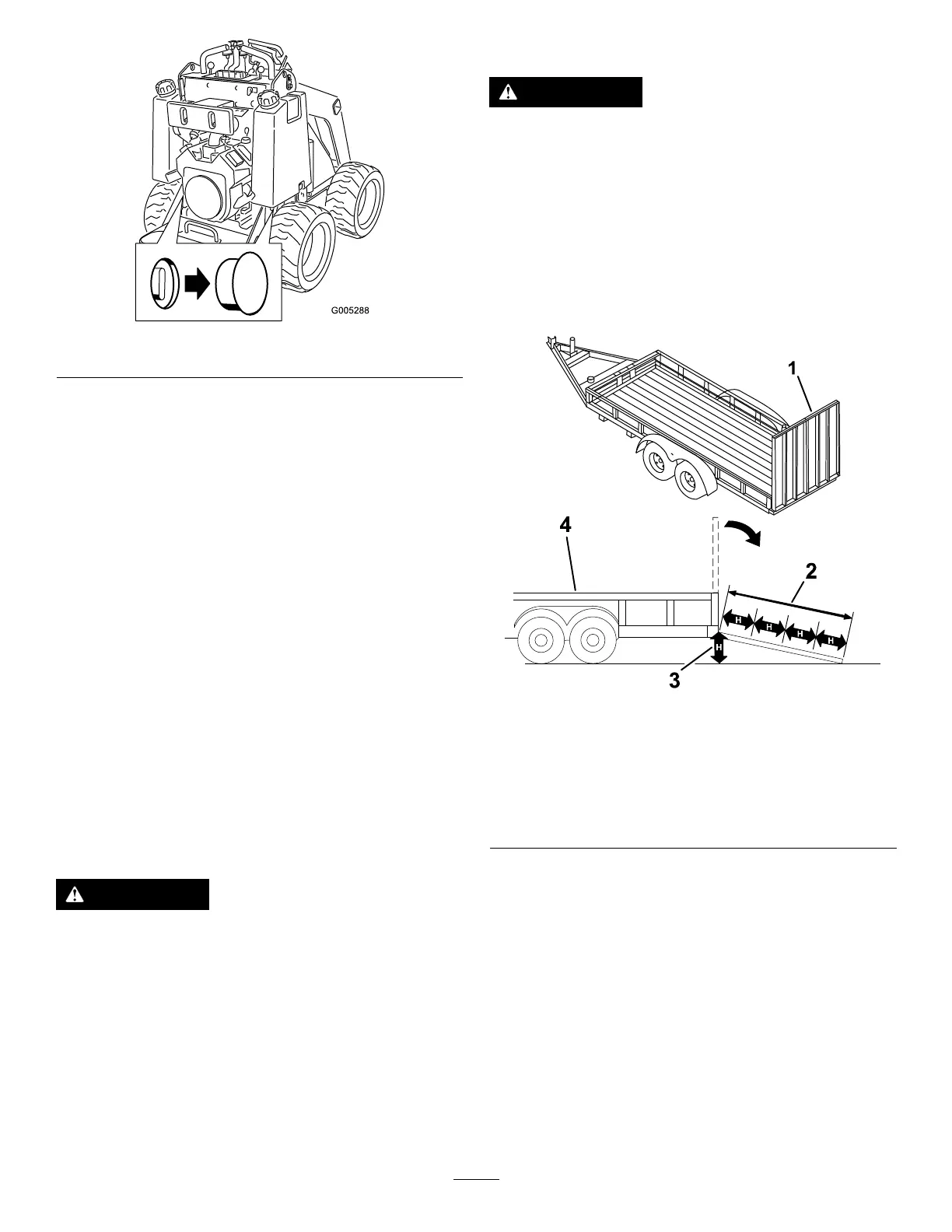

g005288
Figure10
3.Loosenthejamnutoneachtowvalve.
4.Turneachvalvecounterclockwise1turnwitha
hexwrenchtoopenthem.
5.Towthemachineasrequired.
Important:Donotexceed4.8km/h(3mph)
whentowing.
6.Afterrepairingthemachine,closethetowvalves
andtightenthejamnuts.
Important:Donotovertightenthetow
valves.
7.Replacetheplugs.
HaulingtheMachine
Useaheavy-dutytrailerortrucktohaulthemachine.
Useafull-widthramp.Ensurethatthetrailerortruck
hasallthenecessarybrakes,lighting,andmarkingas
requiredbylaw.Pleasecarefullyreadallthesafety
instructions.Knowingthisinformationcouldhelp
youorbystandersavoidinjury.Refertoyourlocal
ordinancesfortrailerandtie-downrequirements.
WARNING
Drivingonthestreetorroadwaywithout
turnsignals,lights,reectivemarkings,ora
slow-moving-vehicleemblemisdangerous
andcanleadtoaccidentscausingpersonal
injury.
Donotdrivethemachineonapublicstreet
orroadway.
SelectingaTrailer
WARNING
Loadingamachineontoatrailerortruck
increasesthepossibilityoftip-overandcould
causeseriousinjuryordeath(Figure11).
•Useonlyfull-widthramps.
•Ensurethatthelengthoframpisatleast4
timesaslongastheheightofthetraileror
truckbedtotheground.Thisensuresthat
rampangledoesnotexceed15degreeson
atground.
g229507
Figure11
1.Full-widthramp(s)in
stowedposition
3.H=heightofthetraileror
truckbedtotheground
2.Rampisatleast4times
aslongastheheightof
thetrailerortruckbedto
theground
4.Trailer
18

Toro 323 Specifications

General

Brand	Toro
Model	323
Category	Compact Loader
Language	English

Summary

Safety

General Safety

Provides general safety instructions to avoid serious injury or death during operation and maintenance.

Buried Utility Lines Warning

Warns about potential shock or explosion from digging into buried utility lines.

Safety and Instructional Decals

Controls

Operation

Before Operation Safety

General safety precautions to take before operating the machine, including familiarization and checks.

Fuel Safety

Fuel Safety and Handling

Details safety measures for handling flammable fuel, including ignition sources, container use, and storage.

Performing Daily Maintenance

Performing Daily Maintenance

During Operation

During Operation Safety

Safety guidelines for operating the machine, including load handling, rated capacity, and platform use.

During Operation Safety

General Operation and Slope Safety

Emphasizes operator attention, control operation, clothing, and critical safety advice for operating on slopes.

Starting the Engine

Starting the Engine Procedure

Detailed steps for starting the engine, including choke, throttle usage, and starter limitations.

Driving the Machine

Driving the Machine and Throttle Use

Shutting Off the Engine

Engine Shutdown Procedure

Steps for safely shutting off the engine, including idling, key removal, and emergency shutdown.

Using Attachments

Attachment Installation Procedure

Attachment Installation Warning

Crucial warning about ensuring quick-attach pins are fully seated to prevent detachment and potential injury.

Connecting the Hydraulic Hoses

Hydraulic Hose Safety and Connection

Safety warnings for hydraulic fluid and procedures for connecting hoses, including pressure relief.

Removing an Attachment

Attachment Removal Procedure

After Operation

After Operation Safety and Cleaning

Safety precautions after operation, including cooling, cleaning debris, and general machine condition.

Hauling the Machine

Machine Hauling and Trailer Safety

Safety advice for hauling the machine, including trailer requirements, ramp usage, and legal compliance.

Loading the Machine

Machine Loading Procedure and Warnings

Step-by-step loading guide and critical warnings regarding tip-over risk, ramp operation, and load positioning.

Unloading the Machine

Unloading the Machine Procedure

Maintenance

Maintenance Safety

Essential safety precautions to follow before performing any maintenance on the machine.

Recommended Maintenance Schedule

Lists maintenance procedures and their recommended service intervals for various machine components.

Maintenance Schedule Details

Maintenance Schedule Details

Details maintenance tasks for 200, 400, 500, 1500-hour intervals, yearly, and before storage, including filter replacements.

Pre-Maintenance Procedures

Cylinder Locks: Installation and Use

Lubrication

Greasing the Machine Procedure

Engine Maintenance

Engine Maintenance Safety

Safety precautions specific to engine maintenance, such as shutting off the engine and keeping away from hot surfaces.

Servicing the Air Cleaner

Servicing the Carbon Canister

Servicing Carbon Canister Filters

Servicing the Engine Oil

Engine Oil Check and Change

Procedure for checking the engine oil level and detailed steps for changing the engine oil and filter.

Servicing the Spark Plug(s)

Spark Plug Service and Removal

Checking the Spark Plug

Spark Plug Check and Installation

Fuel System Maintenance

Fuel Safety and Fuel Filter Change

Draining the Fuel Tank(s)

Fuel Tank Draining Procedure

Electrical System Maintenance

Electrical System Safety and Battery Service

Battery Removal Warning

Charging the Battery

Battery Charging Procedure

Cleaning the Battery

Installing the Battery

Battery Installation Procedure

Drive System Maintenance

Tire Pressure and Wheel-Lug Nut Checks

Hydraulic System Maintenance

Hydraulic System Safety and Pressure Relief

Safety warnings for hydraulic fluid and procedures for relieving hydraulic pressure before maintenance.

Hydraulic Fluid Specifications

Checking the Hydraulic-Fluid Level

Checking Hydraulic Fluid Level

Procedure for checking the hydraulic fluid level using the dipstick and adding fluid if low.

Replacing the Hydraulic Filter

Hydraulic Filter Replacement

Changing the Hydraulic Fluid

Changing Hydraulic Fluid Procedure

Cleaning

Removing Debris from Machine

Storage

Storage Safety and Preparation

Troubleshooting

Engine and Starter Troubleshooting

Addresses issues with the starter not cranking and the engine not starting or running, with solutions.

Loader Arm Lowering Troubleshooting

Engine Performance and Cooling Troubleshooting

Machine Operation Troubleshooting
