ProductOverview

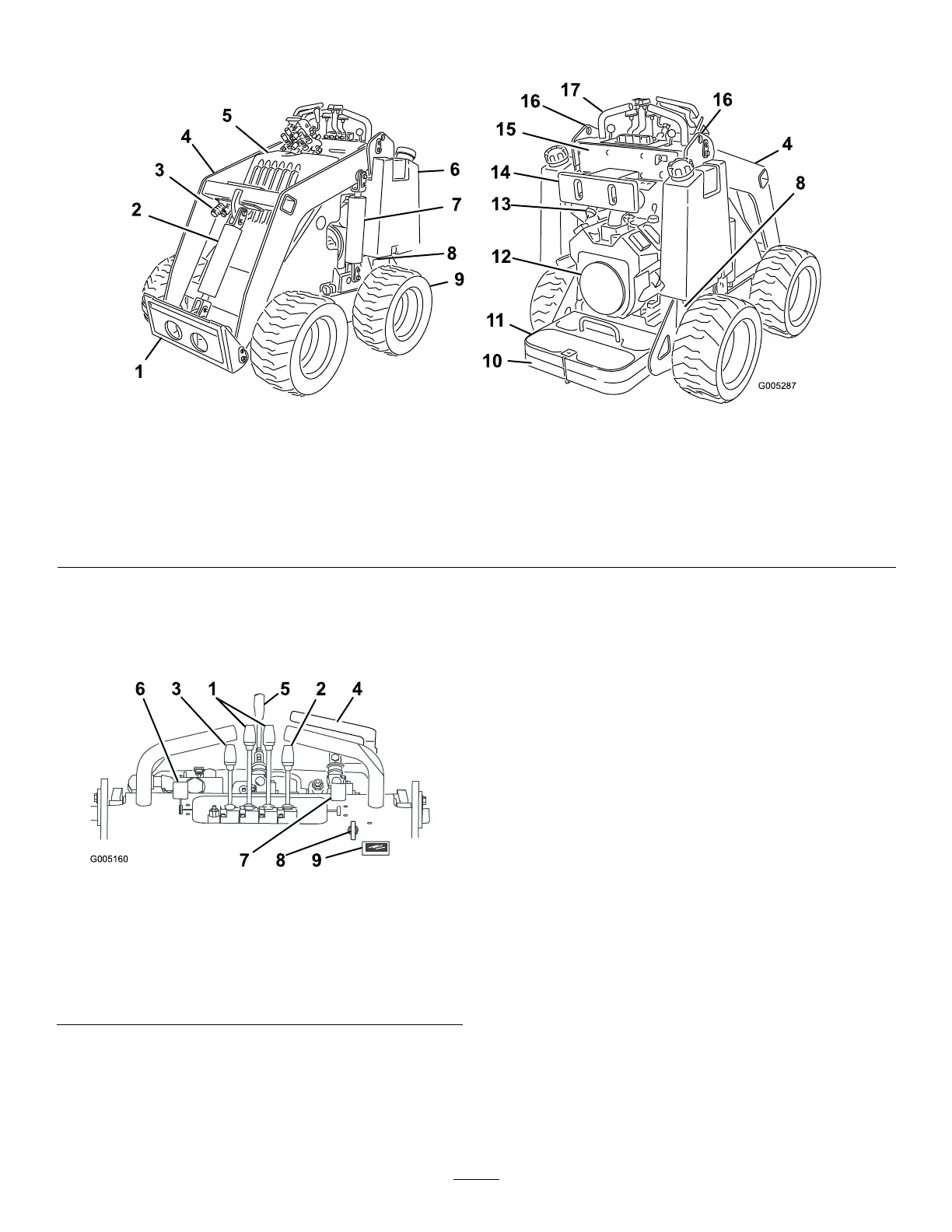

g005287
Figure4
1.Mountplate6.Fueltank
11.Counterweight16.Liftpoints
2.Tiltcylinder
7.Liftcylinder
12.Engine17.Handle
3.Auxiliaryhydrauliccouplers8.Towvalve13.Aircleaner
4.Loaderarms9.Wheel14.Thighsupport
5.Hood
10.Operatorplatform15.Controlpanel
Controls
ControlPanel
g005160
Figure5
1.Traction-controllevers6.Throttlelever
2.Attachment-tiltlever
7.Chokelever
3.Loader-armlever8.Keyswitch
4.Auxiliary-hydraulicslever
9.Hourmeter/tachometer
5.Speed-selectorlever
KeySwitch
Thekeyswitch,usedtostartandshutofftheengine,
has3positions:OFF,RUN,andSTART.Referto
StartingtheEngine(page15).
ThrottleLever
Movethecontrolforwardtoincreasetheenginespeed
andrearwardtodecreasespeed.
ChokeLever
Beforestartingacoldengine,movethechokelever
forward.Aftertheenginestarts,regulatethechoke
tokeeptheenginerunningsmoothly.Assoonas
possible,movethechokeleverallthewayrearward.
Note:Awarmenginerequireslittleornochoking.
Traction-ControlLevers
•Tomoveforward,movethetraction-controllevers
forward.
•Tomoverearward,movethetraction-controllevers
rearward.
•Toturn,movetheleverlocatedonthesideyou
wanttoturnbacktowardtheNEUTRALposition
whilekeepingtheotherleverengaged.
Note:Thefartheryoumovethetraction-control
leversineitherdirection,thefasterthemachine
movesinthatdirection.
•Tosloworstop,movethetraction-controllevers
totheNEUTRALposition.
