27
HDX112A
HDX113A

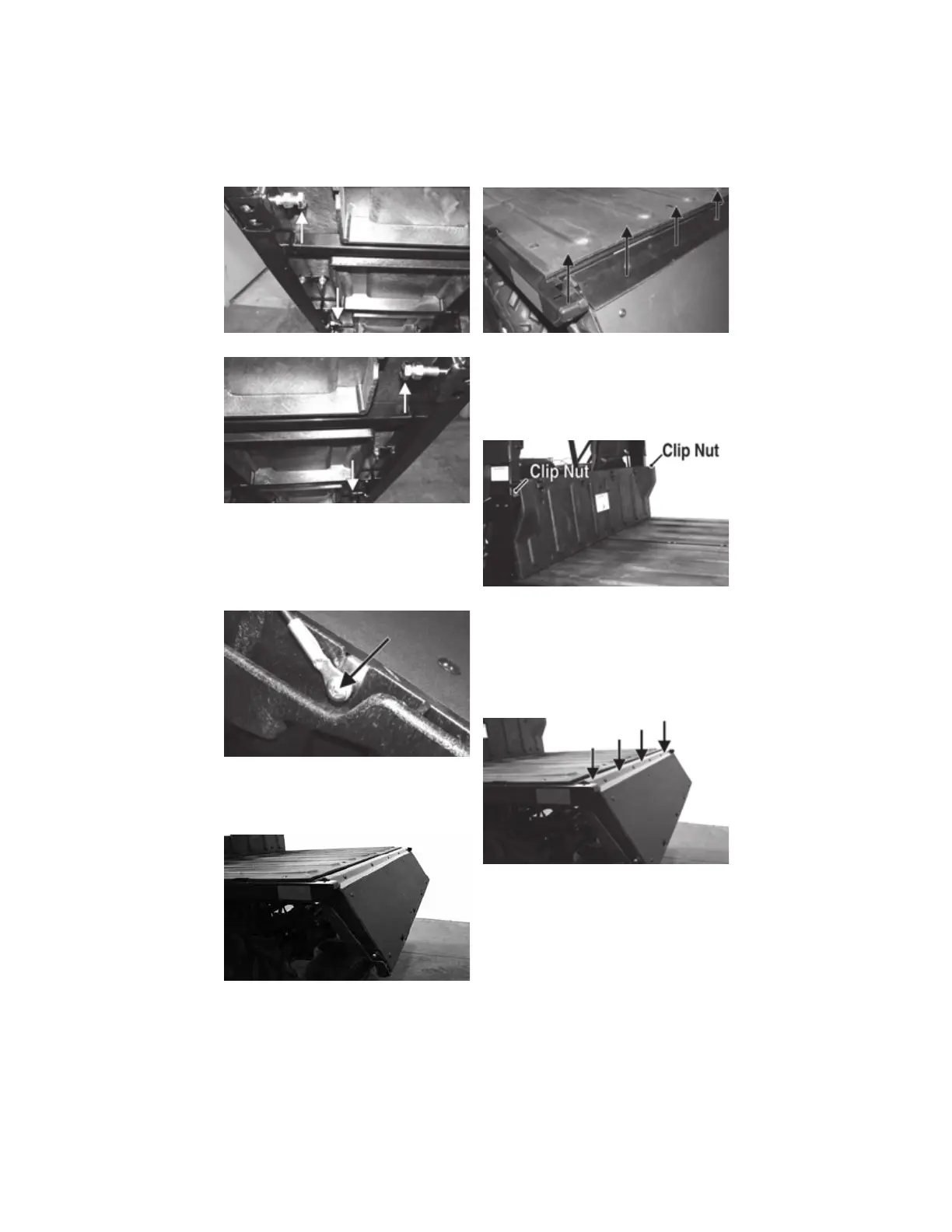

3. Open the tailgate and remove the
machine screws securing the stop-
cables to the tailgate. Note the correct
orientation of the bushings to the
cable ends and tailgate.
HDX114A
4. Lift off the left and right cargo box
panels; then remove the tailgate from
the cargo bed.
HDX117
HDX115A
5. Remove the stake pocket retaining
bolts, jam nuts, and forward tie bolt
clip nuts and secure in a safe place
with the machine screws and bush-
ings from the tailgate.
HDX116A
To convert flat-bed to cargo box, use the
following procedure.
1. Set the tailgate into position in the
cargo bed; then lift the cargo bed
making sure the tailgate clears any
receiver hitch attachments.
HDX117A
2. Install the stake pocket retaining bolts
and jam nuts leaving clearance to
install side panel stakes.
To Next Page
