28
HDX118A

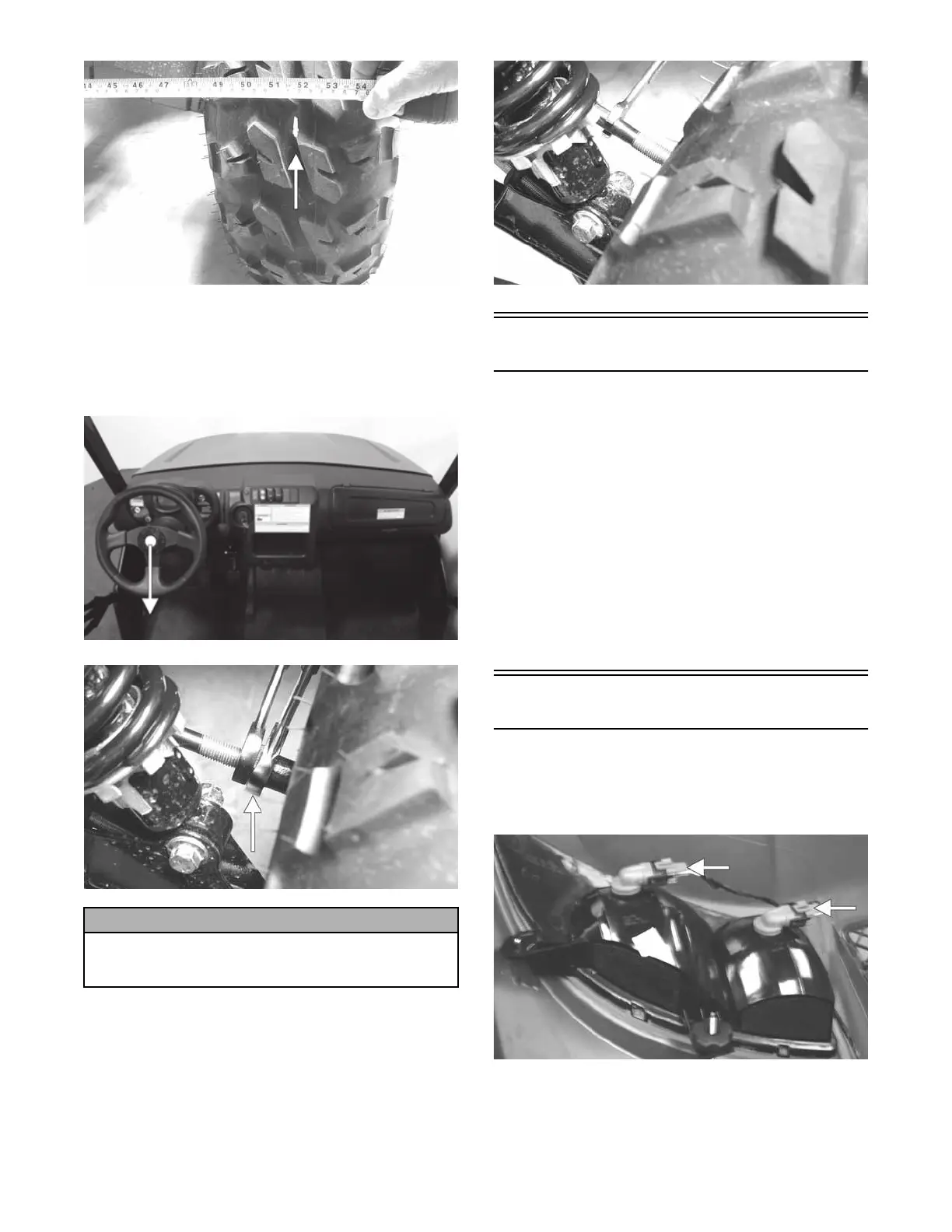

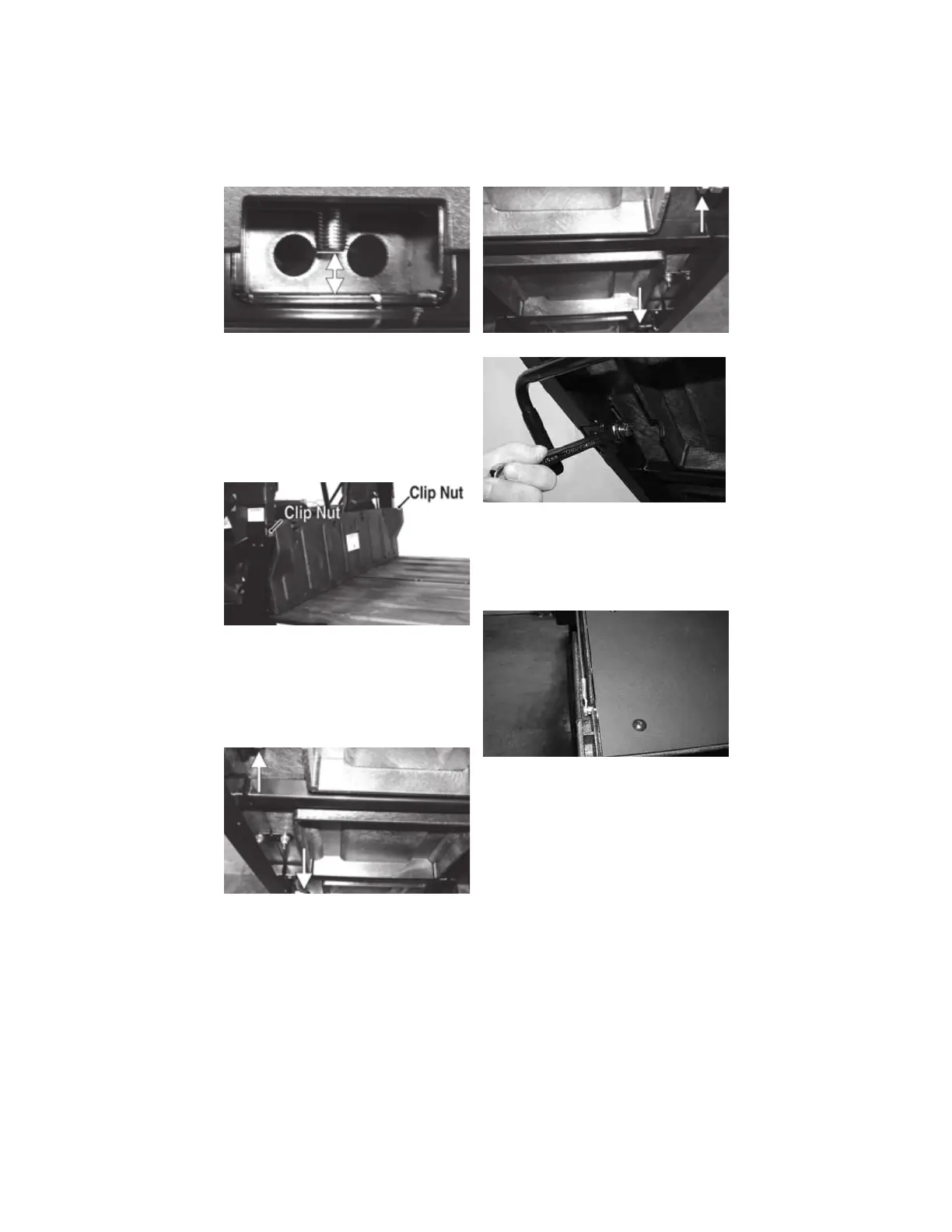

3. Set the left and right cargo box side
panels into place on the cargo bed
engaging the stakes into the side
pockets.
4. Install the left and right side clip nuts
onto the frame; then install and
tighten the forward tie bolts securely.
HDX116A
5. Tighten the four stake pocket retain-
ing bolts to 34 N-m (25 ft-lb) making
sure the cargo box side panels are
resting firmly on the cargo bed; then
tighten the jam-nuts to 20 N-m (15 ft-
lb). Lower the cargo box.
HDX112A
HDX113A
HDX122
6. Secure the tailgate stop-cables to the
tailgate with the machine screws and
bushings making sure the bushing
engages the cable as shown. Tighten
to 2.7 N-m (24 in.-lb).
HDX123
Cargo Box Tie Downs
The cargo box has numerous tie down
locations around the top perimeter.
Always secure cargo with tie down straps
to avoid shifting or damage to cargo.
