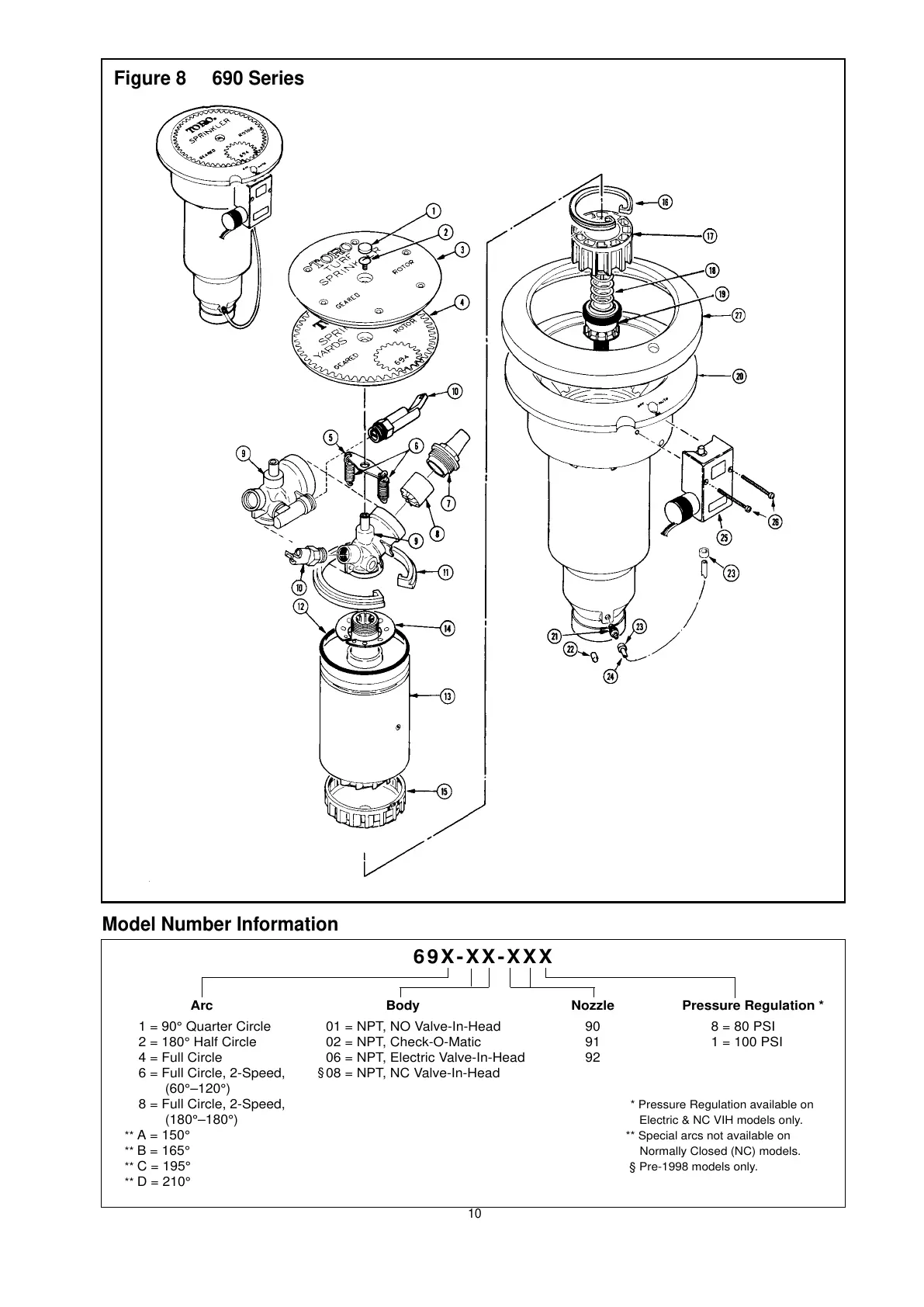

Figure 8 690 Series
69X-XX-XXX
Arc Body Nozzle Pressure Regulation *
1 = 90° Quarter Circle 01 = NPT, NO Valve-In-Head 90 8 = 80 PSI
2 = 180° Half Circle 02 = NPT, Check-O-Matic 91 1 = 100 PSI
4 = Full Circle 06 = NPT, Electric Valve-In-Head 92
6 = Full Circle, 2-Speed, 08 = NPT, NC Valve-In-Head
(60°–120°)
8 = Full Circle, 2-Speed,
* Pressure Regulation available on
(180°–180°) Electric & NC VIH models only.
**
A = 150° ** Special arcs not available on
**
B = 165° Normally Closed (NC) models.
**
C = 195° § Pre-1998 models only.
**
D = 210°
Model Number Information
§
