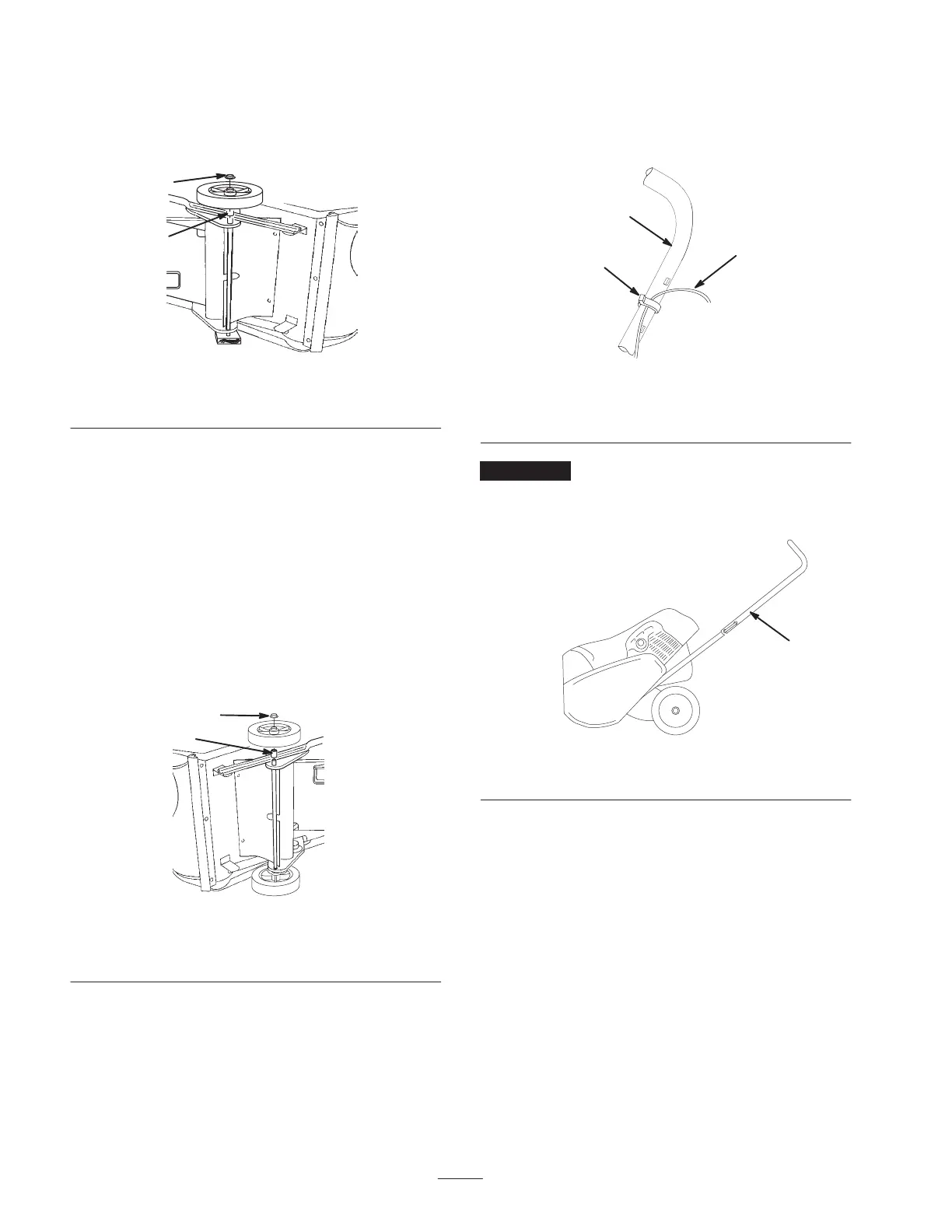

Installing the Wheels
1. Turn the snowthrower onto its left side and place a
wood block under the left axle end (Fig. 2).
m4498
2
1
Figure 2
1. Pushnut 2. Short spacer
2. Slide the short spacer and a wheel onto the right axle
end (Fig. 2).
Note: The side of the wheel with 6 spokes must face
downward.
3. Slide a pushnut onto the end of the axle (Fig. 2).
4. Strike the pushnut with a hammer to seat it firmly in
place.
5. Turn the snowthrower over onto its right side and place
a wood block under the right axle end.
6. Slide the long spacer and a wheel onto the left axle end
(Fig. 3).
m-4499
2
1
Figure 3
1. Long spacer 2. Pushnut
Note: The side of the wheel with 6 spokes must face
downward.
7. Repeat steps 3 and 4.
Installing the Handle
1. Cut the plastic tie that secures the control cable to the
handle (Fig. 4).
1
2
3
m5575
Figure 4
1. Handle
2. Plastic tie
3. Control cable
Important If you do not cut the plastic tie, the rotor
brake will not function properly.
2. Position the upper handle as shown in Figure 5.
m5516a
1
Figure 5
1. Upper handle
3. Loosely install the handle locks, curved washers, and
knobs as shown in Figure 6.
